Fig.2-2
Fig.2-1
(Fig.3)
Fig.2-3
Illustrations in this manual common use the image of
FV-11VHL2, and mark for FV-11VHL2 only, others are
same for FV-11VH2.

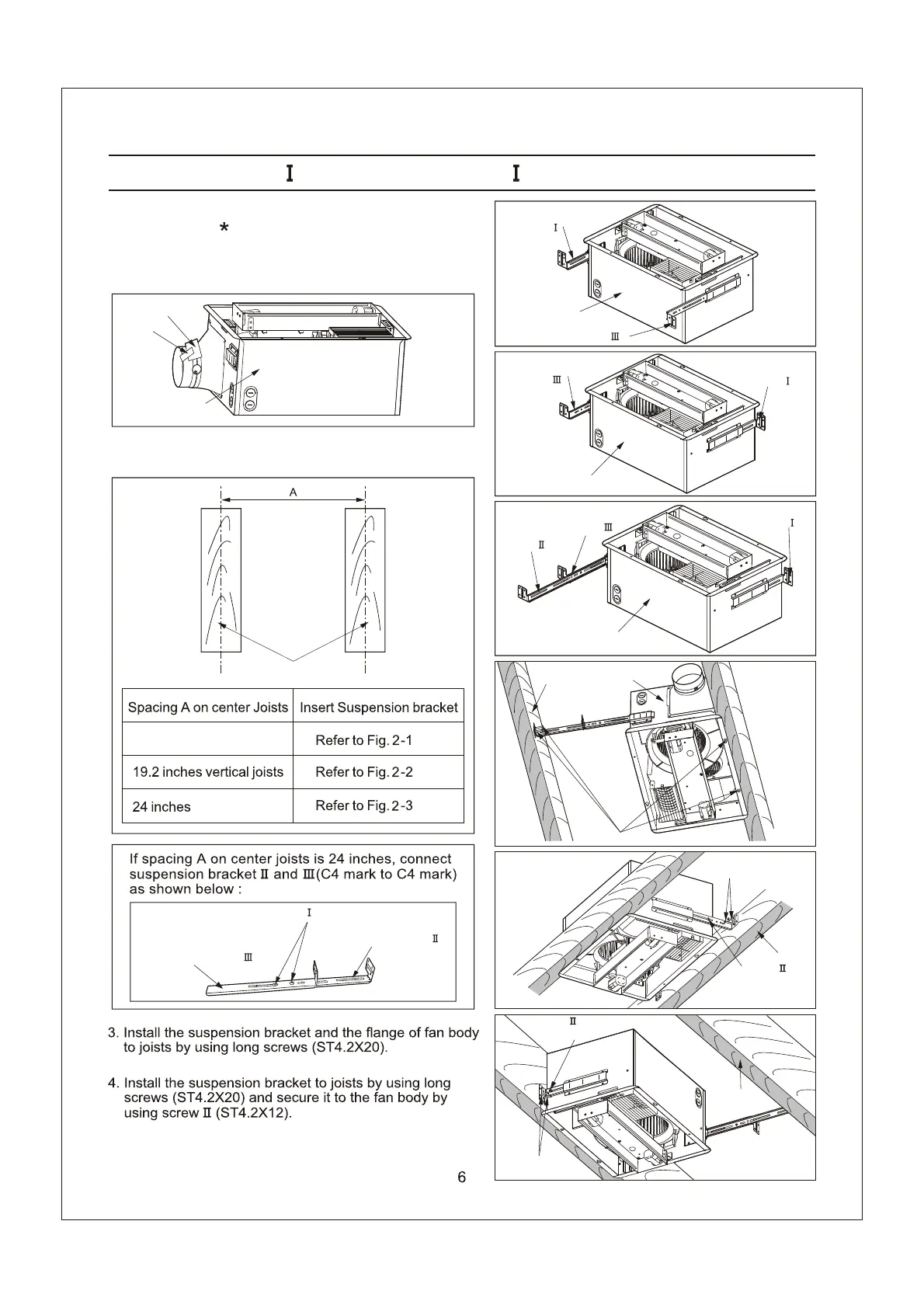

INSTALLATION (JOIST MOUNTING- )
Fig.3
Fan body
Suspension
bracket
Suspension
bracket
Suspension
bracket
Suspension
bracket
Fan body
Suspension
bracket
Suspension
bracket
Suspension
bracket
Fan body
Fan body
Joist
4 Long screws (ST4.2X20)
2 Screw (ST4.2X8)
Suspension bracket
Suspension bracket
2. Insert the suspension bracket into the fan body.
(Select the suspension bracket as shown below.)
Fig.1
Tape
Fan body
Warning label
Fig.4-2
Joist
2 Long screws
(ST4.2X20)
Screw
(ST4.2X12)
Joists
16 inches and 19.2 inches
horizontal joists
Fig.4-1
16 inches and 19.2 inches
horizontal joists refer to Fig.4-1, 19.2 inches vertical
joists and 24 inches refer to Fig.4-2.
Joist
2 Long screws
(ST4.2X20)
Screw
(ST4.2X12)
1. Before installation, remove warning lable and the tape
that is securing the adapter and the damper. (Fig.1)
