Fig.11
Fig.12
Fig.12
Fig.11
Illustrations in this manual common use the image of
FV-11VHL2.

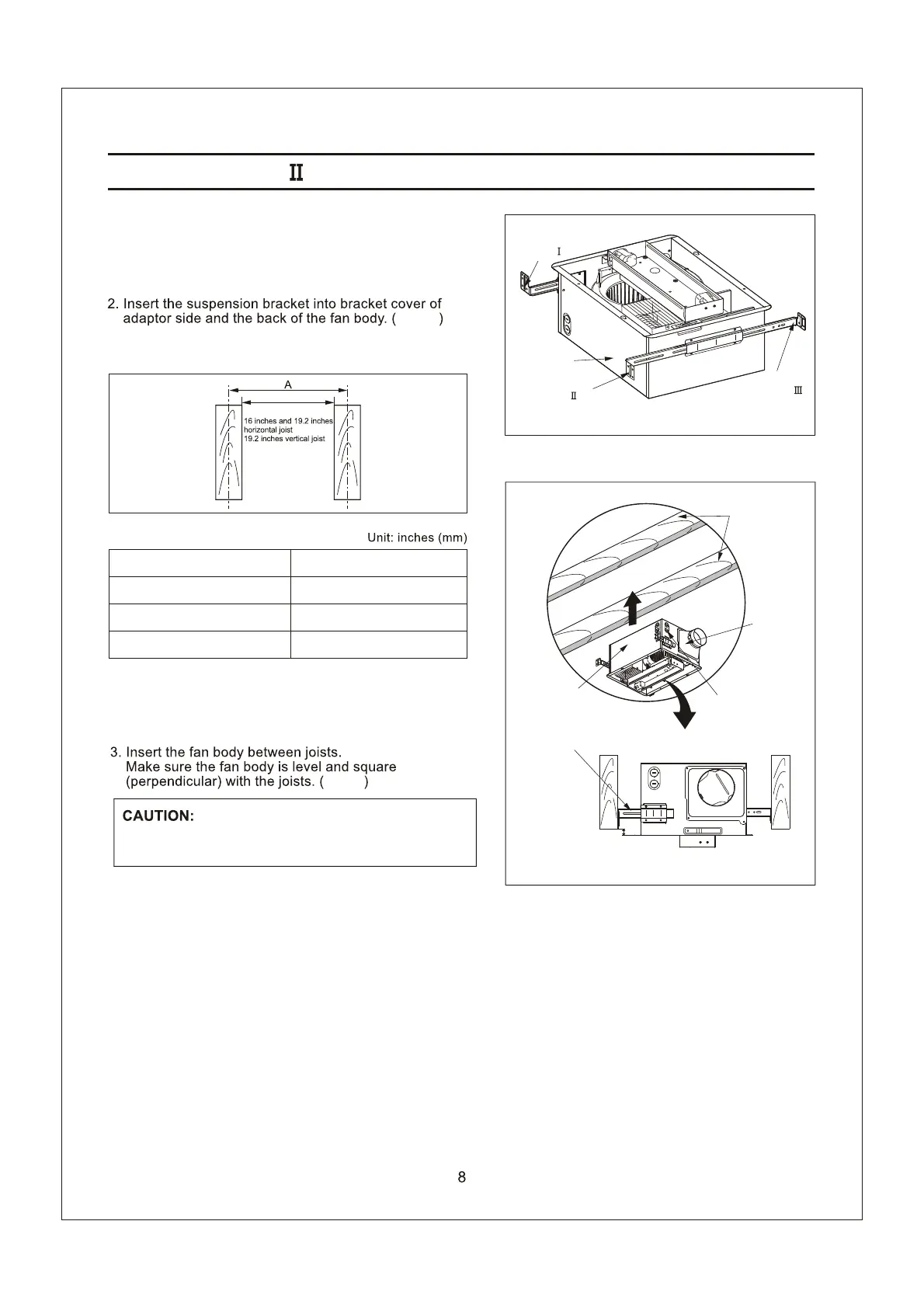

INSTALLATION (BETWEEN JOIST MOUNTING)
Suspension
bracket
Suspension
bracket
Suspension
bracket
Fan body
Fan body
Joists
Adaptor
Junction box
Suspension bracket
C
B
(Select the suspension bracket according to spacing A
as shown below.)
Spacing A on center joists
16 inches
19.2 inches horizontal joists
19.2 inches vertical joists
B
13 1/4 ~ 15 1/2 (336~394)
14 3/4 ~ 16 3/4 (374~425)
16 1/2 ~ 18 3/4 (419~476)
1. Before installation, remove warning lable and the tape
that is securing the adapter and the damper. (Fig.1)
Keep the distance C (1/2 inch, 12.7 mm) for the
thickness of ceiling board.
To Next Page
