Initial Setup
VHF/UHF
POWER
VIDEO IN
AUDIO IN
VOL CH
STOP/EJECT
REW/
PLAY/REPEAT
FF/
REC
TIMER/FM
ACTION
REC ON TIMER
PROG TIMER

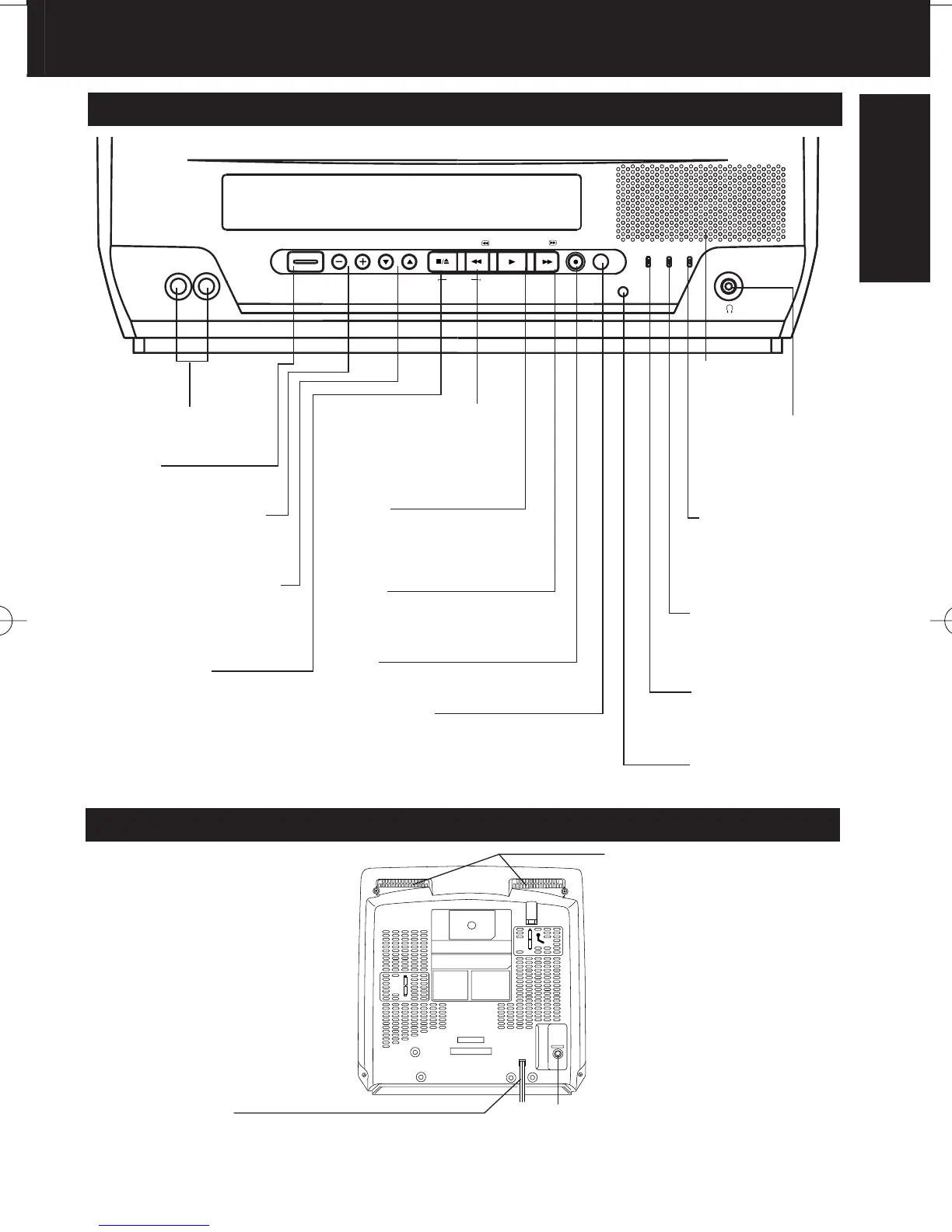

Front View of the Unit and Indicators
Rear View of the Unit
Built-In
Speaker
REWIND/SEARCH
See previous page.
ACTION
Press together with STOP.
PHONES Jack
Connect an
earphone or
headphones.
TIMER/FM
Sets a timer alarm up 60 min.
Enables FM Radio.
AC Power Plug
When plugged into an AC outlet, the
unit consumes 2.5 W of electric power
in OFF condition.
VHF/UHF Antenna Input Terminal
In from your Antenna or Cable (See
page 8).
AUDIO VIDEO IN Jack
For dubbing.
POWER
See previous page.
VOLUME UP/DOWN
SET/BACK SPACE
See previous page.
CHANNEL UP/DOWN
TRACKING UP/DOWN
SELECT UP/DOWN
See previous page.
STOP/EJECT
See previous page.
ACTION
Press together with
REW.
PLAY
See previous page.
REPEAT
Repeats a recording.
FAST
FORWARD/SEARCH
See previous page.
REC
See previous page.
PROG TIMER
Indicator
Lights when the
unit is set for
Timer Recording.
ON TIMER
Indicator
Lights when the
On-Timer is set.
REC Indicator
Lights during
recording.
Remote Sensor
Easy Grip-Handle
Use when transporting the
unit.
