Cylinder/Head Amp F.P.C. After servicing, be sure to place it
correctly. Refer to "Cylinder Unit" in "MECHANISM SECTION."
3. The LCD open/close SW. is for changing between LCD Display or
EVF Display. When turning on LCD Display, place some paper or
tape, etc. on LCD open/close SW. so that this SW. stays ON.
4. When servicing, avoid causing a from touching the component
side of the Battery Catcher Unit to the Main C.B.A.
5. Use a grounded ESD wrist strap while disassembling the Lens
portion.
6. Use extreme care when unplugging or plugging in connectors.

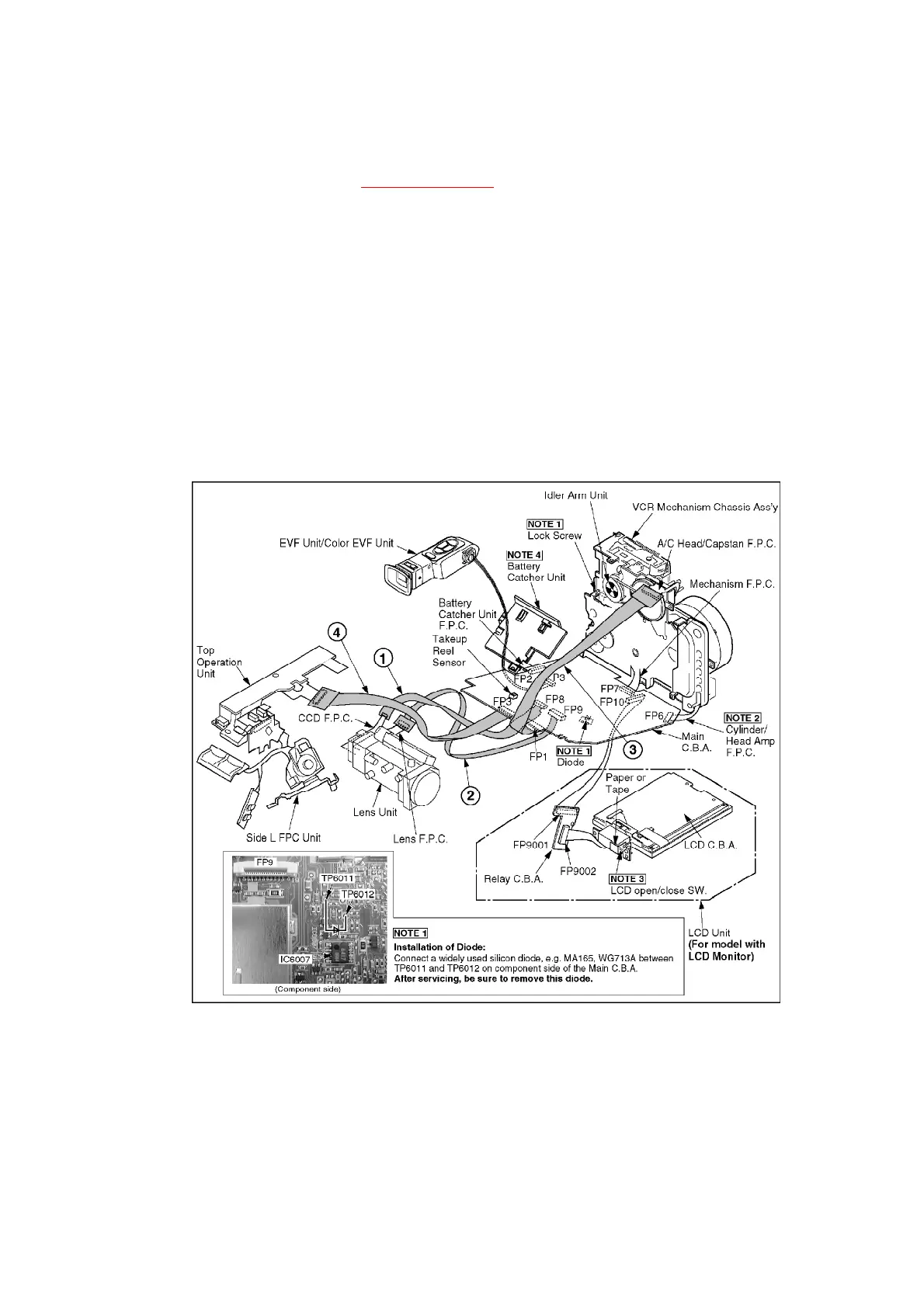

Fig. 1-1
6.1.2. INTERCONNECTION OF EXTENSION CABLES
Fig. 1-2
8
