4. SERVICE NOTES (PLEASE READ)
4.1. SELF-DIAGNOSIS INDICATION DISPLAY
This VCR has a self-diagnosis and display function.

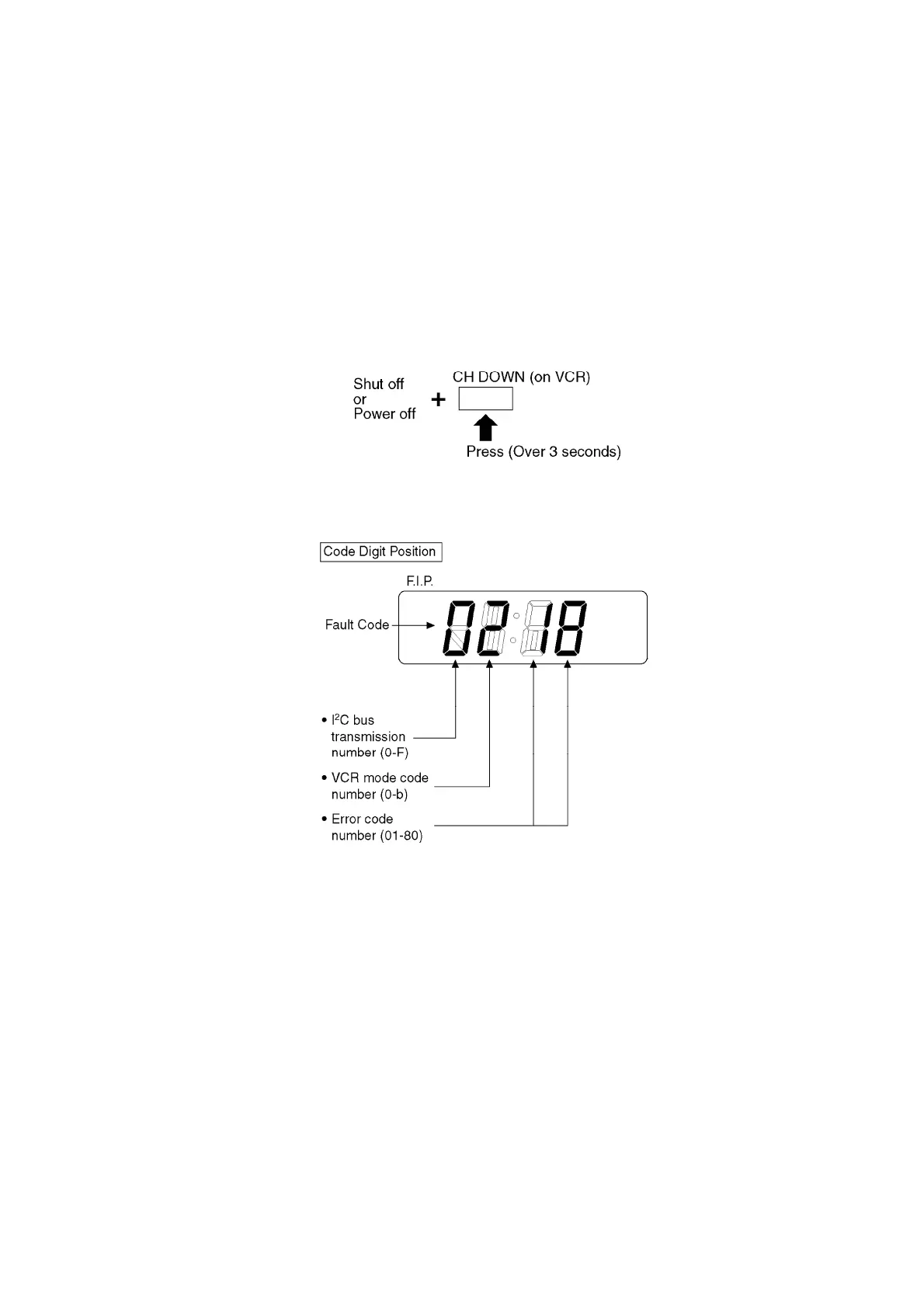

1. Keep pressing CH DOWN Button on VCR for over 3 seconds in Power
off condition, or keep pressing CH DOWN button on VCR in Shut off
condition.
Fig. 1-1
2. Fault code (4-digit number) will be displayed in F.I.P. as shown.
Fig. 1-2
4.1.1. Explanation of I
2
C bus transmission number
The condition of I
2
C bus transmission befor shut off is displayed.
Fig. 1-3
8
