7.3.7.1. EVR ADJUSTMENT ITEM
The following Items need to be adjusted for EVR adjustment.
- PG SHIFTER ADJUSTMENT
- SUB CONTRAST ADJUSTMENT
- CUT OFF, DRIVE ADJUSTMENT
- SUB COLOR/SUB TINT ADJUSTMENT
- V. HEIGHT/H. POSITION ADJUSTMENT
- WHITE BALANCE ADJUSTMENT
- SUB BRIGHTNESS ADJUSTMENT
7.3.7.2. HOW TO ENTER EVR ADJUSTMENT MODE
Press and hold STOP, PLAY, and VOL DOWN buttons on the unit together over 5 seconds with
no cassette inserted.
The adjustment overlay will appear.

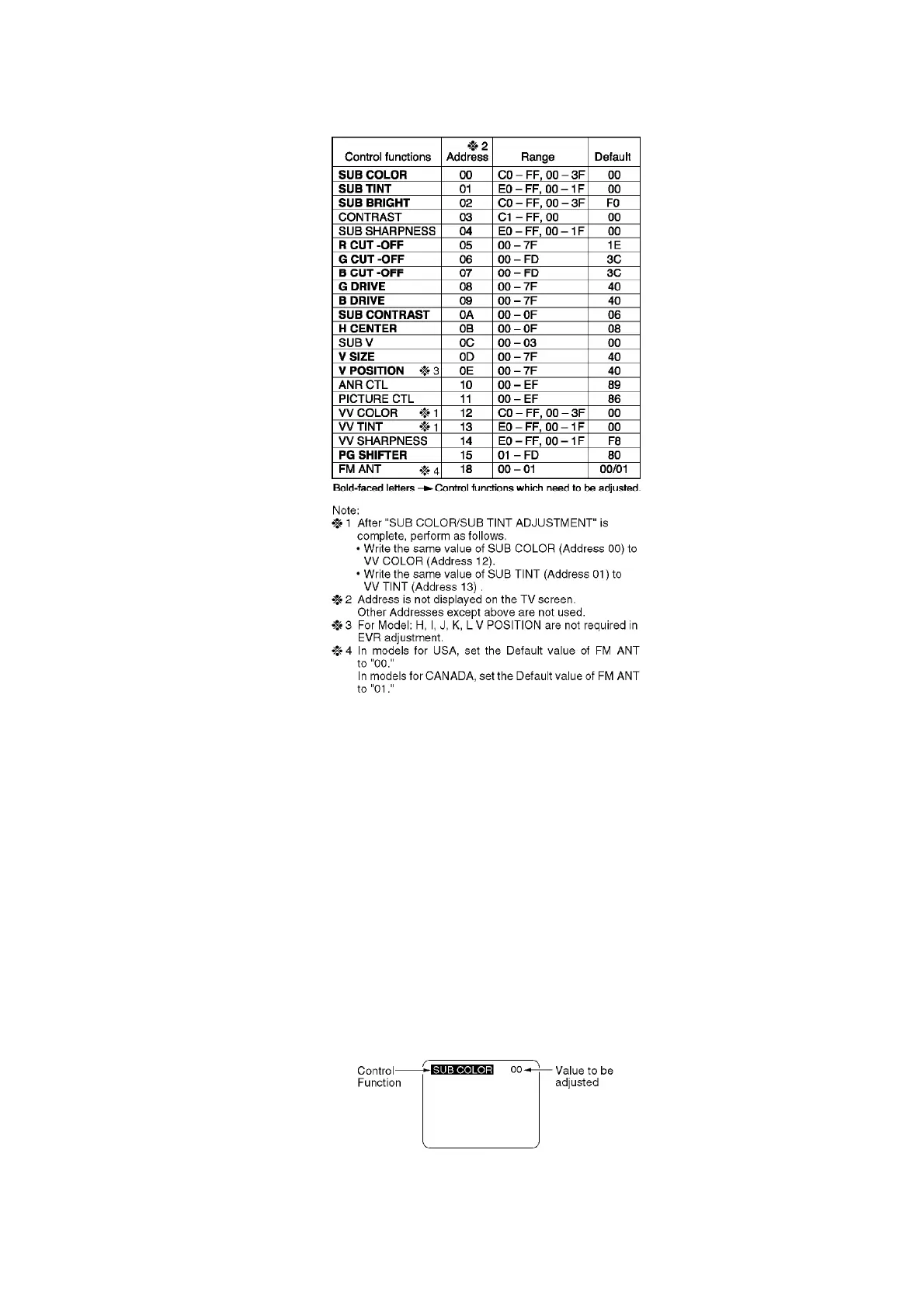

Fig. E5-1
62
