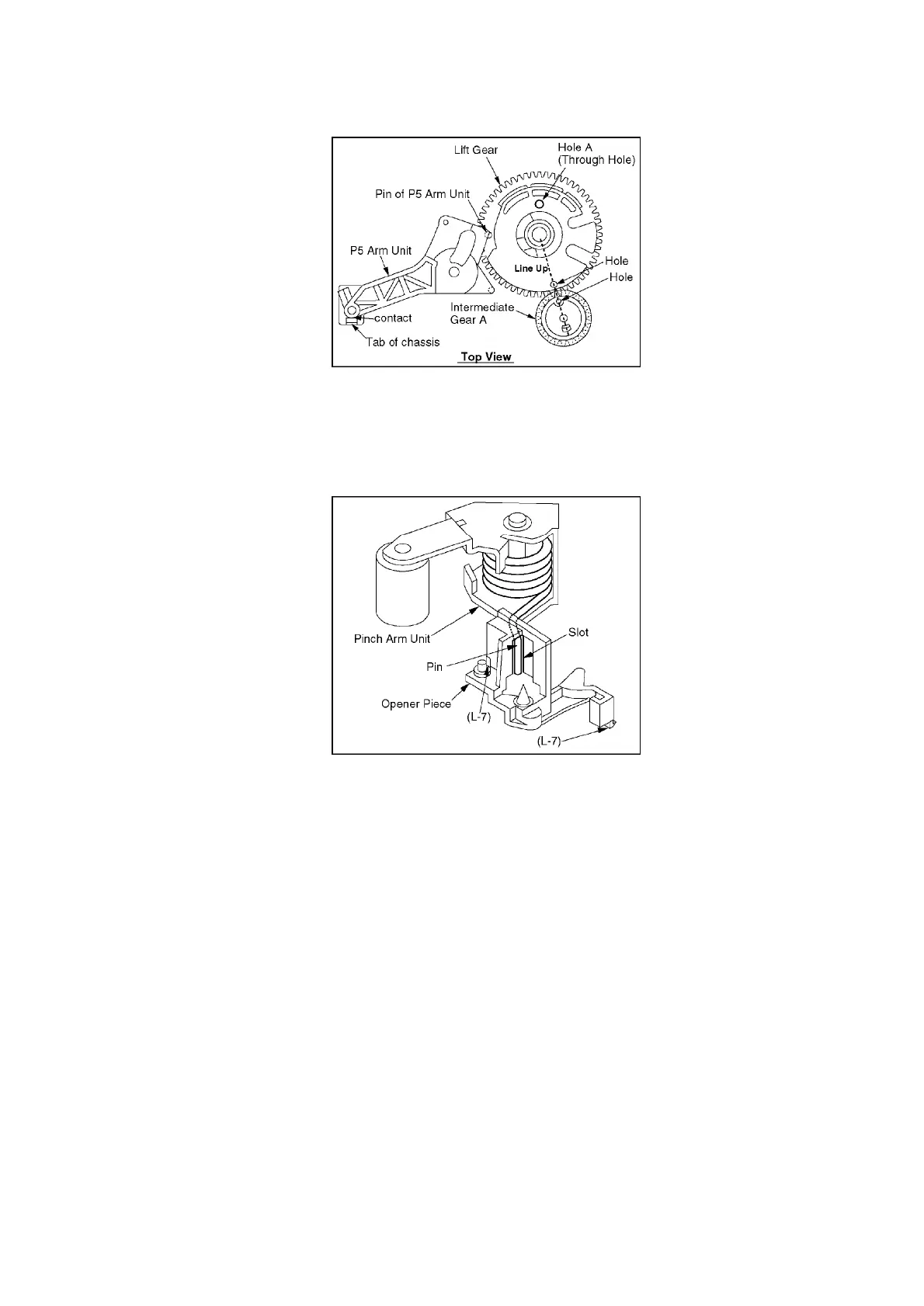

2. Installation of Opener Piece
A. Install the Opener Piece so that the slot of the Opener Piece is
inserted to the Pin of Pinch Arm Unit
Fig. J10-3
6.2.13. Motor Block Unit, Audio Control Head Unit, Lift Gear, Capstan Holder Unit,
Tension Arm Boss, and Cleaner Arm Unit (Model: A, H)
Fig. J11
43
