TRAN’S IC’S
Q369 E2 IC351 F2
DIODES TP’S
D354 F2 TPL1 E1
D355 F2 TPL2 E1
D356 F2 TPL3 E1
D360 F2 TPL4 F2
D361 F2 TPL5 F1
D362 F2 TPL6 F1
D363 E2 TPL7 F2
D365 E2
D375 E2

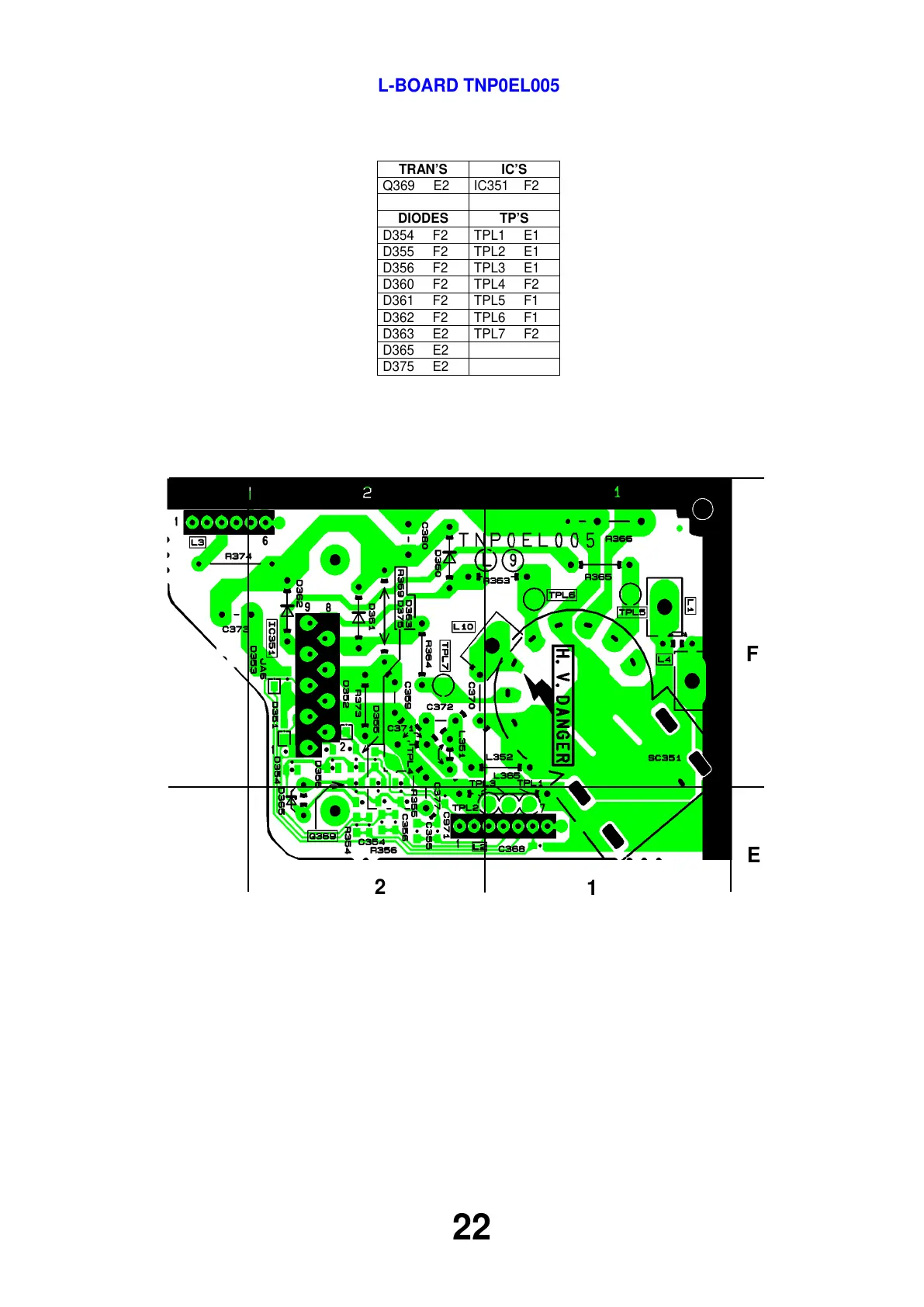

L-BOARD TNP0EL005
1
2
E
F
22
