Panasonic QuintrixF TX-21AP2F Service Manual

Components Identified by mark have special characteristics important for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type
number to your order.

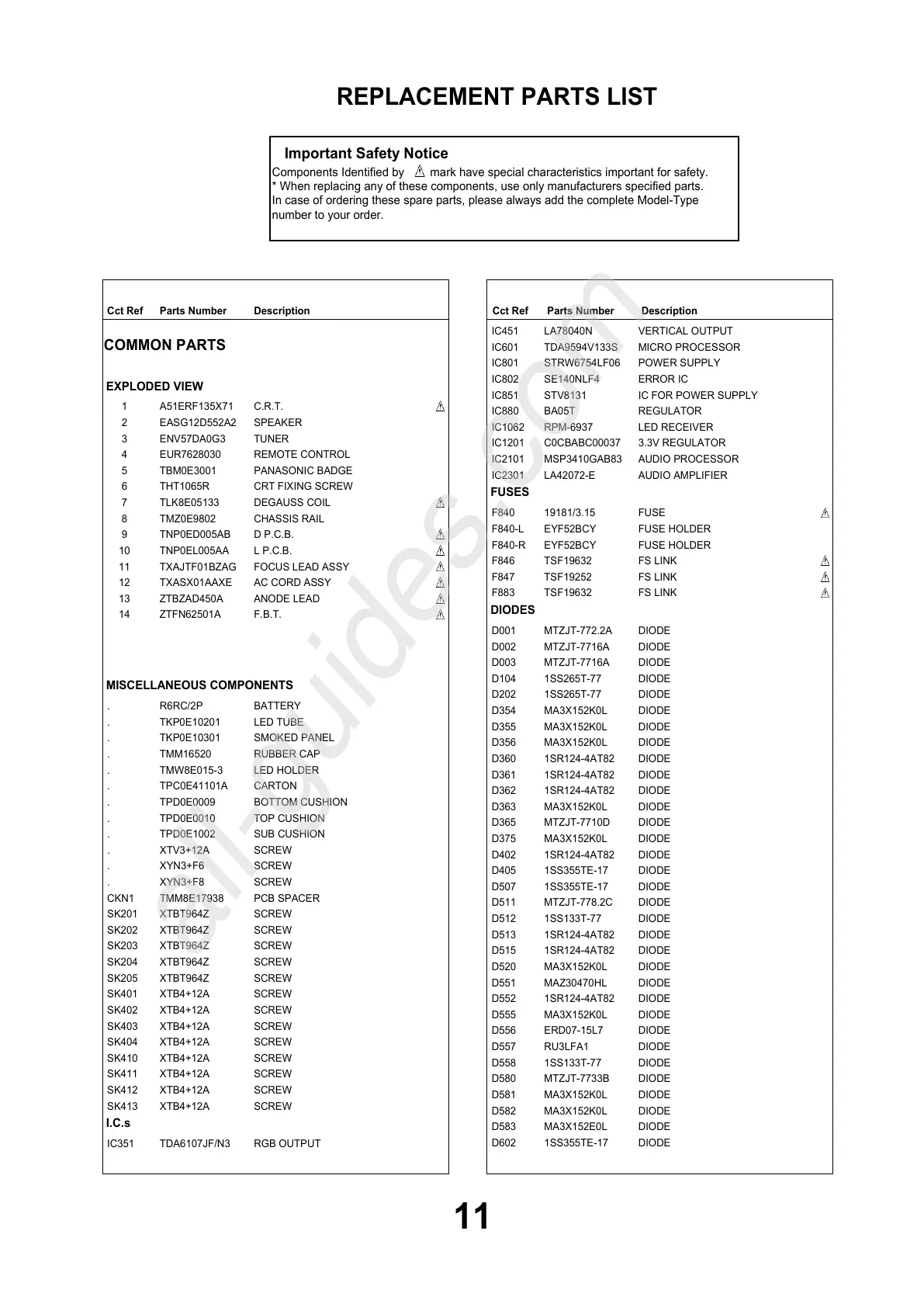

REPLACEMENT PARTS LIST
Important Safety Notice
DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
COMMON PARTS
EXPLODED VIEW
C.R.T. 1 A51ERF135X71
SPEAKER 2 EASG12D552A2
TUNER 3 ENV57DA0G3
REMOTE CONTROL 4 EUR7628030
PANASONIC BADGE 5 TBM0E3001
CRT FIXING SCREW 6 THT1065R
DEGAUSS COIL 7 TLK8E05133
CHASSIS RAIL 8 TMZ0E9802
D P.C.B. 9 TNP0ED005AB
L P.C.B. 10 TNP0EL005AA
FOCUS LEAD ASSY 11 TXAJTF01BZAG
AC CORD ASSY 12 TXASX01AAXE
ANODE LEAD 13 ZTBZAD450A
F.B.T. 14 ZTFN62501A
MISCELLANEOUS COMPONENTS
BATTERY . R6RC/2P
LED TUBE . TKP0E10201
SMOKED PANEL . TKP0E10301
RUBBER CAP . TMM16520
LED HOLDER . TMW8E015-3
CARTON . TPC0E41101A
BOTTOM CUSHION . TPD0E0009
TOP CUSHION . TPD0E0010
SUB CUSHION . TPD0E1002
SCREW . XTV3+12A
SCREW .XYN3+F6
SCREW .XYN3+F8
PCB SPACER CKN1 TMM8E17938
SCREW SK201 XTBT964Z
SCREW SK202 XTBT964Z
SCREW SK203 XTBT964Z
SCREW SK204 XTBT964Z
SCREW SK205 XTBT964Z
SCREW SK401 XTB4+12A
SCREW SK402 XTB4+12A
SCREW SK403 XTB4+12A
SCREW SK404 XTB4+12A
SCREW SK410 XTB4+12A
SCREW SK411 XTB4+12A
SCREW SK412 XTB4+12A
SCREW SK413 XTB4+12A
I.C.s
RGB OUTPUT IC351 TDA6107JF/N3
VERTICAL OUTPUT IC451 LA78040N
MICRO PROCESSOR IC601 TDA9594V133S
POWER SUPPLY IC801 STRW6754LF06
ERROR IC IC802 SE140NLF4
IC FOR POWER SUPPLYIC851 STV8131
REGULATOR IC880 BA05T
LED RECEIVER IC1062 RPM-6937
3.3V REGULATOR IC1201 C0CBABC00037
AUDIO PROCESSOR IC2101 MSP3410GAB83
AUDIO AMPLIFIER IC2301 LA42072-E
FUSES
FUSE F840 19181/3.15
FUSE HOLDER F840-L EYF52BCY
FUSE HOLDER F840-R EYF52BCY
FS LINK F846 TSF19632
FS LINK F847 TSF19252
FS LINK F883 TSF19632
DIODES
DIODE D001 MTZJT-772.2A
DIODE D002 MTZJT-7716A
DIODE D003 MTZJT-7716A
DIODE D104 1SS265T-77
DIODE D202 1SS265T-77
DIODE D354 MA3X152K0L
DIODE D355 MA3X152K0L
DIODE D356 MA3X152K0L
DIODE D360 1SR124-4AT82
DIODE D361 1SR124-4AT82
DIODE D362 1SR124-4AT82
DIODE D363 MA3X152K0L
DIODE D365 MTZJT-7710D
DIODE D375 MA3X152K0L
DIODE D402 1SR124-4AT82
DIODED405 1SS355TE-17
DIODED507 1SS355TE-17
DIODE D511 MTZJT-778.2C
DIODE D512 1SS133T-77
DIODE D513 1SR124-4AT82
DIODE D515 1SR124-4AT82
DIODE D520 MA3X152K0L
DIODE D551 MAZ30470HL
DIODE D552 1SR124-4AT82
DIODE D555 MA3X152K0L
DIODE D556 ERD07-15L7
DIODE D557 RU3LFA1
DIODE D558 1SS133T-77
DIODE D580 MTZJT-7733B
DIODE D581 MA3X152K0L
DIODE D582 MA3X152K0L
DIODE D583 MA3X152E0L
DIODED602 1SS355TE-17
11
