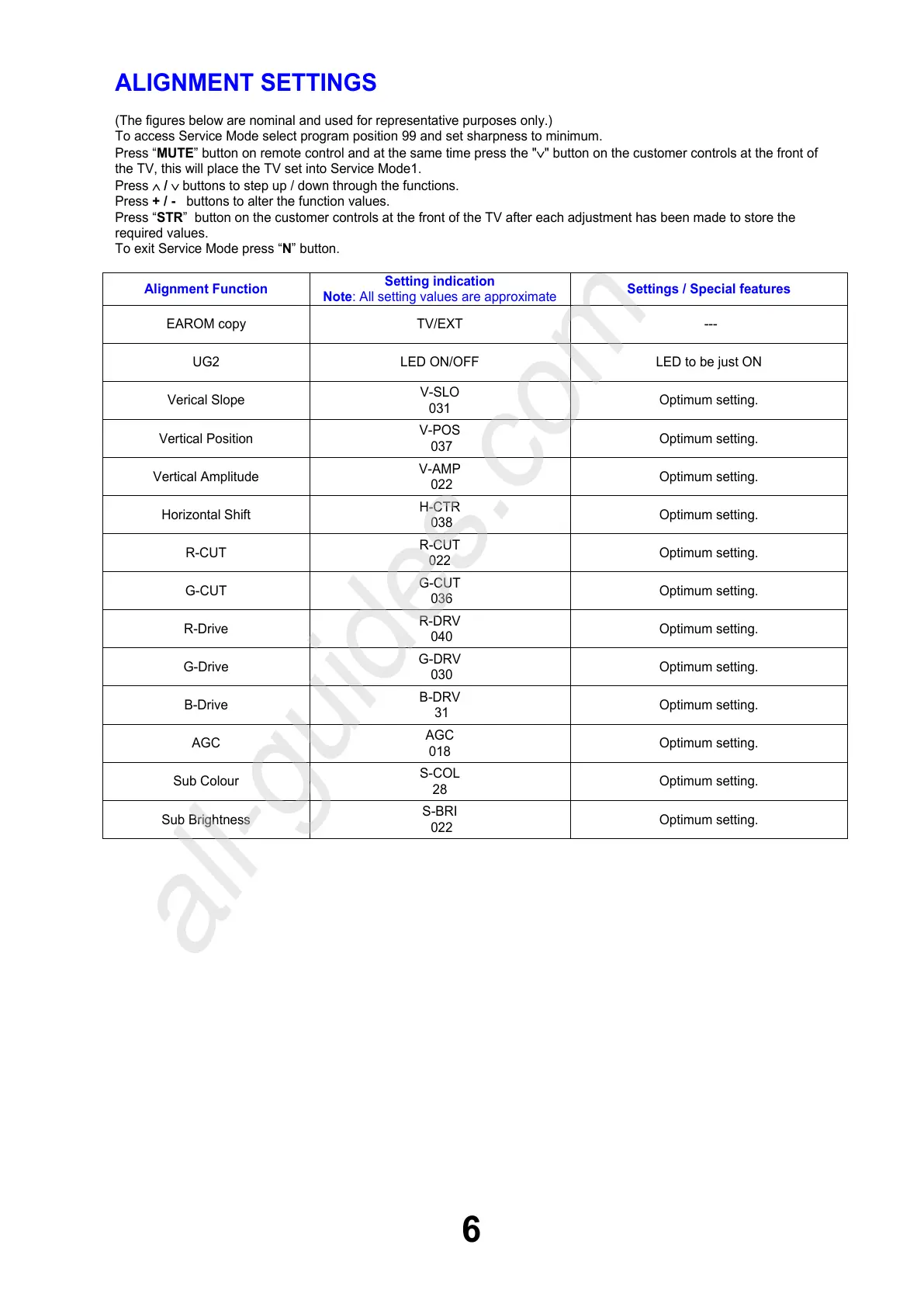

ALIGNMENT SETTINGS
(The figures below are nominal and used for representative purposes only.)
To access Service Mode select program position 99 and set sharpness to minimum.
Press “MUTE” button on remote control and at the same time press the "∨" button on the customer controls at the front of
the TV, this will place the TV set into Service Mode1.
Press ∧ / ∨ buttons to step up / down through the functions.
Press + / - buttons to alter the function values.
Press “STR” button on the customer controls at the front of the TV after each adjustment has been made to store the
required values.
To exit Service Mode press “N” button.
Alignment Function
Setting indication
Note: All setting values are approximate
Settings / Special features
EAROM copy TV/EXT ---
UG2 LED ON/OFF LED to be just ON
Verical Slope
V-SLO
031
Optimum setting.
Vertical Position
V-POS
037
Optimum setting.
Vertical Amplitude
V-AMP
022
Optimum setting.
Horizontal Shift
H-CTR
038
Optimum setting.
R-CUT
R-CUT
022
Optimum setting.
G-CUT
G-CUT
036
Optimum setting.
R-Drive
R-DRV
040
Optimum setting.
G-Drive
G-DRV
030
Optimum setting.
B-Drive
B-DRV
31
Optimum setting.
AGC
AGC
018
Optimum setting.
Sub Colour
S-COL
28
Optimum setting.
Sub Brightness
S-BRI
022
Optimum setting.
6
