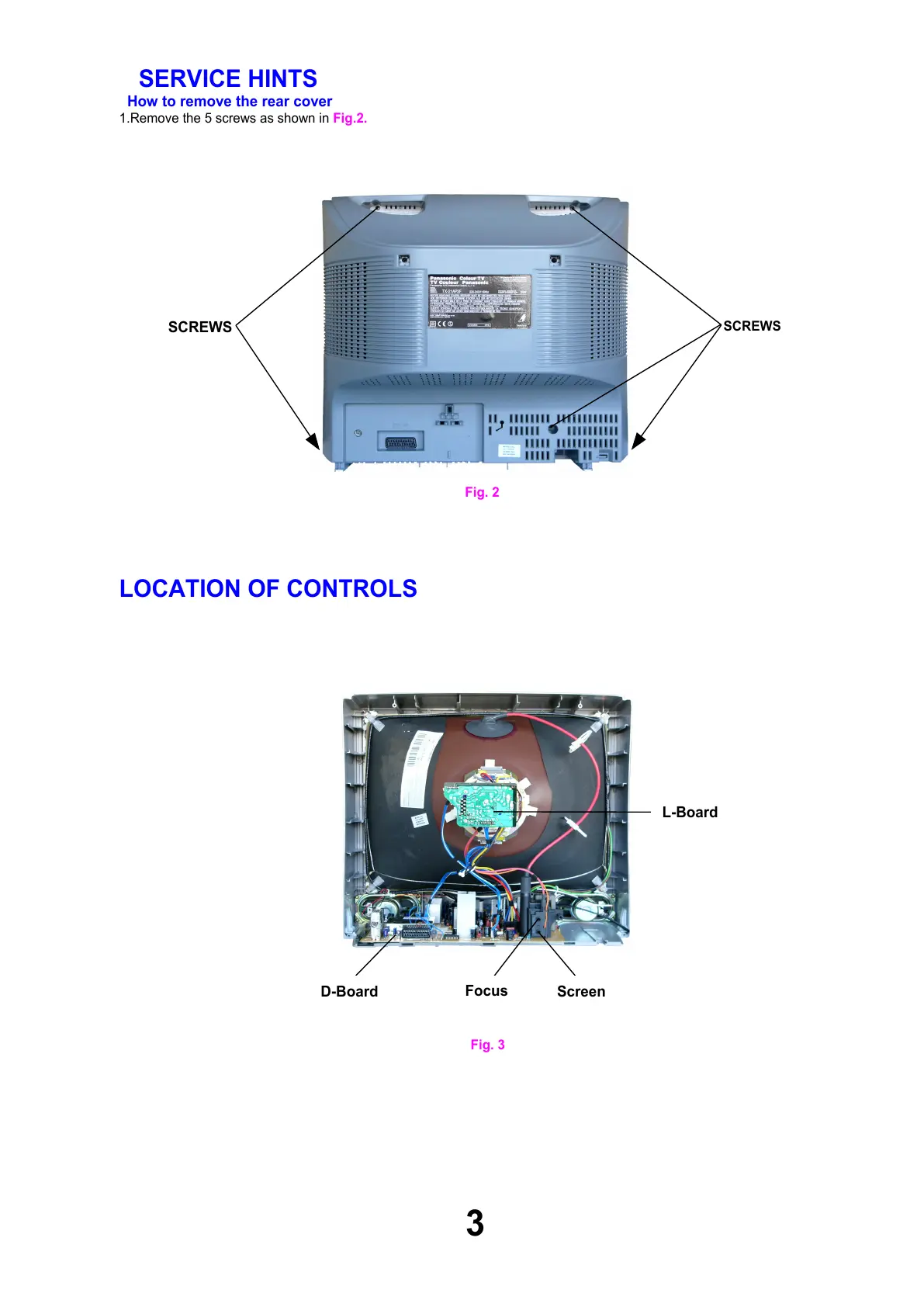

SERVICE HINTS
How to remove the rear cover
1.Remove the 5 screws as shown in Fig.2.
LOCATION OF CONTROLS
3
Fig. 2
Fig. 3
SCREWS
SCREWS
D-Board
Focus
Screen
L-Board
