Panasonic QuintrixF TX-21AP2F Service Manual

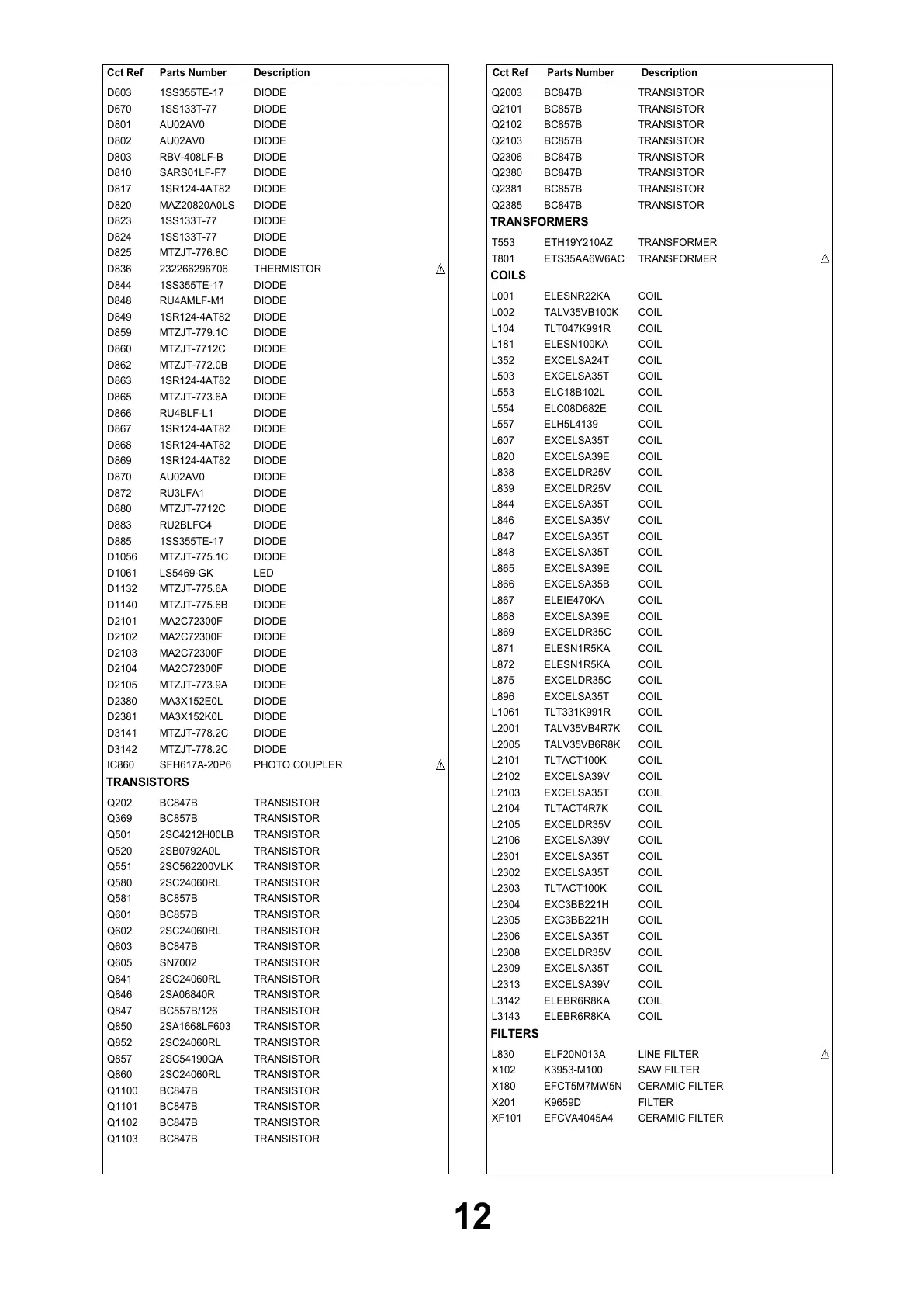

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
DIODED603 1SS355TE-17
DIODE D670 1SS133T-77
DIODE D801 AU02AV0
DIODE D802 AU02AV0
DIODE D803 RBV-408LF-B
DIODE D810 SARS01LF-F7
DIODE D817 1SR124-4AT82
DIODE D820 MAZ20820A0LS
DIODE D823 1SS133T-77
DIODE D824 1SS133T-77
DIODE D825 MTZJT-776.8C
THERMISTOR D836 232266296706
DIODED844 1SS355TE-17
DIODE D848 RU4AMLF-M1
DIODE D849 1SR124-4AT82
DIODE D859 MTZJT-779.1C
DIODE D860 MTZJT-7712C
DIODE D862 MTZJT-772.0B
DIODE D863 1SR124-4AT82
DIODE D865 MTZJT-773.6A
DIODE D866 RU4BLF-L1
DIODE D867 1SR124-4AT82
DIODE D868 1SR124-4AT82
DIODE D869 1SR124-4AT82
DIODE D870 AU02AV0
DIODE D872 RU3LFA1
DIODE D880 MTZJT-7712C
DIODE D883 RU2BLFC4
DIODED885 1SS355TE-17
DIODE D1056 MTZJT-775.1C
LED D1061 LS5469-GK
DIODE D1132 MTZJT-775.6A
DIODE D1140 MTZJT-775.6B
DIODE D2101 MA2C72300F
DIODE D2102 MA2C72300F
DIODE D2103 MA2C72300F
DIODE D2104 MA2C72300F
DIODE D2105 MTZJT-773.9A
DIODE D2380 MA3X152E0L
DIODE D2381 MA3X152K0L
DIODE D3141 MTZJT-778.2C
DIODE D3142 MTZJT-778.2C
PHOTO COUPLER IC860 SFH617A-20P6
TRANSISTORS
TRANSISTOR Q202 BC847B
TRANSISTOR Q369 BC857B
TRANSISTOR Q501 2SC4212H00LB
TRANSISTOR Q520 2SB0792A0L
TRANSISTOR Q551 2SC562200VLK
TRANSISTOR Q580 2SC24060RL
TRANSISTOR Q581 BC857B
TRANSISTOR Q601 BC857B
TRANSISTOR Q602 2SC24060RL
TRANSISTOR Q603 BC847B
TRANSISTOR Q605 SN7002
TRANSISTOR Q841 2SC24060RL
TRANSISTOR Q846 2SA06840R
TRANSISTOR Q847 BC557B/126
TRANSISTOR Q850 2SA1668LF603
TRANSISTOR Q852 2SC24060RL
TRANSISTOR Q857 2SC54190QA
TRANSISTOR Q860 2SC24060RL
TRANSISTOR Q1100 BC847B
TRANSISTOR Q1101 BC847B
TRANSISTOR Q1102 BC847B
TRANSISTOR Q1103 BC847B
TRANSISTOR Q2003 BC847B
TRANSISTOR Q2101 BC857B
TRANSISTOR Q2102 BC857B
TRANSISTOR Q2103 BC857B
TRANSISTOR Q2306 BC847B
TRANSISTOR Q2380 BC847B
TRANSISTOR Q2381 BC857B
TRANSISTOR Q2385 BC847B
TRANSFORMERS
TRANSFORMER T553 ETH19Y210AZ
TRANSFORMER T801 ETS35AA6W6AC
COILS
COIL L001 ELESNR22KA
COIL L002 TALV35VB100K
COILL104 TLT047K991R
COIL L181 ELESN100KA
COIL L352 EXCELSA24T
COILL503 EXCELSA35T
COIL L553 ELC18B102L
COIL L554 ELC08D682E
COIL L557 ELH5L4139
COILL607 EXCELSA35T
COIL L820 EXCELSA39E
COILL838 EXCELDR25V
COILL839 EXCELDR25V
COILL844 EXCELSA35T
COIL L846 EXCELSA35V
COILL847 EXCELSA35T
COILL848 EXCELSA35T
COIL L865 EXCELSA39E
COILL866 EXCELSA35B
COIL L867 ELEIE470KA
COIL L868 EXCELSA39E
COILL869 EXCELDR35C
COIL L871 ELESN1R5KA
COIL L872 ELESN1R5KA
COILL875 EXCELDR35C
COILL896 EXCELSA35T
COIL L1061 TLT331K991R
COIL L2001 TALV35VB4R7K
COIL L2005 TALV35VB6R8K
COIL L2101 TLTACT100K
COILL2102 EXCELSA39V
COILL2103 EXCELSA35T
COIL L2104 TLTACT4R7K
COILL2105 EXCELDR35V
COILL2106 EXCELSA39V
COILL2301 EXCELSA35T
COILL2302 EXCELSA35T
COIL L2303 TLTACT100K
COIL L2304 EXC3BB221H
COIL L2305 EXC3BB221H
COILL2306 EXCELSA35T
COILL2308 EXCELDR35V
COILL2309 EXCELSA35T
COILL2313 EXCELSA39V
COILL3142 ELEBR6R8KA
COILL3143 ELEBR6R8KA
FILTERS
LINE FILTER L830 ELF20N013A
SAW FILTERX102 K3953-M100
CERAMIC FILTER X180 EFCT5M7MW5N
FILTER X201 K9659D
CERAMIC FILTER XF101 EFCVA4045A4
12
