Panasonic QuintrixF TX-21AP2F Service Manual

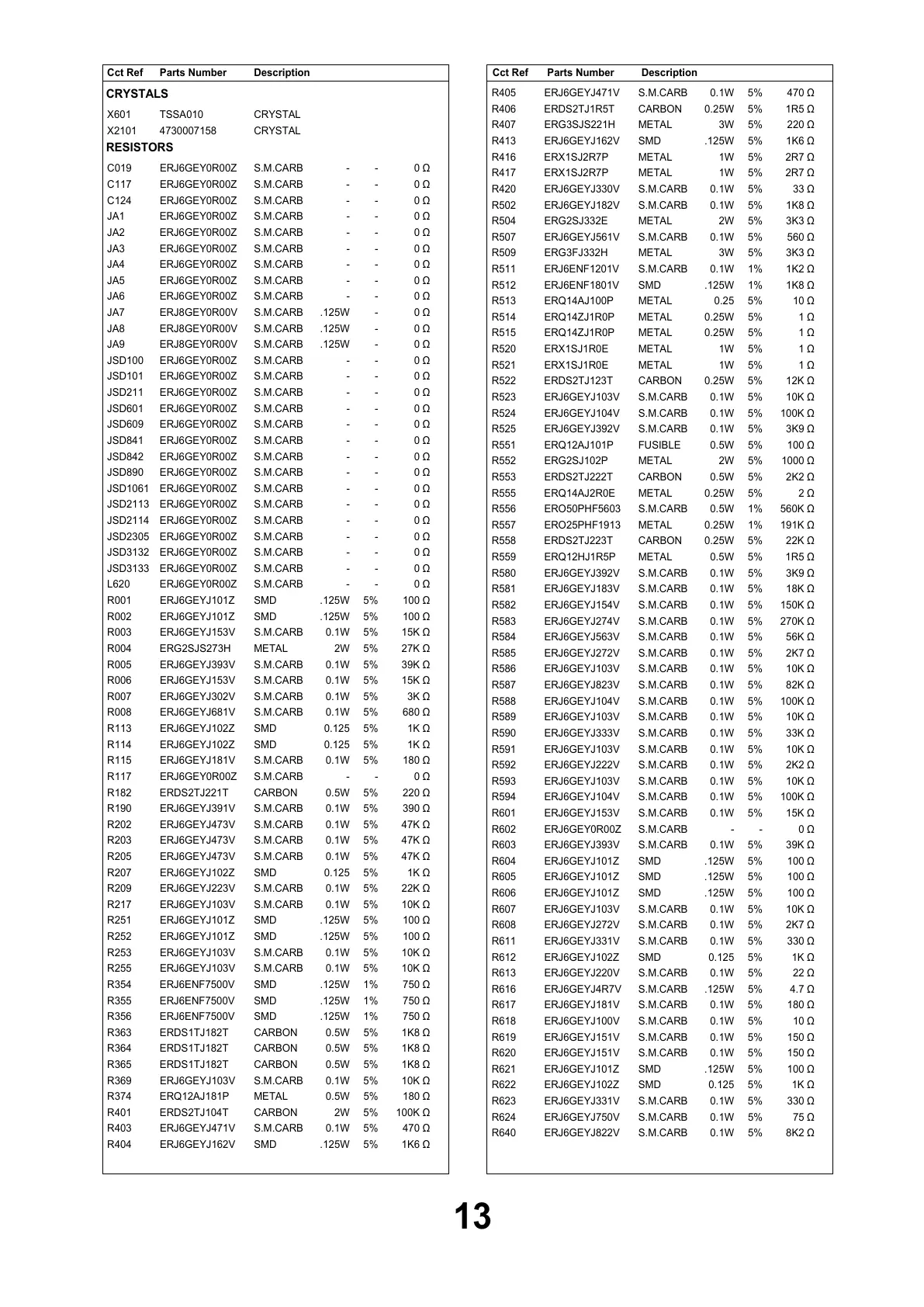

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
CRYSTALS
CRYSTAL X601 TSSA010
CRYSTAL X2101 4730007158
RESISTORS
S.M.CARBC019 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBC117 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBC124 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJA1 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJA2 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJA3 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJA4 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJA5 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJA6 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJA7 ERJ8GEY0R00V .125W - 0 Ω
S.M.CARBJA8 ERJ8GEY0R00V .125W - 0 Ω
S.M.CARBJA9 ERJ8GEY0R00V .125W - 0 Ω
S.M.CARBJSD100 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD101 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD211 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD601 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD609 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD841 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD842 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD890 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD1061 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD2113 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD2114 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD2305 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD3132 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBJSD3133 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBL620 ERJ6GEY0R00Z - - 0 Ω
SMDR001 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR002 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR003 ERJ6GEYJ153V 0.1W 5% 15K Ω
METALR004 ERG2SJS273H 2W 5% 27K Ω
S.M.CARBR005 ERJ6GEYJ393V 0.1W 5% 39K Ω
S.M.CARBR006 ERJ6GEYJ153V 0.1W 5% 15K Ω
S.M.CARBR007 ERJ6GEYJ302V 0.1W 5% 3K Ω
S.M.CARBR008 ERJ6GEYJ681V 0.1W 5% 680 Ω
SMDR113 ERJ6GEYJ102Z 0.125 5% 1K Ω
SMDR114 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR115 ERJ6GEYJ181V 0.1W 5% 180 Ω
S.M.CARBR117 ERJ6GEY0R00Z - - 0 Ω
CARBONR182 ERDS2TJ221T 0.5W 5% 220 Ω
S.M.CARBR190 ERJ6GEYJ391V 0.1W 5% 390 Ω
S.M.CARBR202 ERJ6GEYJ473V 0.1W 5% 47K Ω
S.M.CARBR203 ERJ6GEYJ473V 0.1W 5% 47K Ω
S.M.CARBR205 ERJ6GEYJ473V 0.1W 5% 47K Ω
SMDR207 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR209 ERJ6GEYJ223V 0.1W 5% 22K Ω
S.M.CARBR217 ERJ6GEYJ103V 0.1W 5% 10K Ω
SMDR251 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR252 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR253 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR255 ERJ6GEYJ103V 0.1W 5% 10K Ω
SMDR354 ERJ6ENF7500V .125W 1% 750 Ω
SMDR355 ERJ6ENF7500V .125W 1% 750 Ω
SMDR356 ERJ6ENF7500V .125W 1% 750 Ω
CARBONR363 ERDS1TJ182T 0.5W 5% 1K8 Ω
CARBONR364 ERDS1TJ182T 0.5W 5% 1K8 Ω
CARBONR365 ERDS1TJ182T 0.5W 5% 1K8 Ω
S.M.CARBR369 ERJ6GEYJ103V 0.1W 5% 10K Ω
METALR374 ERQ12AJ181P 0.5W 5% 180 Ω
CARBONR401 ERDS2TJ104T 2W 5% 100K Ω
S.M.CARBR403 ERJ6GEYJ471V 0.1W 5% 470 Ω
SMDR404 ERJ6GEYJ162V .125W 5% 1K6 Ω
S.M.CARBR405 ERJ6GEYJ471V 0.1W 5% 470 Ω
CARBONR406 ERDS2TJ1R5T 0.25W 5% 1R5 Ω
METALR407 ERG3SJS221H 3W 5% 220 Ω
SMDR413 ERJ6GEYJ162V .125W 5% 1K6 Ω
METALR416 ERX1SJ2R7P 1W 5% 2R7 Ω
METALR417 ERX1SJ2R7P 1W 5% 2R7 Ω
S.M.CARBR420 ERJ6GEYJ330V 0.1W 5% 33 Ω
S.M.CARBR502 ERJ6GEYJ182V 0.1W 5% 1K8 Ω
METALR504 ERG2SJ332E 2W 5% 3K3 Ω
S.M.CARBR507 ERJ6GEYJ561V 0.1W 5% 560 Ω
METALR509 ERG3FJ332H 3W 5% 3K3 Ω
S.M.CARBR511 ERJ6ENF1201V 0.1W 1% 1K2 Ω
SMDR512 ERJ6ENF1801V .125W 1% 1K8 Ω
METALR513 ERQ14AJ100P 0.25 5% 10 Ω
METALR514 ERQ14ZJ1R0P 0.25W 5% 1 Ω
METALR515 ERQ14ZJ1R0P 0.25W 5% 1 Ω
METALR520 ERX1SJ1R0E 1W 5% 1 Ω
METALR521 ERX1SJ1R0E 1W 5% 1 Ω
CARBONR522 ERDS2TJ123T 0.25W 5% 12K Ω
S.M.CARBR523 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR524 ERJ6GEYJ104V 0.1W 5% 100K Ω
S.M.CARBR525 ERJ6GEYJ392V 0.1W 5% 3K9 Ω
FUSIBLER551 ERQ12AJ101P 0.5W 5% 100 Ω
METALR552 ERG2SJ102P 2W 5% 1000 Ω
CARBONR553 ERDS2TJ222T 0.5W 5% 2K2 Ω
METALR555 ERQ14AJ2R0E 0.25W 5% 2 Ω
S.M.CARBR556 ERO50PHF5603 0.5W 1% 560K Ω
METALR557 ERO25PHF1913 0.25W 1% 191K Ω
CARBONR558 ERDS2TJ223T 0.25W 5% 22K Ω
METALR559 ERQ12HJ1R5P 0.5W 5% 1R5 Ω
S.M.CARBR580 ERJ6GEYJ392V 0.1W 5% 3K9 Ω
S.M.CARBR581 ERJ6GEYJ183V 0.1W 5% 18K Ω
S.M.CARBR582 ERJ6GEYJ154V 0.1W 5% 150K Ω
S.M.CARBR583 ERJ6GEYJ274V 0.1W 5% 270K Ω
S.M.CARBR584 ERJ6GEYJ563V 0.1W 5% 56K Ω
S.M.CARBR585 ERJ6GEYJ272V 0.1W 5% 2K7 Ω
S.M.CARBR586 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR587 ERJ6GEYJ823V 0.1W 5% 82K Ω
S.M.CARBR588 ERJ6GEYJ104V 0.1W 5% 100K Ω
S.M.CARBR589 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR590 ERJ6GEYJ333V 0.1W 5% 33K Ω
S.M.CARBR591 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR592 ERJ6GEYJ222V 0.1W 5% 2K2 Ω
S.M.CARBR593 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR594 ERJ6GEYJ104V 0.1W 5% 100K Ω
S.M.CARBR601 ERJ6GEYJ153V 0.1W 5% 15K Ω
S.M.CARBR602 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBR603 ERJ6GEYJ393V 0.1W 5% 39K Ω
SMDR604 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR605 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR606 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR607 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR608 ERJ6GEYJ272V 0.1W 5% 2K7 Ω
S.M.CARBR611 ERJ6GEYJ331V 0.1W 5% 330 Ω
SMDR612 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR613 ERJ6GEYJ220V 0.1W 5% 22 Ω
S.M.CARBR616 ERJ6GEYJ4R7V .125W 5% 4.7 Ω
S.M.CARBR617 ERJ6GEYJ181V 0.1W 5% 180 Ω
S.M.CARBR618 ERJ6GEYJ100V 0.1W 5% 10 Ω
S.M.CARBR619 ERJ6GEYJ151V 0.1W 5% 150 Ω
S.M.CARBR620 ERJ6GEYJ151V 0.1W 5% 150 Ω
SMDR621 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR622 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR623 ERJ6GEYJ331V 0.1W 5% 330 Ω
S.M.CARBR624 ERJ6GEYJ750V 0.1W 5% 75 Ω
S.M.CARBR640 ERJ6GEYJ822V 0.1W 5% 8K2 Ω
