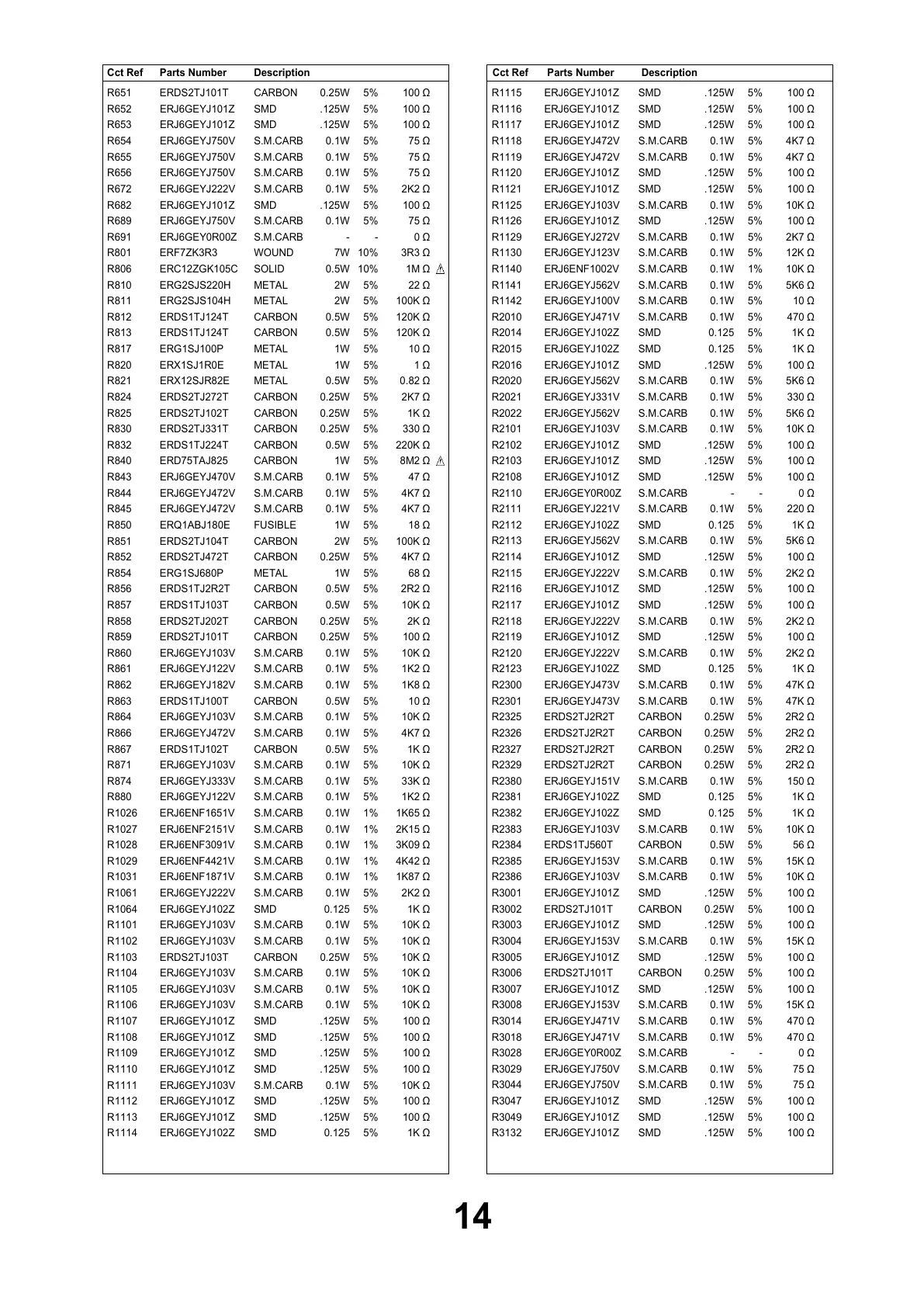

Panasonic QuintrixF TX-21AP2F Service Manual

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
CARBONR651 ERDS2TJ101T 0.25W 5% 100 Ω
SMDR652 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR653 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR654 ERJ6GEYJ750V 0.1W 5% 75 Ω
S.M.CARBR655 ERJ6GEYJ750V 0.1W 5% 75 Ω
S.M.CARBR656 ERJ6GEYJ750V 0.1W 5% 75 Ω
S.M.CARBR672 ERJ6GEYJ222V 0.1W 5% 2K2 Ω
SMDR682 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR689 ERJ6GEYJ750V 0.1W 5% 75 Ω
S.M.CARBR691 ERJ6GEY0R00Z - - 0 Ω
WOUNDR801 ERF7ZK3R3 7W 10% 3R3 Ω
SOLIDR806 ERC12ZGK105C 0.5W 10% 1M Ω
METALR810 ERG2SJS220H 2W 5% 22 Ω
METALR811 ERG2SJS104H 2W 5% 100K Ω
CARBONR812 ERDS1TJ124T 0.5W 5% 120K Ω
CARBONR813 ERDS1TJ124T 0.5W 5% 120K Ω
METALR817 ERG1SJ100P 1W 5% 10 Ω
METALR820 ERX1SJ1R0E 1W 5% 1 Ω
METALR821 ERX12SJR82E 0.5W 5% 0.82 Ω
CARBONR824 ERDS2TJ272T 0.25W 5% 2K7 Ω
CARBONR825 ERDS2TJ102T 0.25W 5% 1K Ω
CARBONR830 ERDS2TJ331T 0.25W 5% 330 Ω
CARBONR832 ERDS1TJ224T 0.5W 5% 220K Ω
CARBONR840 ERD75TAJ825 1W 5% 8M2 Ω
S.M.CARBR843 ERJ6GEYJ470V 0.1W 5% 47 Ω
S.M.CARBR844 ERJ6GEYJ472V 0.1W 5% 4K7 Ω
S.M.CARBR845 ERJ6GEYJ472V 0.1W 5% 4K7 Ω
FUSIBLER850 ERQ1ABJ180E 1W 5% 18 Ω
CARBONR851 ERDS2TJ104T 2W 5% 100K Ω
CARBONR852 ERDS2TJ472T 0.25W 5% 4K7 Ω
METALR854 ERG1SJ680P 1W 5% 68 Ω
CARBONR856 ERDS1TJ2R2T 0.5W 5% 2R2 Ω
CARBONR857 ERDS1TJ103T 0.5W 5% 10K Ω
CARBONR858 ERDS2TJ202T 0.25W 5% 2K Ω
CARBONR859 ERDS2TJ101T 0.25W 5% 100 Ω
S.M.CARBR860 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR861 ERJ6GEYJ122V 0.1W 5% 1K2 Ω
S.M.CARBR862 ERJ6GEYJ182V 0.1W 5% 1K8 Ω
CARBONR863 ERDS1TJ100T 0.5W 5% 10 Ω
S.M.CARBR864 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR866 ERJ6GEYJ472V 0.1W 5% 4K7 Ω
CARBONR867 ERDS1TJ102T 0.5W 5% 1K Ω
S.M.CARBR871 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR874 ERJ6GEYJ333V 0.1W 5% 33K Ω
S.M.CARBR880 ERJ6GEYJ122V 0.1W 5% 1K2 Ω
S.M.CARBR1026 ERJ6ENF1651V 0.1W 1% 1K65 Ω
S.M.CARBR1027 ERJ6ENF2151V 0.1W 1% 2K15 Ω
S.M.CARBR1028 ERJ6ENF3091V 0.1W 1% 3K09 Ω
S.M.CARBR1029 ERJ6ENF4421V 0.1W 1% 4K42 Ω
S.M.CARBR1031 ERJ6ENF1871V 0.1W 1% 1K87 Ω
S.M.CARBR1061 ERJ6GEYJ222V 0.1W 5% 2K2 Ω
SMDR1064 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR1101 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR1102 ERJ6GEYJ103V 0.1W 5% 10K Ω
CARBONR1103 ERDS2TJ103T 0.25W 5% 10K Ω
S.M.CARBR1104 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR1105 ERJ6GEYJ103V 0.1W 5% 10K Ω
S.M.CARBR1106 ERJ6GEYJ103V 0.1W 5% 10K Ω
SMDR1107 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1108 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1109 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1110 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR1111 ERJ6GEYJ103V 0.1W 5% 10K Ω
SMDR1112 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1113 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1114 ERJ6GEYJ102Z 0.125 5% 1K Ω
SMDR1115 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1116 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1117 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR1118 ERJ6GEYJ472V 0.1W 5% 4K7 Ω
S.M.CARBR1119 ERJ6GEYJ472V 0.1W 5% 4K7 Ω
SMDR1120 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR1121 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR1125 ERJ6GEYJ103V 0.1W 5% 10K Ω
SMDR1126 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR1129 ERJ6GEYJ272V 0.1W 5% 2K7 Ω
S.M.CARBR1130 ERJ6GEYJ123V 0.1W 5% 12K Ω
S.M.CARBR1140 ERJ6ENF1002V 0.1W 1% 10K Ω
S.M.CARBR1141 ERJ6GEYJ562V 0.1W 5% 5K6 Ω
S.M.CARBR1142 ERJ6GEYJ100V 0.1W 5% 10 Ω
S.M.CARBR2010 ERJ6GEYJ471V 0.1W 5% 470 Ω
SMDR2014 ERJ6GEYJ102Z 0.125 5% 1K Ω
SMDR2015 ERJ6GEYJ102Z 0.125 5% 1K Ω
SMDR2016 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR2020 ERJ6GEYJ562V 0.1W 5% 5K6 Ω
S.M.CARBR2021 ERJ6GEYJ331V 0.1W 5% 330 Ω
S.M.CARBR2022 ERJ6GEYJ562V 0.1W 5% 5K6 Ω
S.M.CARBR2101 ERJ6GEYJ103V 0.1W 5% 10K Ω
SMDR2102 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR2103 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR2108 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR2110 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBR2111 ERJ6GEYJ221V 0.1W 5% 220 Ω
SMDR2112 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR2113 ERJ6GEYJ562V 0.1W 5% 5K6 Ω
SMDR2114 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR2115 ERJ6GEYJ222V 0.1W 5% 2K2 Ω
SMDR2116 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR2117 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR2118 ERJ6GEYJ222V 0.1W 5% 2K2 Ω
SMDR2119 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR2120 ERJ6GEYJ222V 0.1W 5% 2K2 Ω
SMDR2123 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR2300 ERJ6GEYJ473V 0.1W 5% 47K Ω
S.M.CARBR2301 ERJ6GEYJ473V 0.1W 5% 47K Ω
CARBONR2325 ERDS2TJ2R2T 0.25W 5% 2R2 Ω
CARBONR2326 ERDS2TJ2R2T 0.25W 5% 2R2 Ω
CARBONR2327 ERDS2TJ2R2T 0.25W 5% 2R2 Ω
CARBONR2329 ERDS2TJ2R2T 0.25W 5% 2R2 Ω
S.M.CARBR2380 ERJ6GEYJ151V 0.1W 5% 150 Ω
SMDR2381 ERJ6GEYJ102Z 0.125 5% 1K Ω
SMDR2382 ERJ6GEYJ102Z 0.125 5% 1K Ω
S.M.CARBR2383 ERJ6GEYJ103V 0.1W 5% 10K Ω
CARBONR2384 ERDS1TJ560T 0.5W 5% 56 Ω
S.M.CARBR2385 ERJ6GEYJ153V 0.1W 5% 15K Ω
S.M.CARBR2386 ERJ6GEYJ103V 0.1W 5% 10K Ω
SMDR3001 ERJ6GEYJ101Z .125W 5% 100 Ω
CARBONR3002 ERDS2TJ101T 0.25W 5% 100 Ω
SMDR3003 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR3004 ERJ6GEYJ153V 0.1W 5% 15K Ω
SMDR3005 ERJ6GEYJ101Z .125W 5% 100 Ω
CARBONR3006 ERDS2TJ101T 0.25W 5% 100 Ω
SMDR3007 ERJ6GEYJ101Z .125W 5% 100 Ω
S.M.CARBR3008 ERJ6GEYJ153V 0.1W 5% 15K Ω
S.M.CARBR3014 ERJ6GEYJ471V 0.1W 5% 470 Ω
S.M.CARBR3018 ERJ6GEYJ471V 0.1W 5% 470 Ω
S.M.CARBR3028 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBR3029 ERJ6GEYJ750V 0.1W 5% 75 Ω
S.M.CARBR3044 ERJ6GEYJ750V 0.1W 5% 75 Ω
SMDR3047 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR3049 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR3132 ERJ6GEYJ101Z .125W 5% 100 Ω
14
