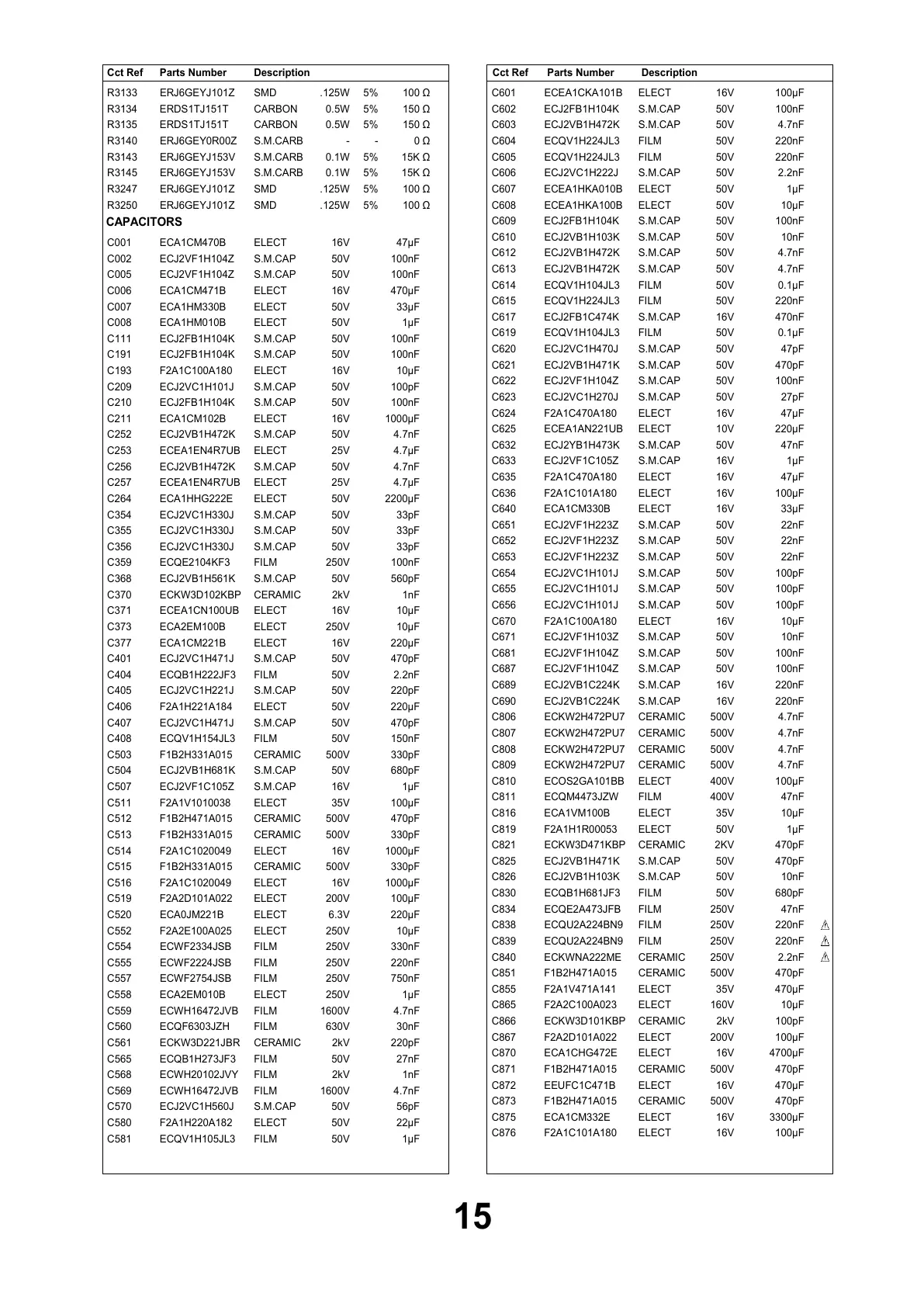

Panasonic QuintrixF TX-21AP2F Service Manual

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
SMDR3133 ERJ6GEYJ101Z .125W 5% 100 Ω
CARBONR3134 ERDS1TJ151T 0.5W 5% 150 Ω
CARBONR3135 ERDS1TJ151T 0.5W 5% 150 Ω
S.M.CARBR3140 ERJ6GEY0R00Z - - 0 Ω
S.M.CARBR3143 ERJ6GEYJ153V 0.1W 5% 15K Ω
S.M.CARBR3145 ERJ6GEYJ153V 0.1W 5% 15K Ω
SMDR3247 ERJ6GEYJ101Z .125W 5% 100 Ω
SMDR3250 ERJ6GEYJ101Z .125W 5% 100 Ω
CAPACITORS
ELECTC001 ECA1CM470B 16V 47µF
S.M.CAPC002 ECJ2VF1H104Z 50V 100nF
S.M.CAPC005 ECJ2VF1H104Z 50V 100nF
ELECTC006 ECA1CM471B 16V 470µF
ELECT C007 ECA1HM330B 50V 33µF
ELECTC008 ECA1HM010B 50V 1µF
S.M.CAPC111 ECJ2FB1H104K 50V 100nF
S.M.CAPC191 ECJ2FB1H104K 50V 100nF
ELECTC193 F2A1C100A180 16V 10µF
S.M.CAPC209 ECJ2VC1H101J 50V 100pF
S.M.CAPC210 ECJ2FB1H104K 50V 100nF
ELECTC211 ECA1CM102B 16V 1000µF
S.M.CAPC252 ECJ2VB1H472K 50V 4.7nF
ELECT C253 ECEA1EN4R7UB 25V 4.7µF
S.M.CAPC256 ECJ2VB1H472K 50V 4.7nF
ELECT C257 ECEA1EN4R7UB 25V 4.7µF
ELECTC264 ECA1HHG222E 50V 2200µF
S.M.CAPC354 ECJ2VC1H330J 50V 33pF
S.M.CAPC355 ECJ2VC1H330J 50V 33pF
S.M.CAPC356 ECJ2VC1H330J 50V 33pF
FILMC359 ECQE2104KF3 250V 100nF
S.M.CAPC368 ECJ2VB1H561K 50V 560pF
CERAMICC370 ECKW3D102KBP 2kV 1nF
ELECTC371 ECEA1CN100UB 16V 10µF
ELECTC373 ECA2EM100B 250V 10µF
ELECTC377 ECA1CM221B 16V 220µF
S.M.CAPC401 ECJ2VC1H471J 50V 470pF
FILMC404 ECQB1H222JF3 50V 2.2nF
S.M.CAPC405 ECJ2VC1H221J 50V 220pF
ELECTC406 F2A1H221A184 50V 220µF
S.M.CAPC407 ECJ2VC1H471J 50V 470pF
FILMC408 ECQV1H154JL3 50V 150nF
CERAMICC503 F1B2H331A015 500V 330pF
S.M.CAPC504 ECJ2VB1H681K 50V 680pF
S.M.CAPC507 ECJ2VF1C105Z 16V 1µF
ELECTC511 F2A1V1010038 35V 100µF
CERAMICC512 F1B2H471A015 500V 470pF
CERAMICC513 F1B2H331A015 500V 330pF
ELECTC514 F2A1C1020049 16V 1000µF
CERAMICC515 F1B2H331A015 500V 330pF
ELECTC516 F2A1C1020049 16V 1000µF
ELECTC519 F2A2D101A022 200V 100µF
ELECTC520 ECA0JM221B 6.3V 220µF
ELECTC552 F2A2E100A025 250V 10µF
FILMC554 ECWF2334JSB 250V 330nF
FILMC555 ECWF2224JSB 250V 220nF
FILMC557 ECWF2754JSB 250V 750nF
ELECTC558 ECA2EM010B 250V 1µF
FILMC559 ECWH16472JVB 1600V 4.7nF
FILMC560 ECQF6303JZH 630V 30nF
CERAMICC561 ECKW3D221JBR 2kV 220pF
FILMC565 ECQB1H273JF3 50V 27nF
FILMC568 ECWH20102JVY 2kV 1nF
FILMC569 ECWH16472JVB 1600V 4.7nF
S.M.CAPC570 ECJ2VC1H560J 50V 56pF
ELECTC580 F2A1H220A182 50V 22µF
FILMC581 ECQV1H105JL3 50V 1µF
ELECTC601 ECEA1CKA101B 16V 100µF
S.M.CAPC602 ECJ2FB1H104K 50V 100nF
S.M.CAPC603 ECJ2VB1H472K 50V 4.7nF
FILMC604 ECQV1H224JL3 50V 220nF
FILMC605 ECQV1H224JL3 50V 220nF
S.M.CAPC606 ECJ2VC1H222J 50V 2.2nF
ELECTC607 ECEA1HKA010B 50V 1µF
ELECTC608 ECEA1HKA100B 50V 10µF
S.M.CAPC609 ECJ2FB1H104K 50V 100nF
S.M.CAPC610 ECJ2VB1H103K 50V 10nF
S.M.CAPC612 ECJ2VB1H472K 50V 4.7nF
S.M.CAPC613 ECJ2VB1H472K 50V 4.7nF
FILMC614 ECQV1H104JL3 50V 0.1µF
FILMC615 ECQV1H224JL3 50V 220nF
S.M.CAPC617 ECJ2FB1C474K 16V 470nF
FILMC619 ECQV1H104JL3 50V 0.1µF
S.M.CAPC620 ECJ2VC1H470J 50V 47pF
S.M.CAPC621 ECJ2VB1H471K 50V 470pF
S.M.CAPC622 ECJ2VF1H104Z 50V 100nF
S.M.CAPC623 ECJ2VC1H270J 50V 27pF
ELECTC624 F2A1C470A180 16V 47µF
ELECTC625 ECEA1AN221UB 10V 220µF
S.M.CAPC632 ECJ2YB1H473K 50V 47nF
S.M.CAPC633 ECJ2VF1C105Z 16V 1µF
ELECTC635 F2A1C470A180 16V 47µF
ELECTC636 F2A1C101A180 16V 100µF
ELECTC640 ECA1CM330B 16V 33µF
S.M.CAPC651 ECJ2VF1H223Z 50V 22nF
S.M.CAPC652 ECJ2VF1H223Z 50V 22nF
S.M.CAPC653 ECJ2VF1H223Z 50V 22nF
S.M.CAPC654 ECJ2VC1H101J 50V 100pF
S.M.CAPC655 ECJ2VC1H101J 50V 100pF
S.M.CAPC656 ECJ2VC1H101J 50V 100pF
ELECTC670 F2A1C100A180 16V 10µF
S.M.CAPC671 ECJ2VF1H103Z 50V 10nF
S.M.CAPC681 ECJ2VF1H104Z 50V 100nF
S.M.CAPC687 ECJ2VF1H104Z 50V 100nF
S.M.CAPC689 ECJ2VB1C224K 16V 220nF
S.M.CAPC690 ECJ2VB1C224K 16V 220nF
CERAMICC806 ECKW2H472PU7 500V 4.7nF
CERAMICC807 ECKW2H472PU7 500V 4.7nF
CERAMICC808 ECKW2H472PU7 500V 4.7nF
CERAMICC809 ECKW2H472PU7 500V 4.7nF
ELECT C810 ECOS2GA101BB 400V 100µF
FILMC811 ECQM4473JZW 400V 47nF
ELECTC816 ECA1VM100B 35V 10µF
ELECTC819 F2A1H1R00053 50V 1µF
CERAMICC821 ECKW3D471KBP 2KV 470pF
S.M.CAPC825 ECJ2VB1H471K 50V 470pF
S.M.CAPC826 ECJ2VB1H103K 50V 10nF
FILMC830 ECQB1H681JF3 50V 680pF
FILMC834 ECQE2A473JFB 250V 47nF
FILMC838 ECQU2A224BN9 250V 220nF
FILMC839 ECQU2A224BN9 250V 220nF
CERAMICC840 ECKWNA222ME 250V 2.2nF
CERAMICC851 F1B2H471A015 500V 470pF
ELECTC855 F2A1V471A141 35V 470µF
ELECTC865 F2A2C100A023 160V 10µF
CERAMICC866 ECKW3D101KBP 2kV 100pF
ELECTC867 F2A2D101A022 200V 100µF
ELECTC870 ECA1CHG472E 16V 4700µF
CERAMICC871 F1B2H471A015 500V 470pF
ELECTC872 EEUFC1C471B 16V 470µF
CERAMICC873 F1B2H471A015 500V 470pF
ELECTC875 ECA1CM332E 16V 3300µF
ELECTC876 F2A1C101A180 16V 100µF
15
