Panasonic QuintrixF TX-21AP2F Service Manual

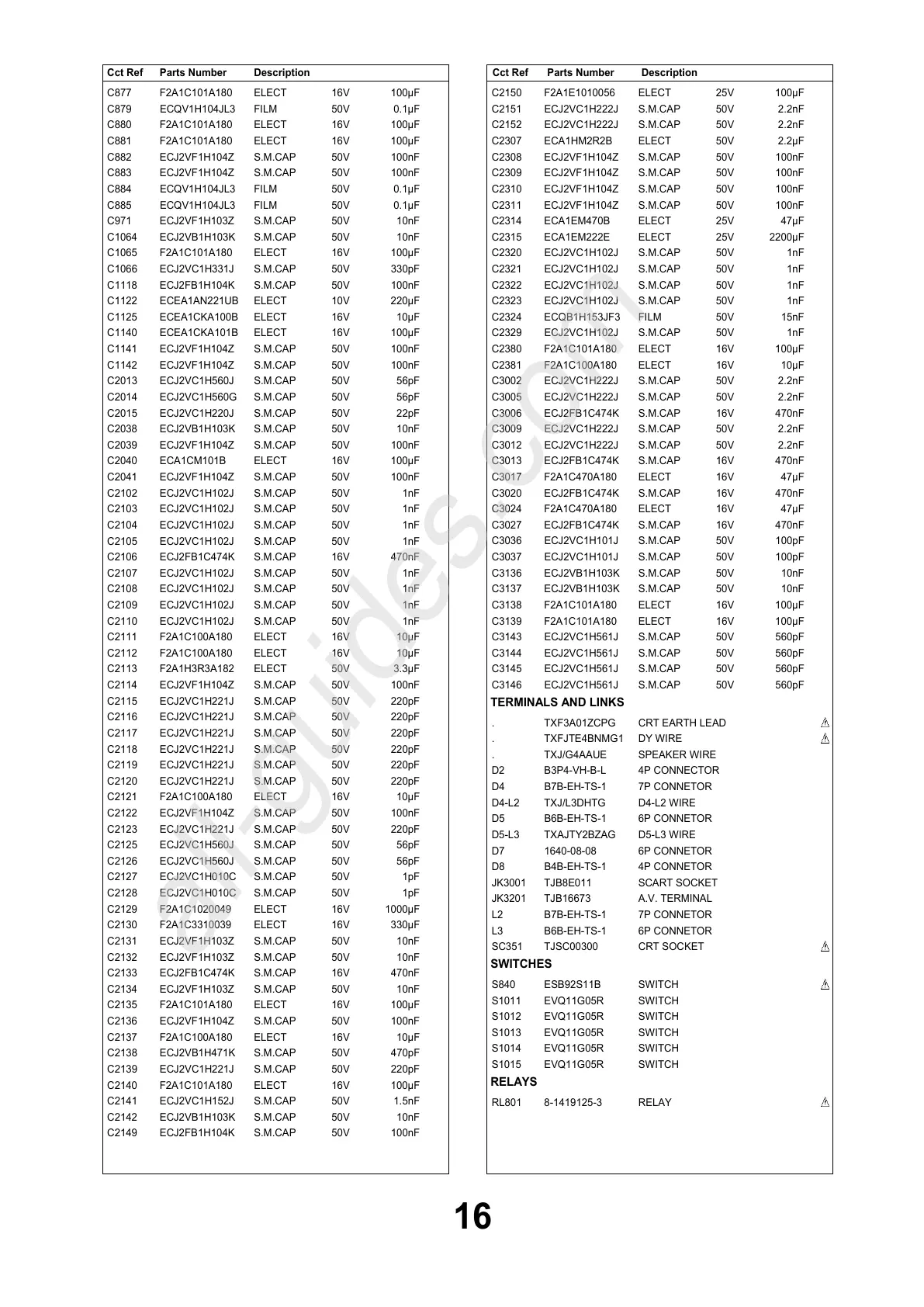

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
ELECTC877 F2A1C101A180 16V 100µF
FILMC879 ECQV1H104JL3 50V 0.1µF
ELECTC880 F2A1C101A180 16V 100µF
ELECTC881 F2A1C101A180 16V 100µF
S.M.CAPC882 ECJ2VF1H104Z 50V 100nF
S.M.CAPC883 ECJ2VF1H104Z 50V 100nF
FILMC884 ECQV1H104JL3 50V 0.1µF
FILMC885 ECQV1H104JL3 50V 0.1µF
S.M.CAPC971 ECJ2VF1H103Z 50V 10nF
S.M.CAPC1064 ECJ2VB1H103K 50V 10nF
ELECTC1065 F2A1C101A180 16V 100µF
S.M.CAPC1066 ECJ2VC1H331J 50V 330pF
S.M.CAPC1118 ECJ2FB1H104K 50V 100nF
ELECTC1122 ECEA1AN221UB 10V 220µF
ELECTC1125 ECEA1CKA100B 16V 10µF
ELECTC1140 ECEA1CKA101B 16V 100µF
S.M.CAPC1141 ECJ2VF1H104Z 50V 100nF
S.M.CAPC1142 ECJ2VF1H104Z 50V 100nF
S.M.CAPC2013 ECJ2VC1H560J 50V 56pF
S.M.CAPC2014 ECJ2VC1H560G 50V 56pF
S.M.CAPC2015 ECJ2VC1H220J 50V 22pF
S.M.CAPC2038 ECJ2VB1H103K 50V 10nF
S.M.CAPC2039 ECJ2VF1H104Z 50V 100nF
ELECTC2040 ECA1CM101B 16V 100µF
S.M.CAPC2041 ECJ2VF1H104Z 50V 100nF
S.M.CAPC2102 ECJ2VC1H102J 50V 1nF
S.M.CAPC2103 ECJ2VC1H102J 50V 1nF
S.M.CAPC2104 ECJ2VC1H102J 50V 1nF
S.M.CAPC2105 ECJ2VC1H102J 50V 1nF
S.M.CAPC2106 ECJ2FB1C474K 16V 470nF
S.M.CAPC2107 ECJ2VC1H102J 50V 1nF
S.M.CAPC2108 ECJ2VC1H102J 50V 1nF
S.M.CAPC2109 ECJ2VC1H102J 50V 1nF
S.M.CAPC2110 ECJ2VC1H102J 50V 1nF
ELECTC2111 F2A1C100A180 16V 10µF
ELECTC2112 F2A1C100A180 16V 10µF
ELECTC2113 F2A1H3R3A182 50V 3.3µF
S.M.CAPC2114 ECJ2VF1H104Z 50V 100nF
S.M.CAPC2115 ECJ2VC1H221J 50V 220pF
S.M.CAPC2116 ECJ2VC1H221J 50V 220pF
S.M.CAPC2117 ECJ2VC1H221J 50V 220pF
S.M.CAPC2118 ECJ2VC1H221J 50V 220pF
S.M.CAPC2119 ECJ2VC1H221J 50V 220pF
S.M.CAPC2120 ECJ2VC1H221J 50V 220pF
ELECTC2121 F2A1C100A180 16V 10µF
S.M.CAPC2122 ECJ2VF1H104Z 50V 100nF
S.M.CAPC2123 ECJ2VC1H221J 50V 220pF
S.M.CAPC2125 ECJ2VC1H560J 50V 56pF
S.M.CAPC2126 ECJ2VC1H560J 50V 56pF
S.M.CAPC2127 ECJ2VC1H010C 50V 1pF
S.M.CAPC2128 ECJ2VC1H010C 50V 1pF
ELECTC2129 F2A1C1020049 16V 1000µF
ELECTC2130 F2A1C3310039 16V 330µF
S.M.CAPC2131 ECJ2VF1H103Z 50V 10nF
S.M.CAPC2132 ECJ2VF1H103Z 50V 10nF
S.M.CAPC2133 ECJ2FB1C474K 16V 470nF
S.M.CAPC2134 ECJ2VF1H103Z 50V 10nF
ELECTC2135 F2A1C101A180 16V 100µF
S.M.CAPC2136 ECJ2VF1H104Z 50V 100nF
ELECTC2137 F2A1C100A180 16V 10µF
S.M.CAPC2138 ECJ2VB1H471K 50V 470pF
S.M.CAPC2139 ECJ2VC1H221J 50V 220pF
ELECTC2140 F2A1C101A180 16V 100µF
S.M.CAPC2141 ECJ2VC1H152J 50V 1.5nF
S.M.CAPC2142 ECJ2VB1H103K 50V 10nF
S.M.CAPC2149 ECJ2FB1H104K 50V 100nF
ELECTC2150 F2A1E1010056 25V 100µF
S.M.CAPC2151 ECJ2VC1H222J 50V 2.2nF
S.M.CAPC2152 ECJ2VC1H222J 50V 2.2nF
ELECTC2307 ECA1HM2R2B 50V 2.2µF
S.M.CAPC2308 ECJ2VF1H104Z 50V 100nF
S.M.CAPC2309 ECJ2VF1H104Z 50V 100nF
S.M.CAPC2310 ECJ2VF1H104Z 50V 100nF
S.M.CAPC2311 ECJ2VF1H104Z 50V 100nF
ELECTC2314 ECA1EM470B 25V 47µF
ELECTC2315 ECA1EM222E 25V 2200µF
S.M.CAPC2320 ECJ2VC1H102J 50V 1nF
S.M.CAPC2321 ECJ2VC1H102J 50V 1nF
S.M.CAPC2322 ECJ2VC1H102J 50V 1nF
S.M.CAPC2323 ECJ2VC1H102J 50V 1nF
FILMC2324 ECQB1H153JF3 50V 15nF
S.M.CAPC2329 ECJ2VC1H102J 50V 1nF
ELECTC2380 F2A1C101A180 16V 100µF
ELECTC2381 F2A1C100A180 16V 10µF
S.M.CAPC3002 ECJ2VC1H222J 50V 2.2nF
S.M.CAPC3005 ECJ2VC1H222J 50V 2.2nF
S.M.CAPC3006 ECJ2FB1C474K 16V 470nF
S.M.CAPC3009 ECJ2VC1H222J 50V 2.2nF
S.M.CAPC3012 ECJ2VC1H222J 50V 2.2nF
S.M.CAPC3013 ECJ2FB1C474K 16V 470nF
ELECTC3017 F2A1C470A180 16V 47µF
S.M.CAPC3020 ECJ2FB1C474K 16V 470nF
ELECTC3024 F2A1C470A180 16V 47µF
S.M.CAPC3027 ECJ2FB1C474K 16V 470nF
S.M.CAPC3036 ECJ2VC1H101J 50V 100pF
S.M.CAPC3037 ECJ2VC1H101J 50V 100pF
S.M.CAPC3136 ECJ2VB1H103K 50V 10nF
S.M.CAPC3137 ECJ2VB1H103K 50V 10nF
ELECTC3138 F2A1C101A180 16V 100µF
ELECTC3139 F2A1C101A180 16V 100µF
S.M.CAPC3143 ECJ2VC1H561J 50V 560pF
S.M.CAPC3144 ECJ2VC1H561J 50V 560pF
S.M.CAPC3145 ECJ2VC1H561J 50V 560pF
S.M.CAPC3146 ECJ2VC1H561J 50V 560pF
TERMINALS AND LINKS
CRT EARTH LEAD . TXF3A01ZCPG
DY WIRE .TXFJTE4BNMG1
SPEAKER WIRE .TXJ/G4AAUE
4P CONNECTOR D2 B3P4-VH-B-L
7P CONNETOR D4 B7B-EH-TS-1
D4-L2 WIRE D4-L2 TXJ/L3DHTG
6P CONNETOR D5 B6B-EH-TS-1
D5-L3 WIRE D5-L3 TXAJTY2BZAG
6P CONNETOR D7 1640-08-08
4P CONNETOR D8 B4B-EH-TS-1
SCART SOCKET JK3001 TJB8E011
A.V. TERMINAL JK3201 TJB16673
7P CONNETOR L2 B7B-EH-TS-1
6P CONNETOR L3 B6B-EH-TS-1
CRT SOCKET SC351 TJSC00300
SWITCHES
SWITCH S840 ESB92S11B
SWITCH S1011 EVQ11G05R
SWITCH S1012 EVQ11G05R
SWITCH S1013 EVQ11G05R
SWITCH S1014 EVQ11G05R
SWITCH S1015 EVQ11G05R
RELAYS
RELAY RL801 8-1419125-3
16
