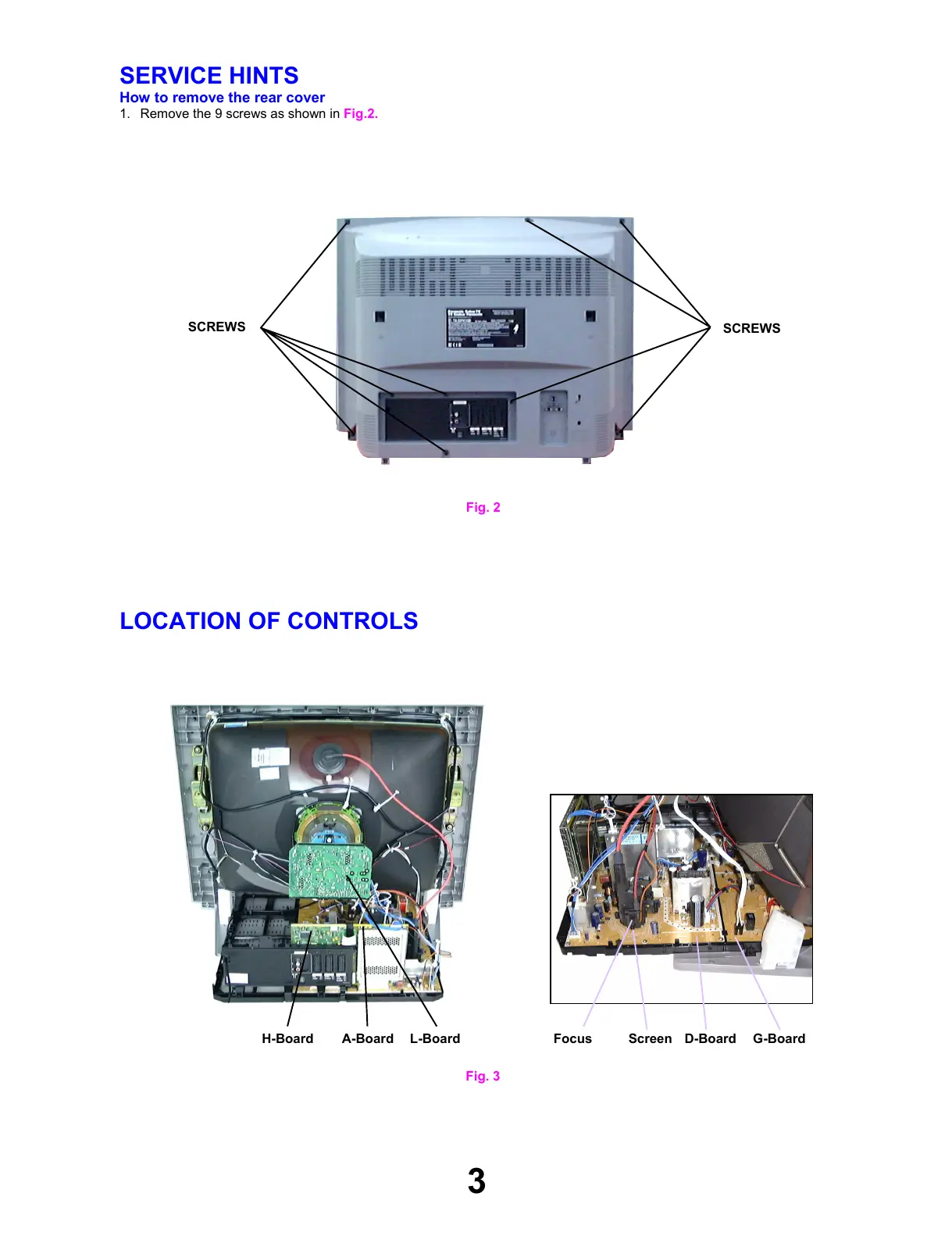

SERVICE HINTS
How to remove the rear cover
1. Remove the 9 screws as shown in Fig.2.
LOCATION OF CONTROLS
3
Fig. 2
SCREWS
SCREWS
Fig. 3
L-BoardH-Board A-Board Focus
G-Board
Screen
D-Board
