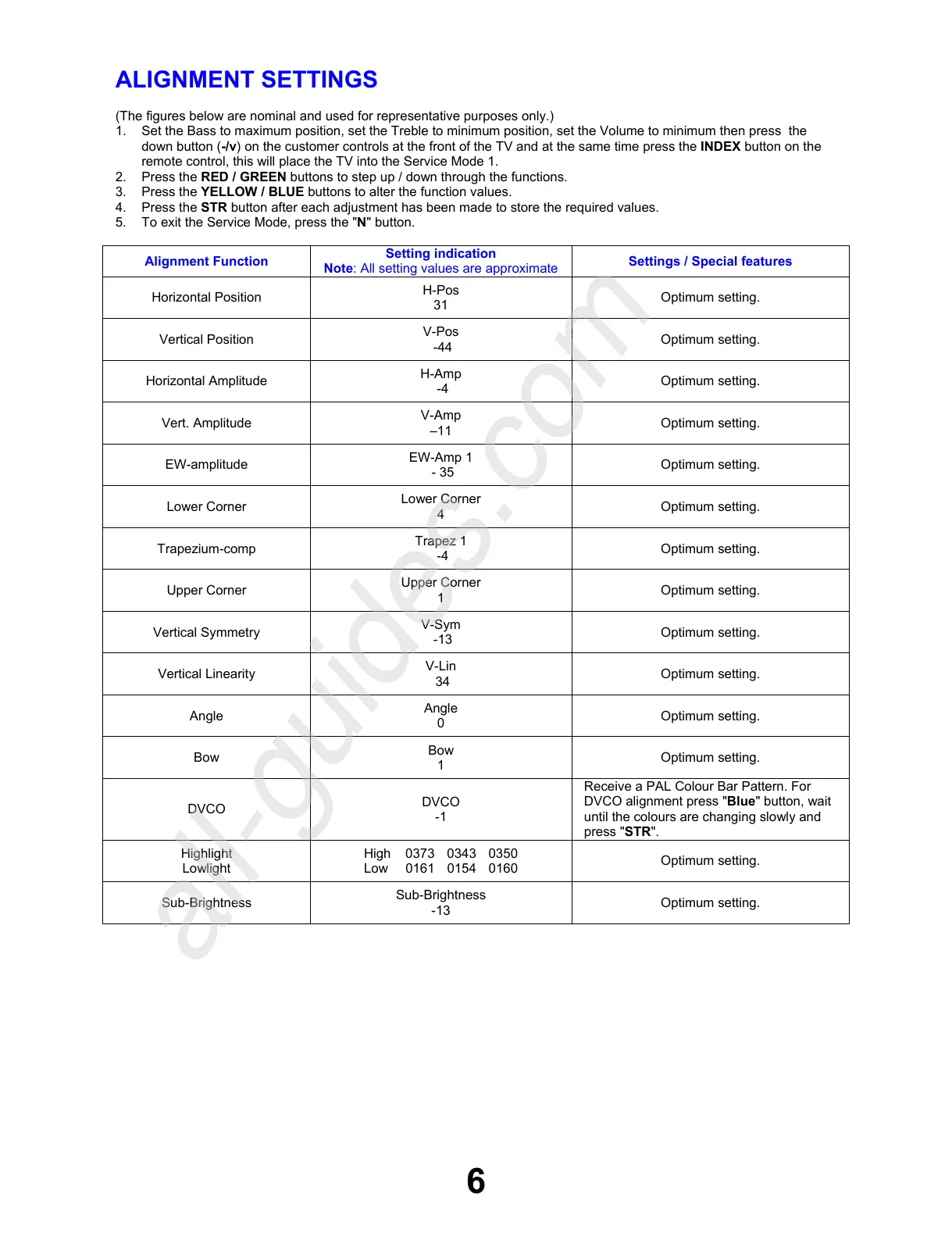

ALIGNMENT SETTINGS
(The figures below are nominal and used for representative purposes only.)
1. Set the Bass to maximum position, set the Treble to minimum position, set the Volume to minimum then press the
down button (-/v) on the customer controls at the front of the TV and at the same time press the INDEX button on the
remote control, this will place the TV into the Service Mode 1.
2. Press the RED / GREEN buttons to step up / down through the functions.
3. Press the YELLOW / BLUE buttons to alter the function values.
4. Press the STR button after each adjustment has been made to store the required values.
5. To exit the Service Mode, press the "N" button.
Alignment Function
Setting indication
Note: All setting values are approximate
Settings / Special features
Horizontal Position
H-Pos
31
Optimum setting.
Vertical Position
V-Pos
-44
Optimum setting.
Horizontal Amplitude
H-Amp
-4
Optimum setting.
Vert. Amplitude
V-Amp
–11
Optimum setting.
EW-amplitude
EW-Amp 1
- 35
Optimum setting.
Lower Corner
Lower Corner
4
Optimum setting.
Trapezium-comp
Trapez 1
-4
Optimum setting.
Upper Corner
Upper Corner
1
Optimum setting.
Vertical Symmetry
V-Sym
-13
Optimum setting.
Vertical Linearity
V-Lin
34
Optimum setting.
Angle
Angle
0
Optimum setting.
Bow
Bow
1
Optimum setting.
DVCO
DVCO
-1
Receive a PAL Colour Bar Pattern. For
DVCO alignment press "Blue" button, wait
until the colours are changing slowly and
press "STR".
Highlight
Lowlight
High 0373 0343 0350
Low 0161 0154 0160
Optimum setting.
Sub-Brightness
Sub-Brightness
-13
Optimum setting.
6
