Panasonic RAMSA WR-S208 - Stereo Input Section Control Descriptions

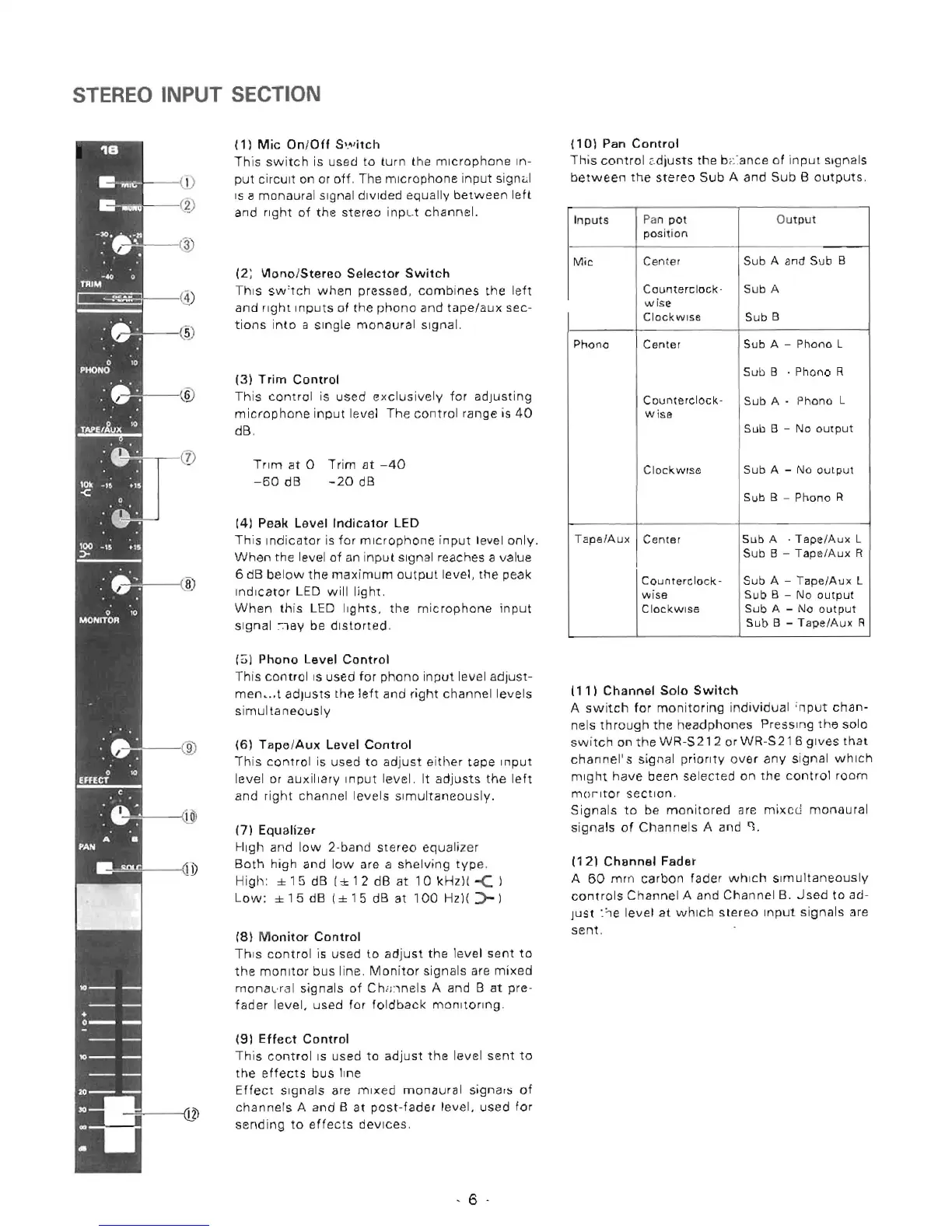

STEREO INPUT SECTION
(11 Mic On}Off S'."itch
This switch is used to turn the microphone In-
put circuit on or off. The microphone input signul
IS a monaural signal divided equally between lett
and right of the stereo i npL.t channel.
(2; V1onolStereo Selector Switch
This sw ' tch when pressed, combines the left
and right Inputs 01 the phono and tape/aux sec-
tions into a Single monaural signal.
(3] Trim Control
This control is used exclusively for adjusting
microphone input level The control range is 40
dB.
Trim at 0 Trim Elt -40
-60 dB -20 dB
(4) Peak Level Indicator LED
This Indicator is for microphone input level only.
When the level of an input signal reaches a value
6 dB below the maximum output level , the peak
Indicator LED will ligh1.
When this LED Ilg hts. the mic rophone in put
Signal ~18y be distorted.
(~1 Phona Level Control
This control IS used for phono input level adjust-
men •. . t adJusts the left and right channel levels
simultaneously
(6) TapelAux Level Control
This control is used to adjust either tape Input
level or auxiliary I n put level . It adjusts the left
and right channel levels Simultaneously.
(7) Equalizer
High and low 2·band stereo equali zer
Both high and low are a shelving type .
High : ± 1 5 dB I ± 1 2 dB at 10 kHz)( -C )
Low: ± 1 5 dB I ± 1 5 dB at 100 Hz)( ::>- I
18) M onitor Control
Th is control is used to adjust the level sent to
the monitor bus li ne . Monitor signals are mixed
monaL ·ral signals of Ch; nnels A and B at pre-
fad er level, used for foldback monitoring .
(9) Effect Control
This control IS used to adjust the level sent to
the effects bus line
E Ifect Signals are mixed monaura I signa,s of
channels A and B at post-fader level, used for
send ing to effects devices .
. 6 -
(101 Pan Control
This control 2. djusts the bi::ance of in put signals
between the stereo Sub A and Sub 8 outputs .
Inputs
Pan pot
O utput
pos it i on
Mic
Center
Sub A and Sub
B
Counterclock ·
Sub A
wise
ClockWise Sub B
Phono
Center
Sub A - Phono L
Sub B
.
Phono R
Counterclock-
Sub A - Phono L
wisa
Sub B - No OUtput
ClockWise Sub A - No oUlput
Sub B - Phono R
Taps/Aux
Centsr
Sub A
.
Tape/Aux L
Sub B - Tape / Aux R
C oun tere lock - Sub A - Tape/Aux L
wise Sub B - No output
ClockWise
Sub A - No output
Sub B - Tape/Aux R
(11) Channel Solo Switch
A switch for monitoring individual ; nput chan-
nels th rough the headphones PresSing the solo
switch on the WR-S 212 or WR-S21 6 gives that
channel's signal priority over any signal which
might have been select ed on the control room
mor Itor section .
Signals to be monitored a ra mixed monau ral
signals of Channels A and '1 .
(121 Channel Fader
A 60 mrn carbon fader which Simultaneously
controls Channel A and Channel B. Jsed to ad-
Just : 'le level at whlci:1 stereo Input signals are
sent ,
