Panasonic RF-2900LBS - Disassembly Instructions; Disassembly Procedures and Parts

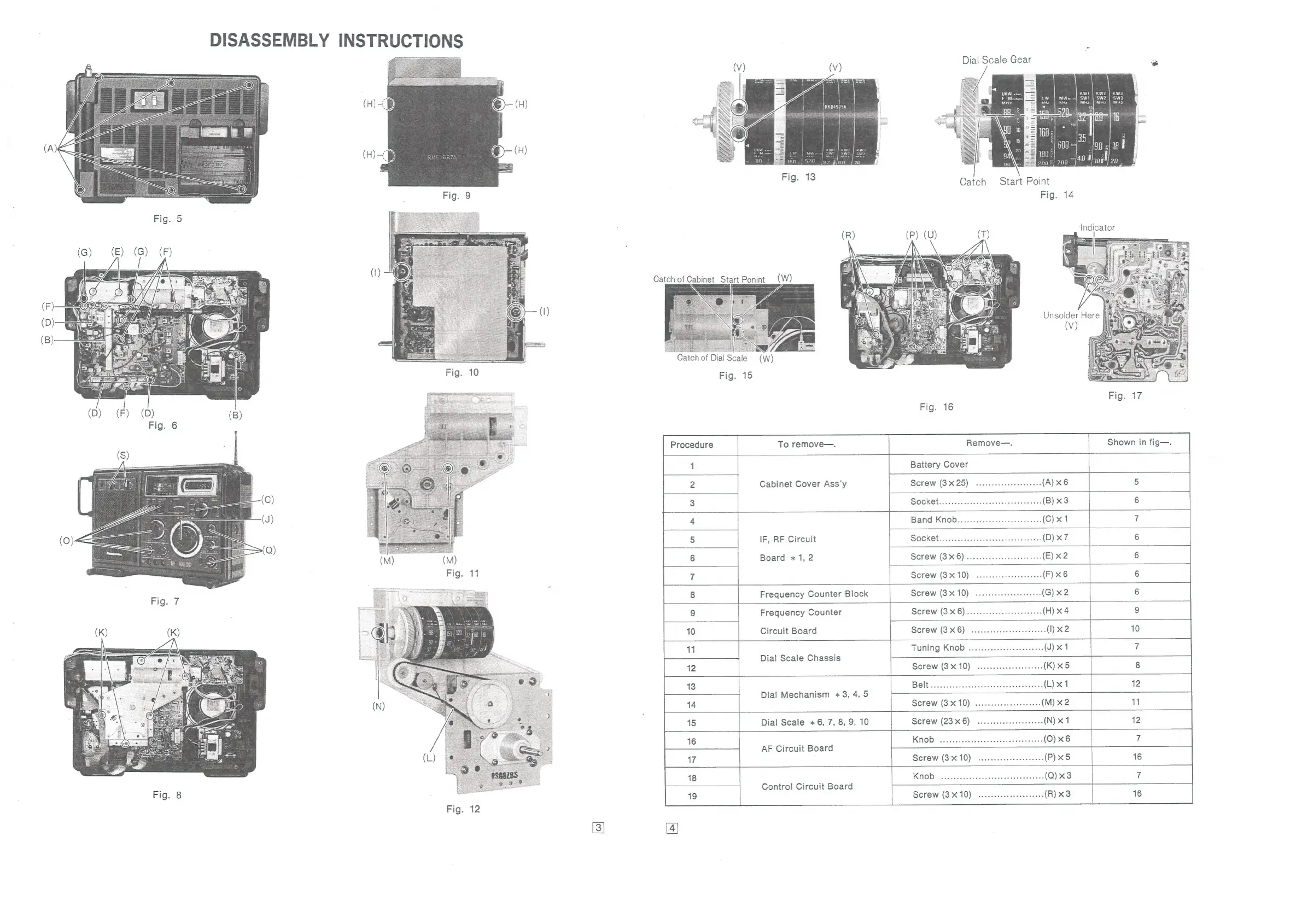

DISASSEMBLY INSTRUCTIONS
Dial
Scale
Gear
-
Catch Start Point
Fig. 14
Indicator
Catch of Cabinet Start Ponint _(W)
Za
Sei s
Catch of Dial Scale (W)
Fig. 15
Procedure To remove—.
Fig. 16
Remove—.
Shown in fig—.
Cabinet Cover Ass’y
Battery Cover
Screw (3 x 25)
Socket
IF, RF Circuit
Board x1, 2
Band Knob
Socket
Screw (3 x 6)
Screw (3 x 10)
Frequency Counter Block
Screw (3 x 10)
Frequency Counter
Circuit Board
Screw (3 x 6)
Screw (3 x6)
Dial Scale Chassis
Tuning Knob
Screw (3 x 10)
Dial Mechanism «3, 4, 5
Screw (3 x 10)
Dial Scale x 6, 7, 8, 9, 10
Screw (23 x 6)
AF Circuit Board
Control Circuit Board
