Panasonic RM-1100 - RM-M1100 Power Amplifier Disassembly and Parts Location; Disassembly Steps and Hardware; Power Amplifier PCB Component Locations

RM-M1100

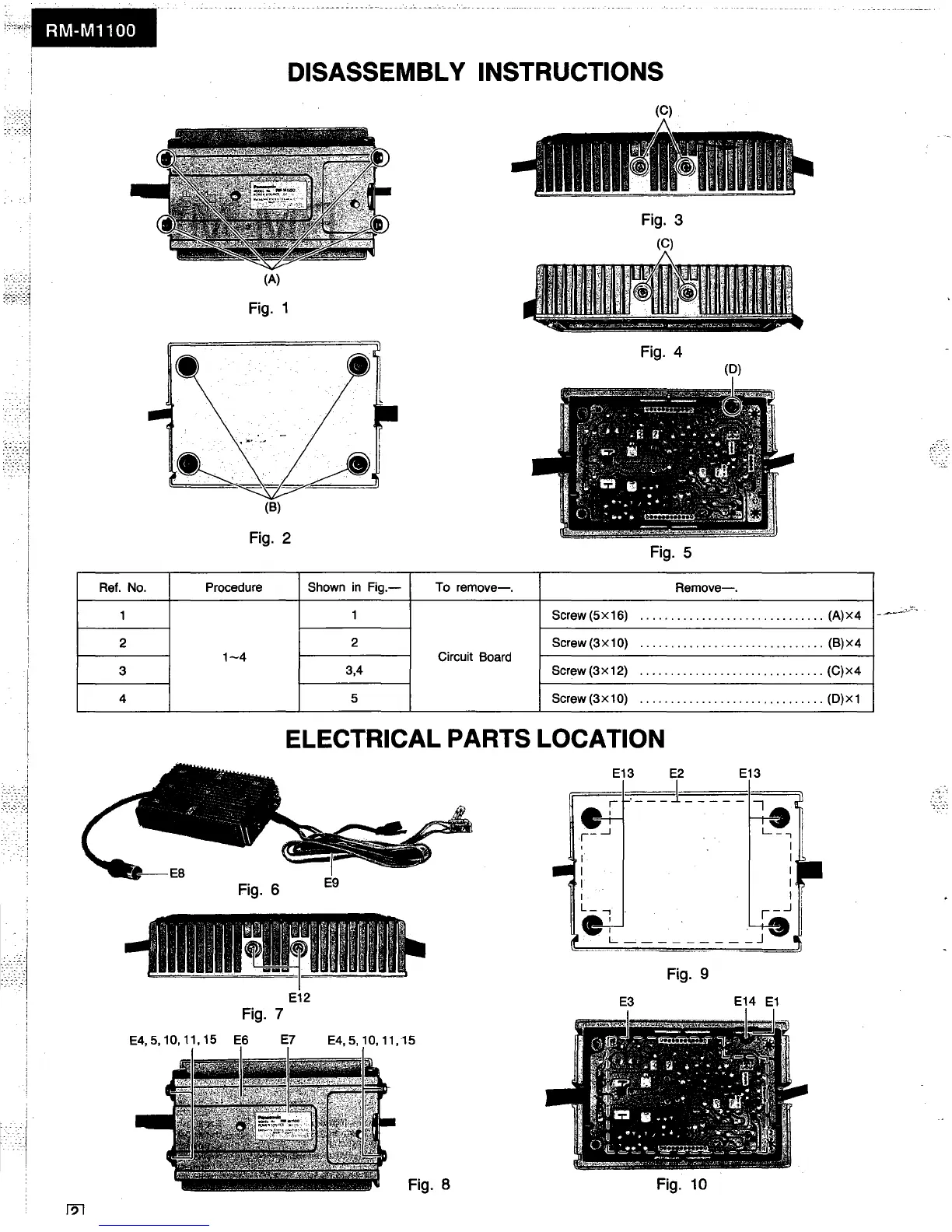

DISASSEMBLY INSTRUCTIONS
(C)
Fig. 5
Fig. 3
(C)
(A)
Fig. 1
Fig. 4
(0)
(B)
Fig. 2
Ref. No. Procedure
Shown
in Fig.- To remove-.
Remove-.
1
1 Screw (5x16)
................. - ............
(A)x4
2
2
Screw
(3x 10)
••• 0', 0 •••••••••••• '" ••••• 0 ••
(B)x4
1-4
Circuit
Board
3
3,4 Screw
(3 x 12)
.............................. (C)X4
4
5 Screw (3x10)
.............................. (0)x1
ELECTRICAL PARTS LOCATION
E14 E1
Fig. 9
Fig. 10
E3
E13 E2 E13
r . 1 --, 1
Ie' •
r-~ L_,
I
I
I
I
I
:
e: - _ r-~ I
L J
-- --- _._-- .. _----------- -----~
Fig. 8
Fig. 6
~
E12
Fig. 7
E4,5,10,11,15 E6 E7 E4,5,10,11,15
