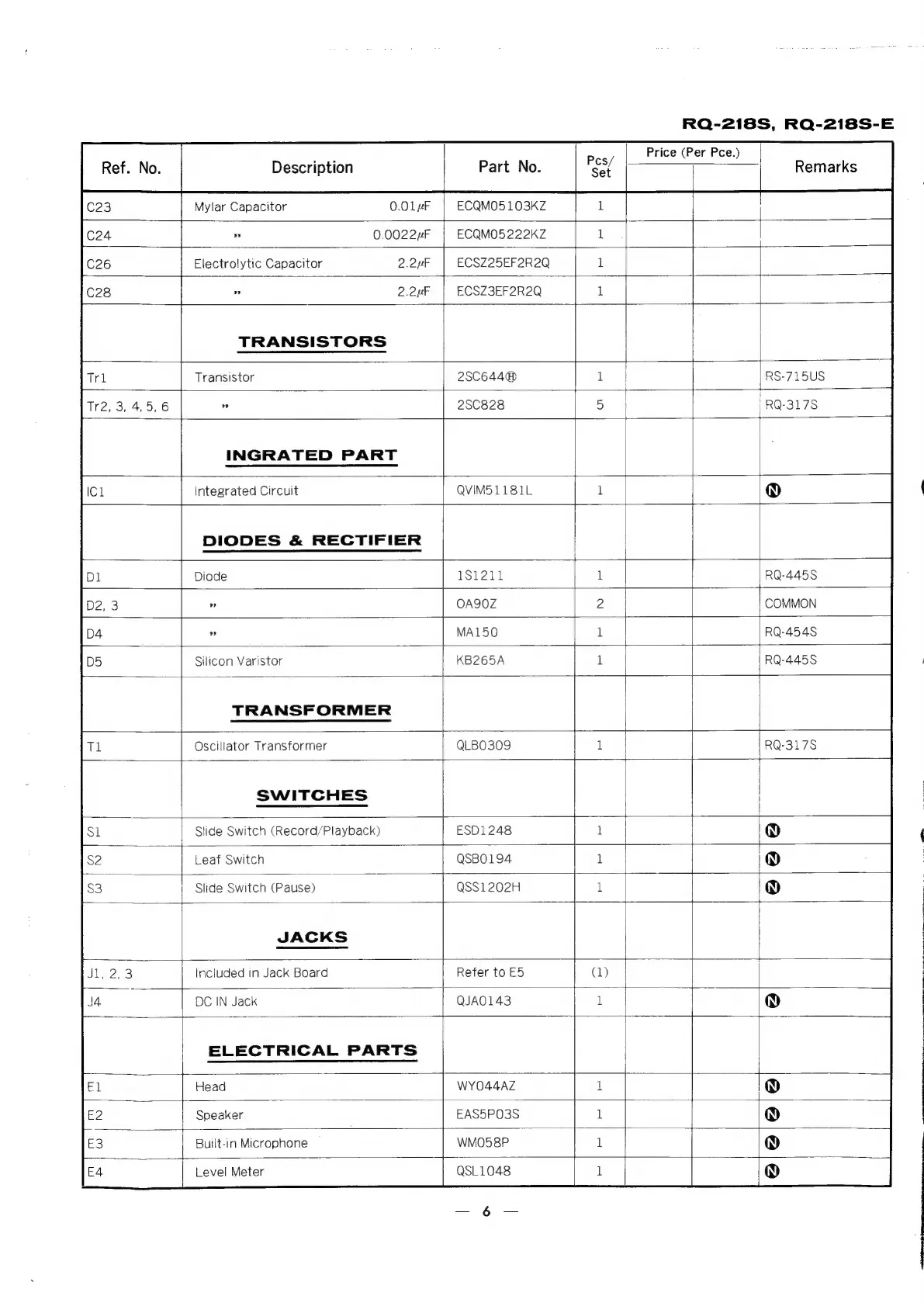

RQ-218S, RQ-218S-E
ue, Price (Per Pce.)
Description Part No. Remarks
Mylar Capacitor 0.01 4F ECQM05 103KZ
” 0.0022uF ECQM05222KZ
Electrolytic Capacitor 2.2uF ECSZ25EF2R2Q
» 2.2uF | ECSZ3EF2R2Q
TRANSISTORS
Trl Transistor 2SC644@ | RS-715US
Tr2, 3, 4,5, 6 » 2SC828 RQ-317S8
+
INGRATED PART
Integrated Circuit QVIM51L181L
DIODES & RECTIFIER
1$1211 RQ-445S
COMMON
MA150 RQ-454S
Silicon Varistor KB265A RQ-445S
gi Soe Se Ae rr I
TRANSFORMER
————
Oscillator Transformer QLBO309 RQ-317S
SWITCHES
Slide Switch (Record/Playback) ESD1248
Leaf Switch QSB0194.
Slide Switch (Pause) QSS1202H
JACKS
Included in Jack Board Refer to E5
DC IN Jack QJA0143
ELECTRICAL PARTS
Head WYO044AZ
Speaker EAS5P03S
Built-in Microphone WMO58P
Level Meter QSL1048
