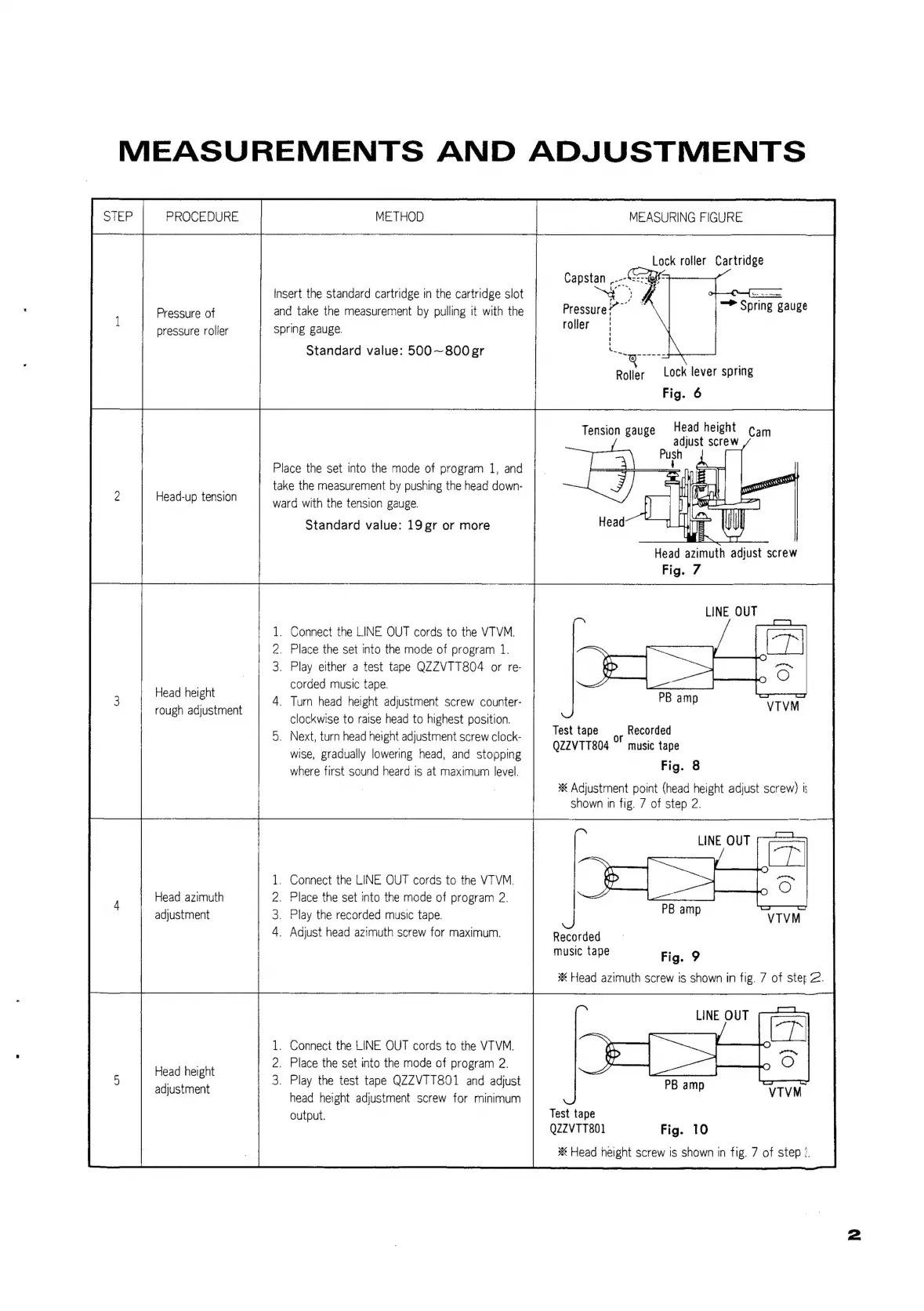

MEASUREMENTS AND ADJUSTMENTS
OFER PROCEDURE METHOD MEASURING FIGURE
Lock roller Cartridge
Capstan at ae
insert the standard cartridge in the cartridge slot
and take the measurement by pulling it with the
spring gauge.
Standard value: 500~800gr | S-..
Lock lever spring
: cl f = Soest
Pressure?” Spring gauge
roller
Pressure ot
pressure roller
5
Roller
Tension gauge Head height cam
adjust screw
Place the set into the mode of program 1, and
take the measurement by pushing the head down-
ward with the tension gauge.
Head-up tension
Standard value: 19gr or more
Head azimuth adjust screw
Fig. 7
LINE OUT
1. Connect the LINE OUT cords to the VTVM.
2. Place the set into the mode of program 1.
3. Play either a test tape QZZVTT804 or re
corded music tape.
4 Turn head height adjustment screw counter-
clockwise to raise head to highest position.
5. Next, turn head height adjustment screw clock-
wise, gradually lowering head, and stopping
where first sound heard is at maximum level.
Head height
PB amp
rough adjustment
Test tape a Recorded
QZZVTT804 ~=— music tape
Fig. 8
Adjustment point (head height adjust screw) is
Shown in fig. 7 of step 2.
. Connect the LINE OUT cords to the VTVM.
. Place the set into the mode of program 2.
. Play the recorded music tape.
. Adjust head azimuth screw for maximum.
Head azimuth
adjustment
BWM Fr
Recorded
music tape Fig. 9
* Head azimuth screw is shown in fig. 7 of step 2.
. Connect the LINE OUT cords to the VTVM.
2. Place the set into the mode of program 2.
3. Play the test tape QZZVTT801 and adjust
head height adjustment screw for minimum
output.
Head height
adjustment
Test tape
QZZVTT801 Fig. 10
* Head height screw is shown in fig. 7 of step /.
