Panasonic RS-808 - Performance Testing and Reference Data; Audio Performance Testing; Reference Performance Specifications

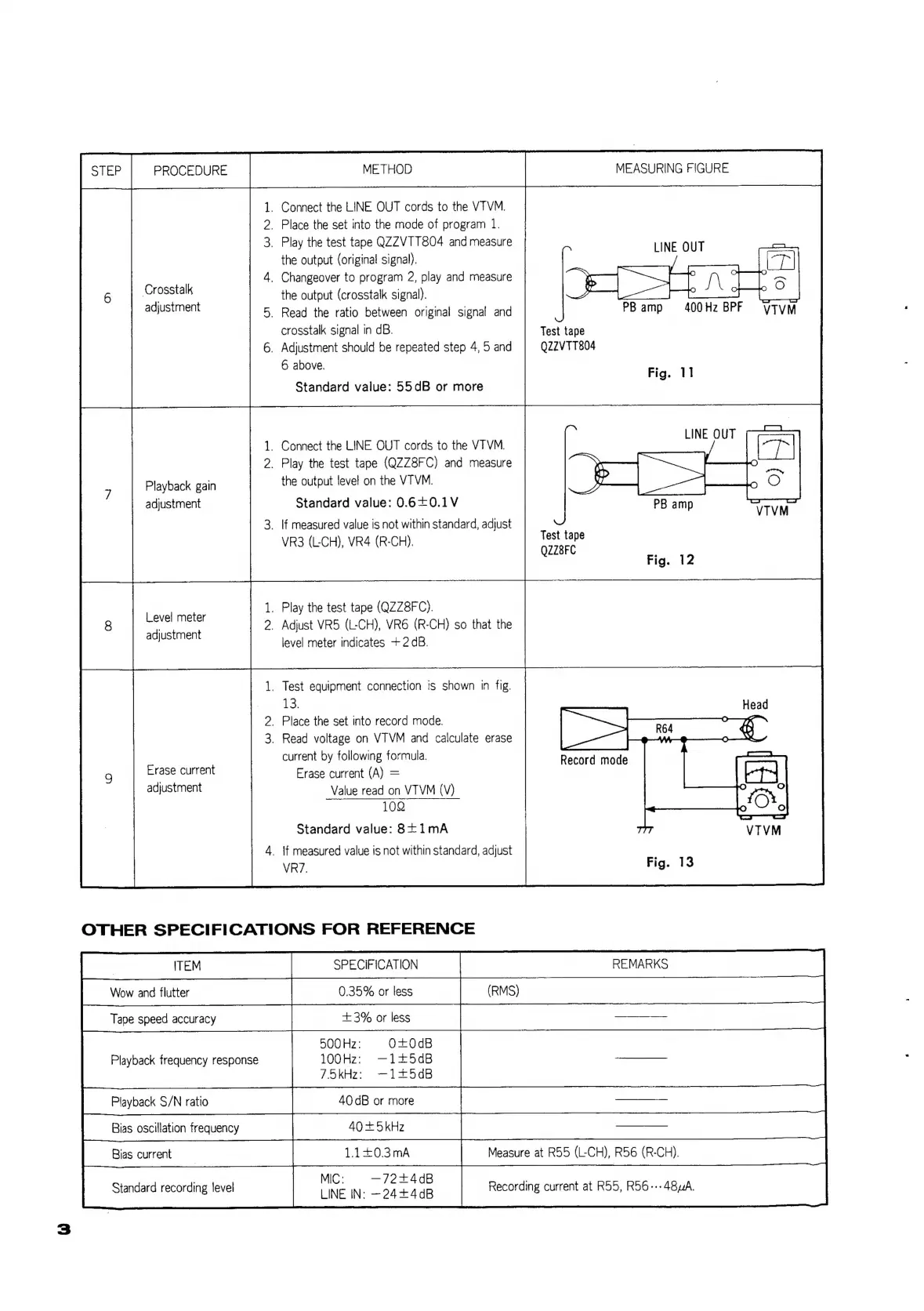

PROCEDURE METHOD MEASURING FIGURE
1. Connect the LINE OUT cords to the VTVM.
2. Place the set into the mode of program 1.
3. Play the test tape QZZVTT804 and measure
the output (original signal).
4. Changeover to program 2, play and measure
the output (crosstalk signal).
5. Read the ratio between original signal and
crosstalk signal in dB.
6. Adjustment should be repeated step 4, 5 and
6 above.
Crosstalk
adjustment
Playback gain
7
adjustment
Test tape
QZZVTT804
Standard value: 55dB or more
_ Connect the LINE OUT cords to the VITVM.
2. Play the test tape (QZZ8FC) and measure
the output level on the VIVM.
Standard value: 0.6+0.1V
3. If measured value is not within standard, adjust
VR3 (LCH), VR4 (R-CH).
Test tape
QZZ8FC
1. Play the test tape (QZZ8FC).
2. Adjust VR5 (L-CH), VR6 (R-CH) so that the
level meter indicates +2 dB.
Level meter
adjustment
. Test equipment connection is shown in fig.
13.
2. Place the set into record mode.
3. Read voltage on VITVM and calculate erase
current by following formula.
Erase current (A) =
Value read on VTVM (V)
10Q
Standard value: 8£1mA
4. {f measured value is not within standard, adjust
VR7.
Record mode
Erase current
adjustment
OTHER SPECIFICATIONS FOR REFERENCE
| TEM SPECIFICATION REMARKS
Wow and flutter 0.35% or less (RMS)
500 Hz: O+0dB
Playback frequency response
100Hz: =1i50B
Lokhz. -“1le50B
ae 7
eee ae ee
Measure at R55 (L-CH), R56 (R-CH).
MIC: —72+4dB
Standard recording level LINE IN: ~24+4dB Recording current at R55, Rb6---48uA.
