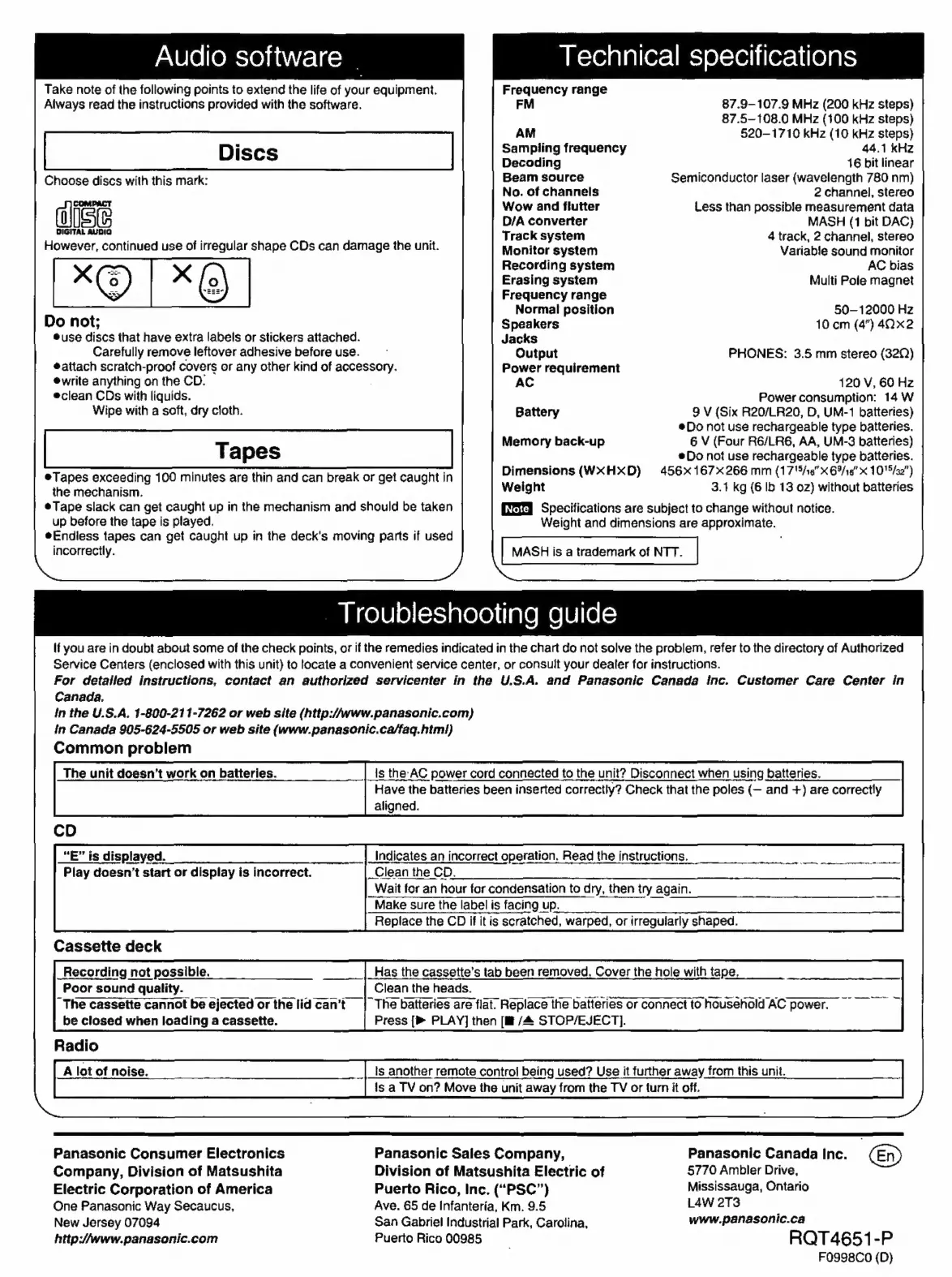

Panasonic RX-DS5

Audio software
Take note of the following points to extend the life of your equipment.
Always read the instructions provided with the software.
Choose discs with this mark:
DIGITAL AUDIO
However, continued use of irregular shape CDs can damage the unit.
Do not;
use discs that have extra labels or stickers attached.
Carefully remove leftover adhesive before use.
@attach scratch-proof covers or any other kind of aaa
®write anything on the CD:
*clean CDs with liquids.
Wipe with a soft, dry cloth.
Tapes exceeding 100 minutes are thin and can break or get caught in
the mechanism.
Tape slack can get caught up in the mechanism and should be taken
up before the tape is played.
eEndiess tapes can get caught up in the deck's moving parts if used
incorrectly.
Technical specifications
Frequency range
FM 87.9-107.9 MHz (200 kHz steps)
87.5—108.0 MHz (100 kHz steps)
AM 520-1710 kHz (10 kHz steps)
Sampling frequency 44.1 kHz
Decoding 16 bit linear
Beam source Semiconductor laser (wavelength 780 nm)
No. of channels 2 channel, stereo
Wow and flutter Less than possible measurement data
D/A converter MASH (1 bit DAC)
Track system 4 track, 2 channel, stereo
Monitor system Variable sound monitor
Recording system AC bias
Erasing system Multi Pole magnet
Frequency range
Normal position
Speakers
Jacks
Output PHONES: 3.5 mm stereo (320)
Power requirement
AC 120 V, 60 Hz
Power consumption: 14 W
Battery 9 V (Six R20/LR20, D, UM-1 batteries)
Do not use rechargeable type batteries.
6 V (Four R6/LR6, AA, UM-3 batteries)
Do not use rechargeable type batteries.
Dimensions (WXHXD) 456x167x266 mm {17'5/8" X 6%/16" x 1015/32")
Weight 3.1 kg (6 Ib 13 oz) without batteries
CZA Specifications are subject to change without notice.
Weight and dimensions are approximate.
MASH is a trademark of NTT.
50-—12000 Hz
10 cm (4”) 40 x2
Memory back-up
Troubleshooting guide
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized
Service Centers (enclosed with this unit} to locate a convenient service center, or consult your dealer for instructions.
For detailed instructions, contact an authorized servicenter in the U.S.A. and Panasonic Canada inc. Customer Care Center in
Canada.
in the U.S.A. 1-800-211-7262 or web site (http:/jwww.panasonic.com)
in Canada 905-624-5505 or web site (www.panasonic.ca/faq.html)
Common problem
The unit doesn’t work on batteries.
is the AC power cord connected to the unit? Disconnect when using batteries.
Have the batteries been inserted correctly? Check that the poles (— and +) are correctly
aligned.
Wait for an hour for condensation to dry, then try again.
Make sure the label is facing up.
Replace the CD if it is scratched, warped, or irreguiarly shaped.
Cassette deck
Recording not possible.
Poor sound quality.
“The cassette cannot be ejected or the lid can't _
be closed when loading a cassette.
Has the cassette’s tab been removed. Cover the hole with tape.
Clean the heads.
~ The batteries are flat. Replace the batteries or connect to household AC power. —
Press [> PLAY] then [if /4 STOP/EJECT].
A lot of noise. _|_ls another remote control being used? Use it further away from this unit.
ig a TV on? Move the unit away from the TV or turn it off.
