Panasonic S-36MM1E5

6-27
Electrical Data
1
2
3
4
5
6
7
8
9
2. Indoor Unit

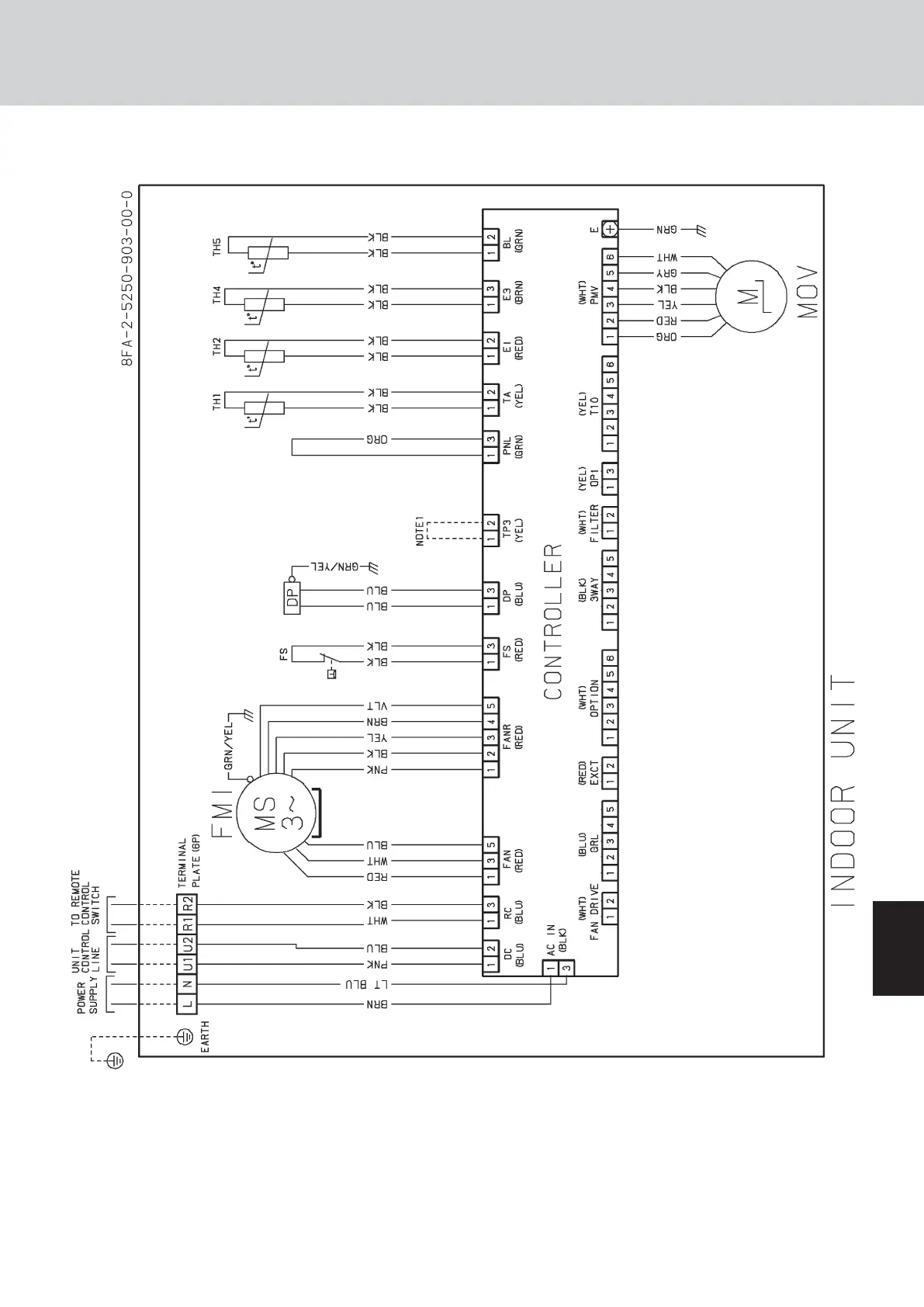

(9) Electric Wiring Diagram S-15MM1E5/22MM1E5/28MM1E5/36MM1E5/45MM1E5/56MM1E5
