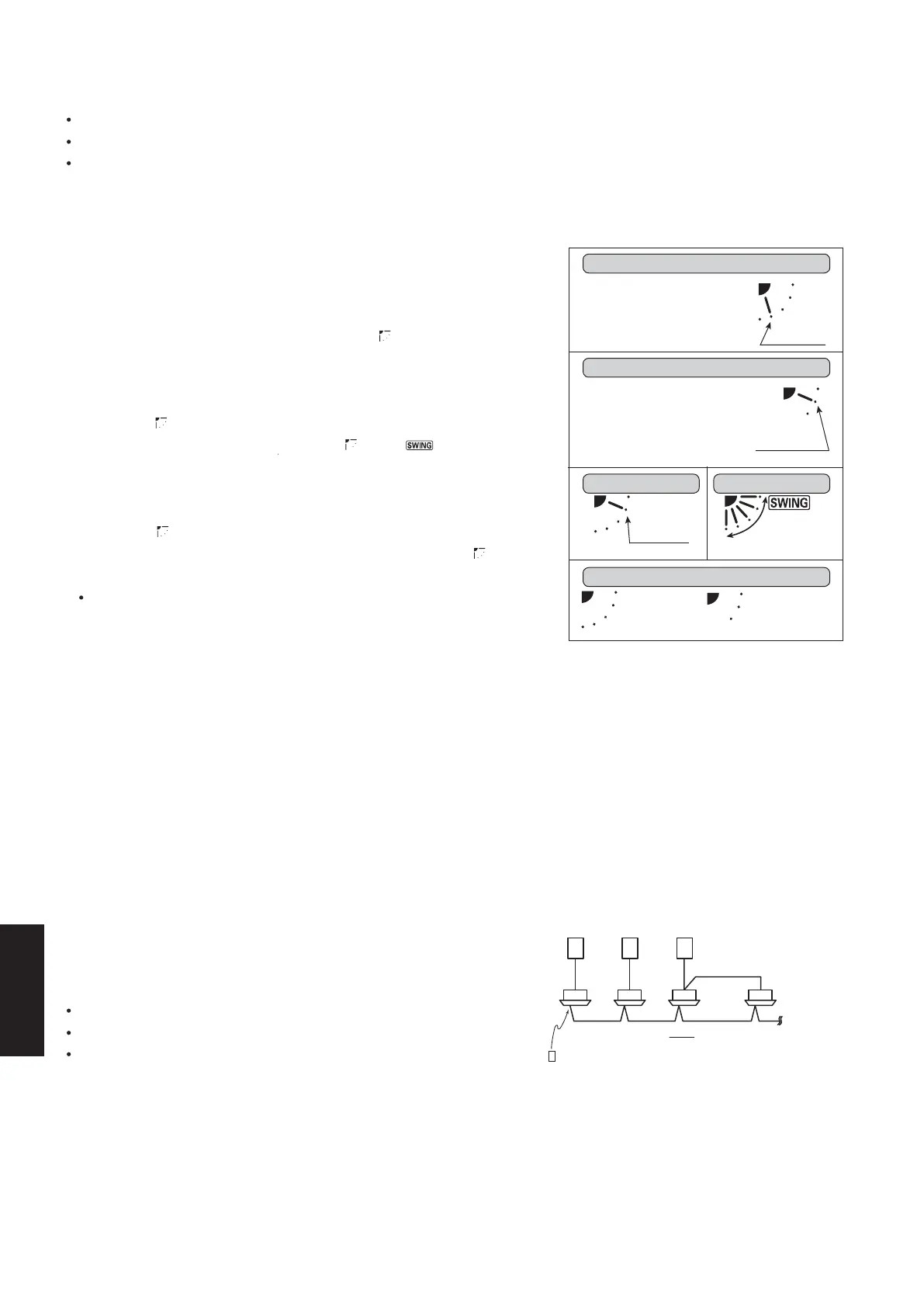

8-6. Adjusting the Wind Direction
8-7. Operating Multiple In/Outdoor Units Simultaneously (Group Control)
Please face the flap (up-down wind
direction plate) downwards. If it faces
upwards, the warm air will not reach
the floor level.
In the Heat Mode
Please face the flap (up-down wind
direction plate) upwards. If the plate
faces downwards, condensation
may form and drip from around
the air outlet.
In the Cool and Dry Modes
In the Fan Mode In All Modes
Displays with Swing Stopped
Initial Setting
Initial Setting
Initial Setting
Moves Constantly
Fan/Heat Modes
Cool/Dry Modes
Never try to manually move the flap (up-down wind direction plate) that is operated by the remote control.
When the unit stops, the flap (up-down wind direction plate) automatically faces downwards.
When the unit is in heating standby, the flap (up-down wind direction plate) faces upward.
Also, bear in mind that the flap starts swinging after the heating standby mode is released, but the display on the remote
control indicates Auto Flap during standby heating as well.
One remote control can operate up to eight indoor units.
All the indoor units have identical settings.
Set temperature sensing to the indoor unit (Main Sensor).
CZ-RWSU2 / CZ-RWST2 /
CZ-RWSL2 / CZ-RWSY2 / Indoor Unit (CZ-RWSK2) / CZ-RWST3
Setting the Wind Direction
While the unit is operating, every time you press
, the direction the flap
faces changes.
Setting Flap to Swing
If you press
to set the flap (up-down wind direction plate) in its most
downward facing position, and then press
again, is displayed
and the flap swings automatically up and down.
Stopping Flap Swing
If you press
again while the flap is swinging, you can stop the flap from
swinging and set it in place as desired. Thereafter, if you press
, you can
set the wind direction starting from the most upward position.
When the unit is in the Cool or Dry modes, the flap cannot stop facing
downwards. If you try to stop the flap from swinging while it is facing
downwards, it will continue moving until it is in the third position from
the top.
CZ-RWSC2
The available functions differ depending on the indoor unit being used.
The wind direction cannot be set via remote control for any models other than those noted below.
For more information, please refer to the users’ manual that came with your indoor unit.
Four-direction Ceiling Cassette Models, Bi-directional Ceiling Cassette Models,
Unidirectional Cassette Models for High Ceilings, Ceiling Suspended Models, Wall-Mounted Models
Group control works well for providing air conditioning to one,
large room with more than one air conditioning units.
Please refer to Setting the Wind Direction and Stopping Flap Swing.
Indoor Unit
Indoor Unit
Signal Line
Receiver
Wireless Remote Control
