16 Checking for major P.C.Bs
Note:
Checking of all major P.C.Bs (Main P.C.B., Panel P.C.B., Transformer P.C.B., Deck P.C.B., Deck Mechanism P.C.B., Mic
P.C.B., Power P.C.B. and Power Amp P.C.B.) can be carried out using below procedures.
For the disassembling procedures, refer to Section 15.
16.1. Checking of Main P.C.B.
1. Remove Top Cabinet.
2. Disassemble DVD Changer Unit.

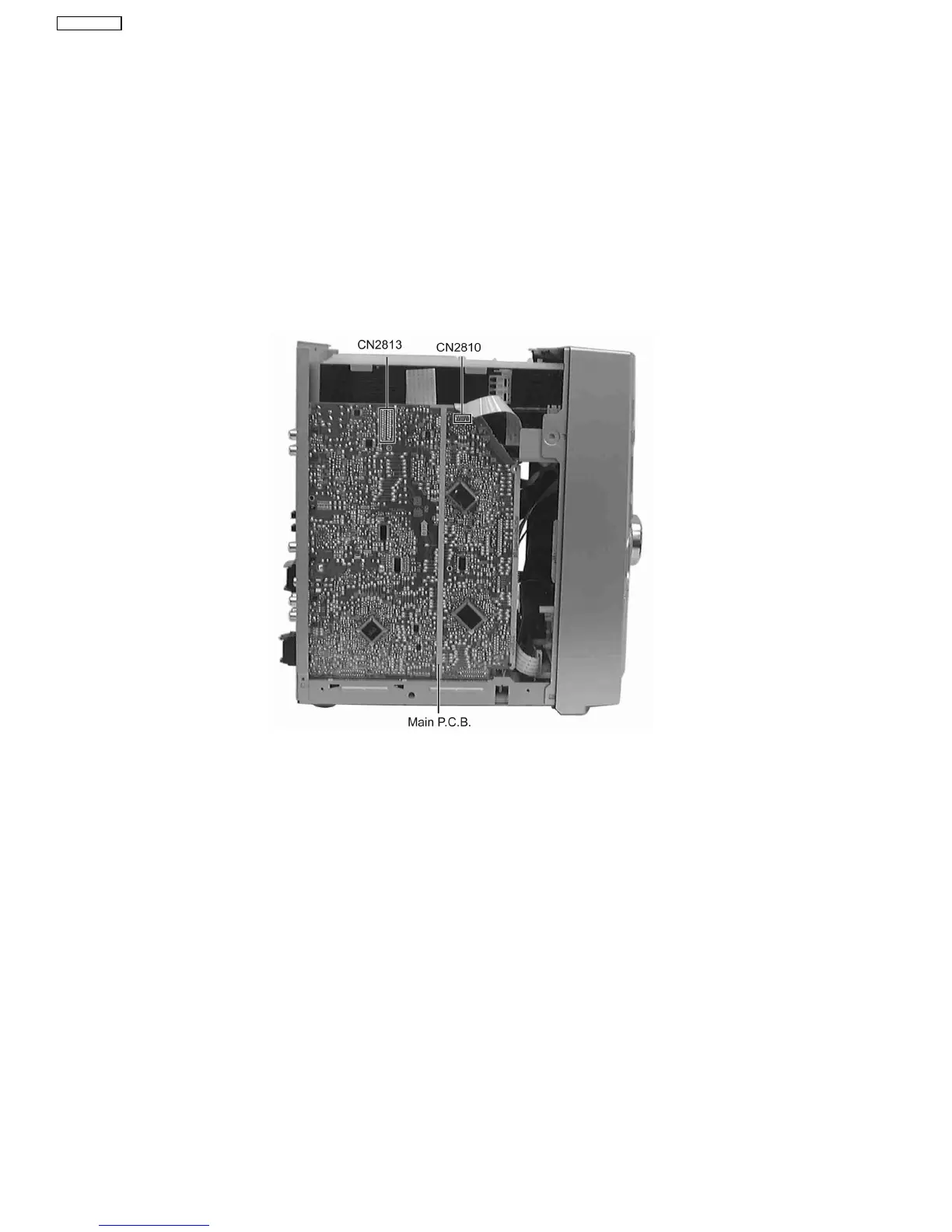

3. Connect FFC cables (CN2810 & CN2813) from Main P.C.B.
