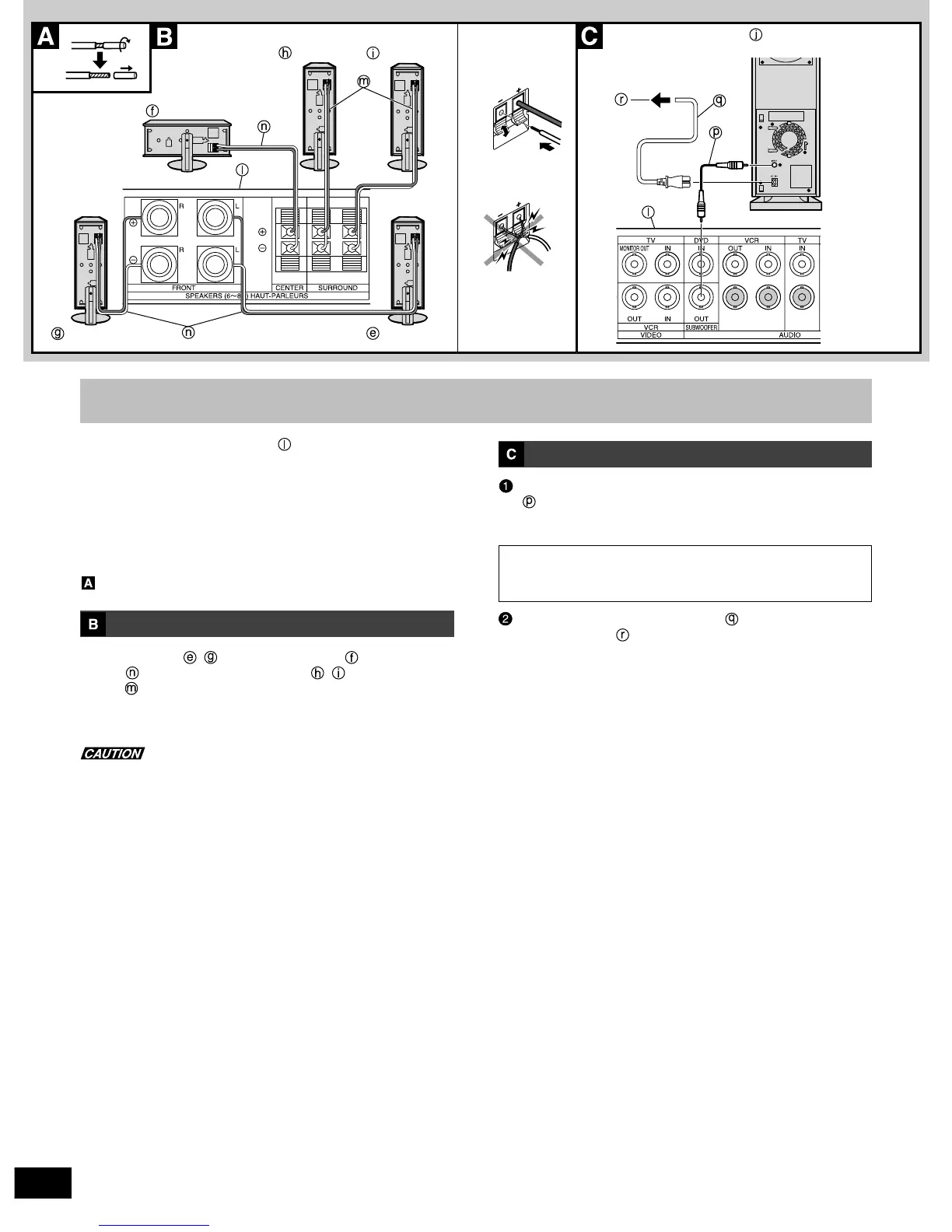

Connections
Connect to a receiver or amplifier ( ) with 6-Ω impedance for the
front, center, and surround speakers, and a pin-type output terminal
for an active subwoofer.
Before connection
Turn off the other equipment.
Do not connect the AC mains lead until all other cables and cords
are connected.
Twist off the vinyl tip.
Front, center, and surround speakers
Connect the front ( , ) and center speakers ( ) with the 4-meter
cables ( ) and the surround speakers ( , ) with the 10-meter
cables ( ).
Be sure to connect only positive (copper) wires to positive (+) termi-
nals and negative (silver) wires to negative (-) terminals.
Never short-circuit positive (+) and negative (-) speaker wires.
Subwoofer
Connect with the included monaural connection cable
(
) to the receiver or amplifier’s subwoofer output
terminal.
For the United Kingdom:
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD
ON PAGE 2 BEFORE PROCEEDING TO STEP 2.
Connect the AC mains lead ( ) to the household
mains socket (
).
SB-FS702
SB-PC702
SB-FS702
SB-FS702
SB-FS702
SB-WA54
SB-WA55
