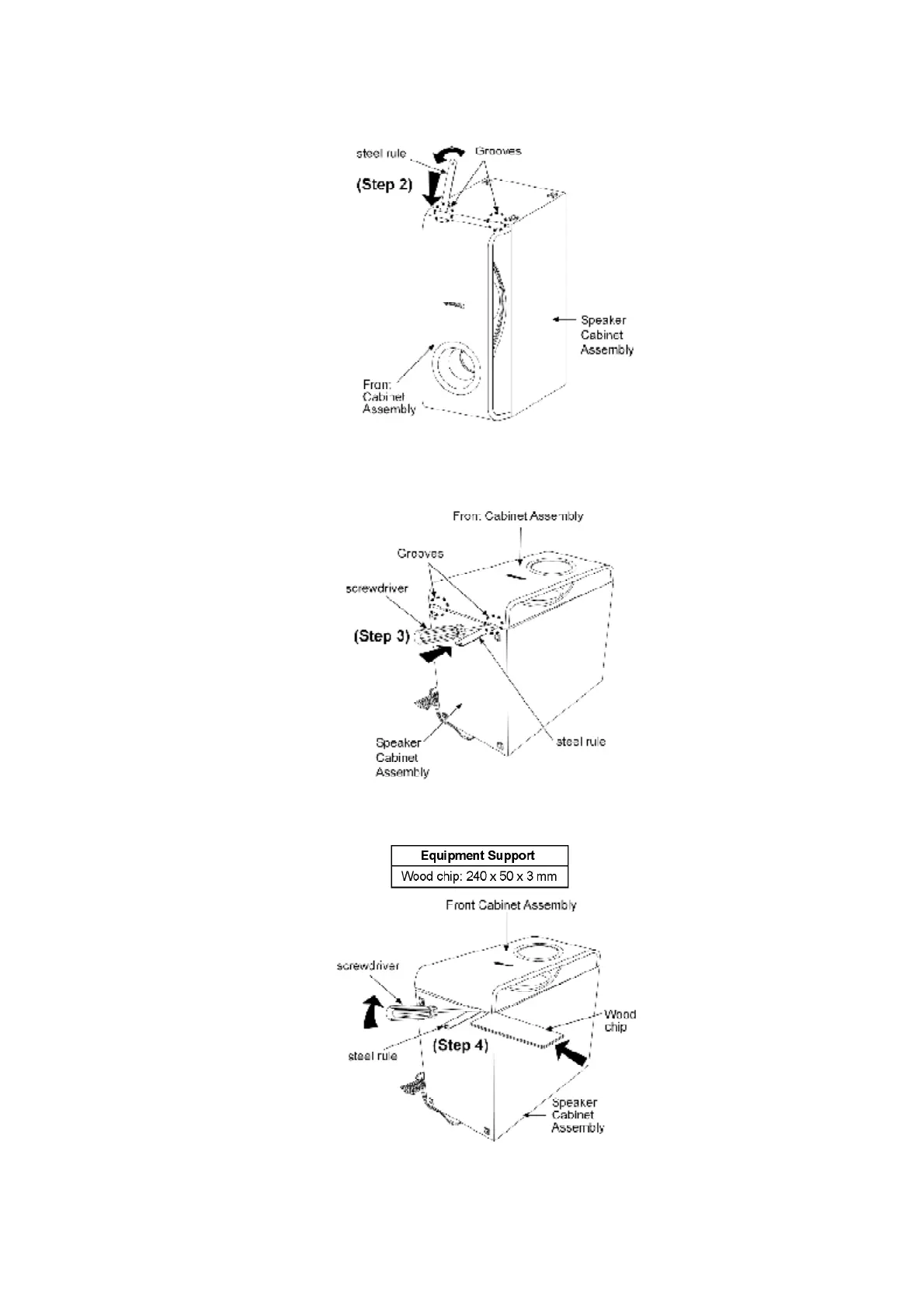

Step 1: Upset the unit as shown above.
Step 2: Insert a steel rule into the grooves of the Speaker unit. Push the steel rule forward and
backward as arrow shown.
Step 3: Insert a flathead screwdriver into the grooves as arrow shown. Ensure that the
screwdriver is above the Steel rule.
Step 4: Use the screwdriver to slightly push up the Front Cabinet Assembly as arrow shown
