Step 4: Remove the Woofer by detaching the (+) white and (-) blue wires.

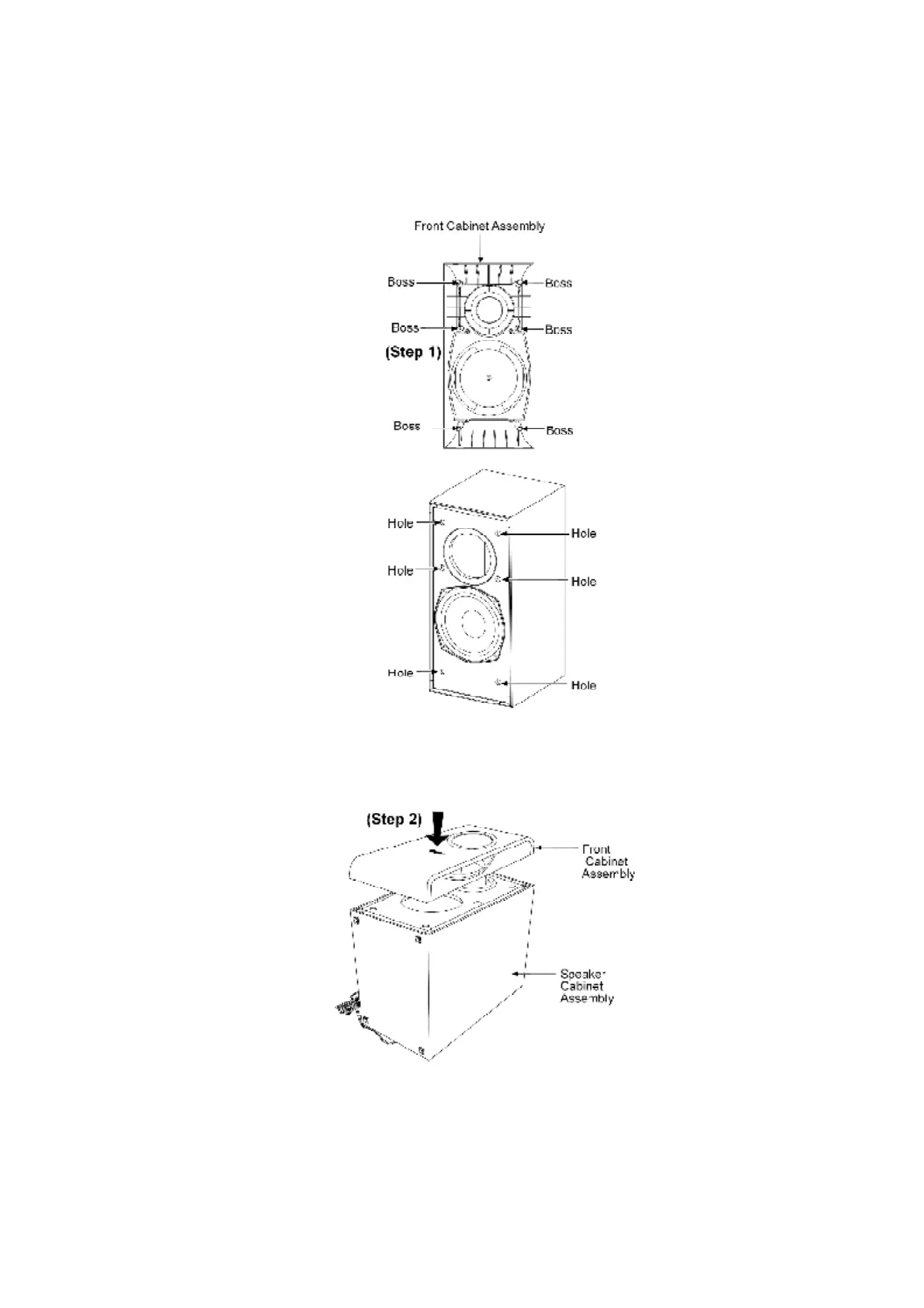

1.4. Assembly of Subwoofer Unit
Step 1: Scrape off using the scriber and clean up the remaining glue at the 6 bosses and 6 holes
as arrow shown and replace with the normal glue.
Step 2: Fix the Front Cabinet Assembly firmly back to the Speaker Cabinet Assembly.
2. Connection of the Speaker Cables
- Be sure to connect speaker cables before connecting the AC
