- 28 -

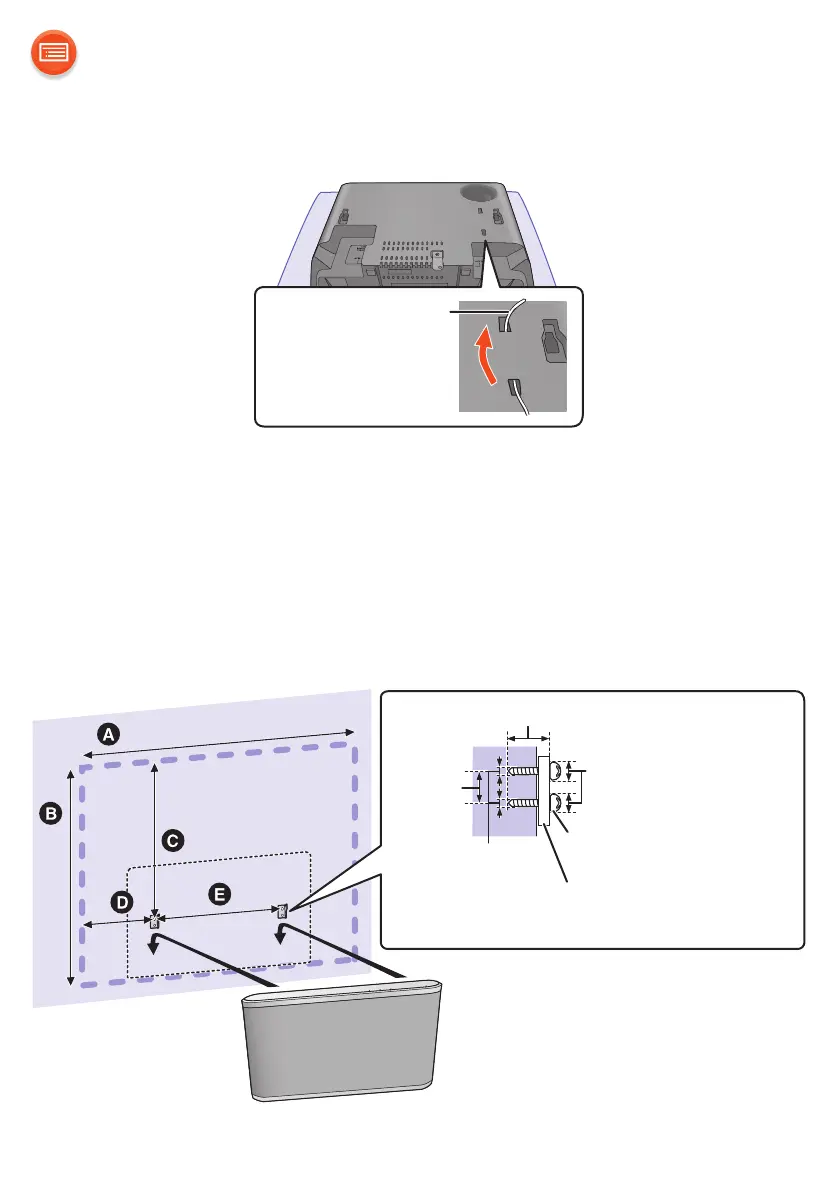

2 Attach the fall prevention cord to the unit.
≥ Use a cord that is capable of supporting over 50 kg (110 lbs) with a diameter
of about 1.5 mm (
1
/16q).
3 Attach the wall mount brackets to the wall, and then hook the
unit securely onto them.
≥ Make sure that the wall and the screws are capable of supporting at least
50 kg (110 lbs).
≥ Use a level to ensure both wall mount brackets are level.
≥ Connect the AC power supply cord (AC mains lead) to the unit before
hanging the unit onto the wall. (l 10)
At least 30 mm (1
3
/16q)
‰7.5 mm (
9
/32q) to
‰9.4 mm (
3
/8q)
‰4 mm
(
5
/32q)
Wall mount bracket
(supplied)
Screw (not supplied)
Space required
A 573 mm (22
9
/16q)
B 524 mm (20
5
/8q)
C 407 mm (16
1
/32q)
D 156 mm (6
5
/32q)
E 248 mm (9
3
/4q)
13 mm
(
1
/2q)
