Panasonic SC-BT235 - Main Unit Overview; Main Unit Front Panel; Main Unit Rear Panel

Getting started
7
VQT2M13
1 Standby/on switch (POWER Í/I) (> 19)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Power indicator
The indicator lights when this unit is turned on.
3 Connect iPod/iPhone (> 32)
4 Adjust the volume of the main unit
5 Open or close the disc tray (> 22)
6 Disc tray
7 SD card slot (> 22)
8 [BT730] [BT330] Connect Auto speaker setup microphone
9 Display (FL display)
≥ “SRD” (SURROUND) lights when sound is output to the
surround speakers.
(For the U.S.A. and Canada)
≥ The display is turned off when the volume is adjusted to
“0”. (> 37)
10 Remote control signal sensor
Distance: Within approx. 7 m (23 ft.)
Angle: Approx. 20
o
up and down, 30
o
left and right
11 Select the source (> 23)
12 Stop (> 25)
13 Start play (> 25)
∫ If the front cover comes off
1 Hold rear side of main unit by one hand and match up left
or right side protruding hook on the cover first with the
corresponding slot on the unit.
2 Push the hook firmly towards the unit until it clicks into
place. Then push the succeeding hooks one by one until
all have clicked into place.
3 Check that the cover now moves correctly.
≥ If it does not, remove it and repeat the above procedure.
1 AC IN terminal (> 18)
* (For units with PX printed on the packaging)
The terminal is not polarized.
2 Speaker terminals (> 13)
3 Cooling fan
4 [BT730] [BT330] [BT230] USB port for optional wireless
adaptor (> 17)
5 HDMI AV OUT terminal (> 15)
6 FM radio antenna terminal (> 16)
7 DIGITAL AUDIO IN terminals (> 14 , 15)
Terminal 1 is designated for connection with the TV.
Terminal 2 can be used with equipment other than the STB.
8 [BT730] [BT330] [BT230] Digital transmitter dock
9LAN port (> 17)
10 VIDEO OUT terminal (> 14)
11 AUX terminal (> 14)
(For units with PX printed on the packaging)
12 AC Voltage selector (> 18)

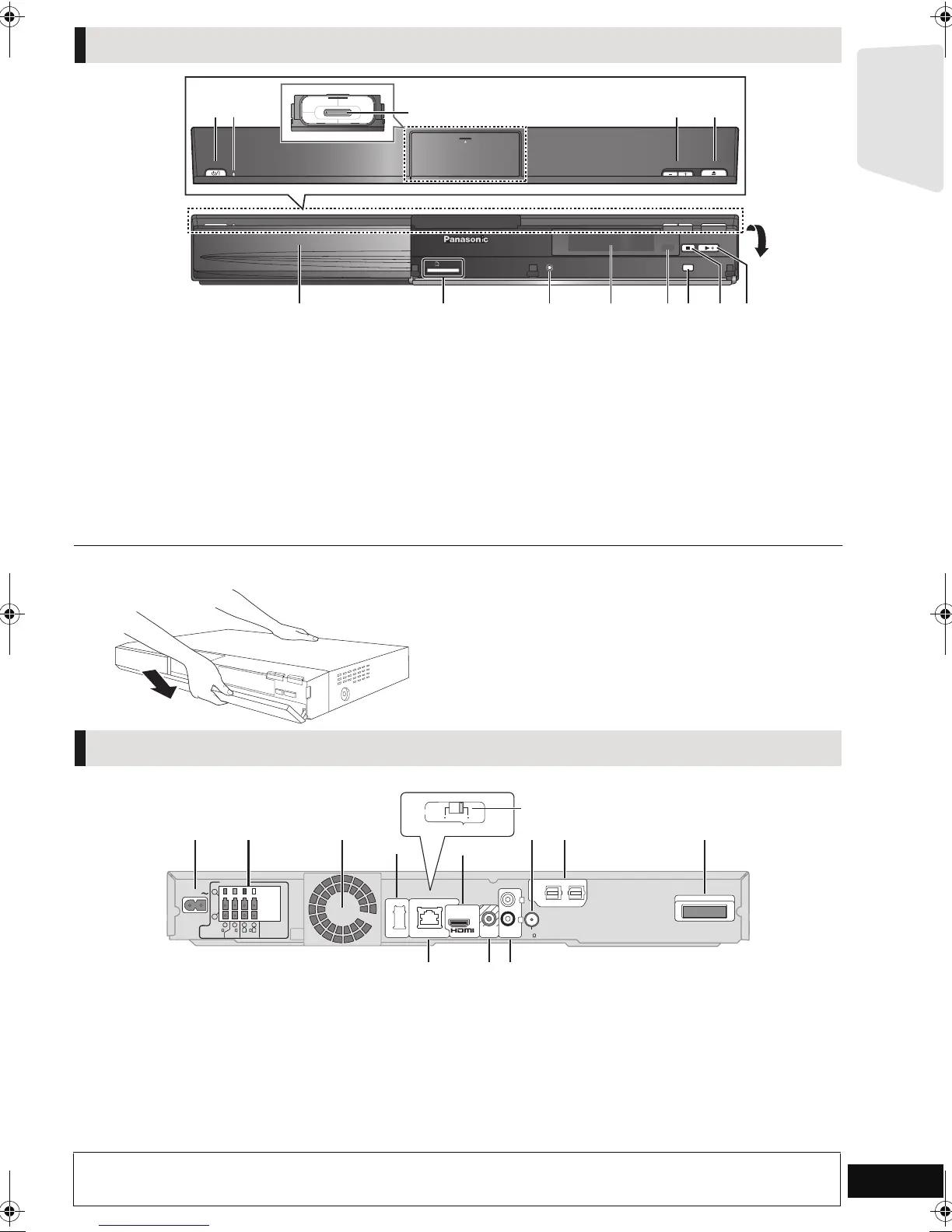

Main unit (Front)
OPEN/CLOSEVOLUME POWER
iPod
SELECTOR
SD CARD
SETUP MIC
1 2
3
45
6 7 8 9 10 11 12 13
Pull open.
e.g., [BT730]
Main unit (Rear)
A
5
2
1
FRONT CENTER
R L
-
LAN
AV
OUT
VIDEO
OUT
AUX
LAN
WIRELESS
RÉSEAU LOCAL
OPTICAL
21
DIGITAL AUDIO IN
L
R
AC IN
5
2
1
366
FRONT CENTERSUBWOOFER
R L
-
LAN
AV
OUT
VIDEO
OUT
AUX
LAN
WIRELESS
OPTICAL
21
DIGITAL AUDIO IN
DIGITAL TRANSMITTER
+
6
L
R
FM ANT
75
()
(ARC)
(10BASE-T/100BASE-TX)
1 2 3
4
5
6 7 8
109 11
12
ニ
220
240V
110
127V
VOLT ADJ
e.g., [BT730]
(For the U.S.A. and Canada) Saving energy
This unit is designed to conserve its power consumption and save energy.
≥ This unit will automatically turn to standby mode after 30 minutes if it is inactive.
