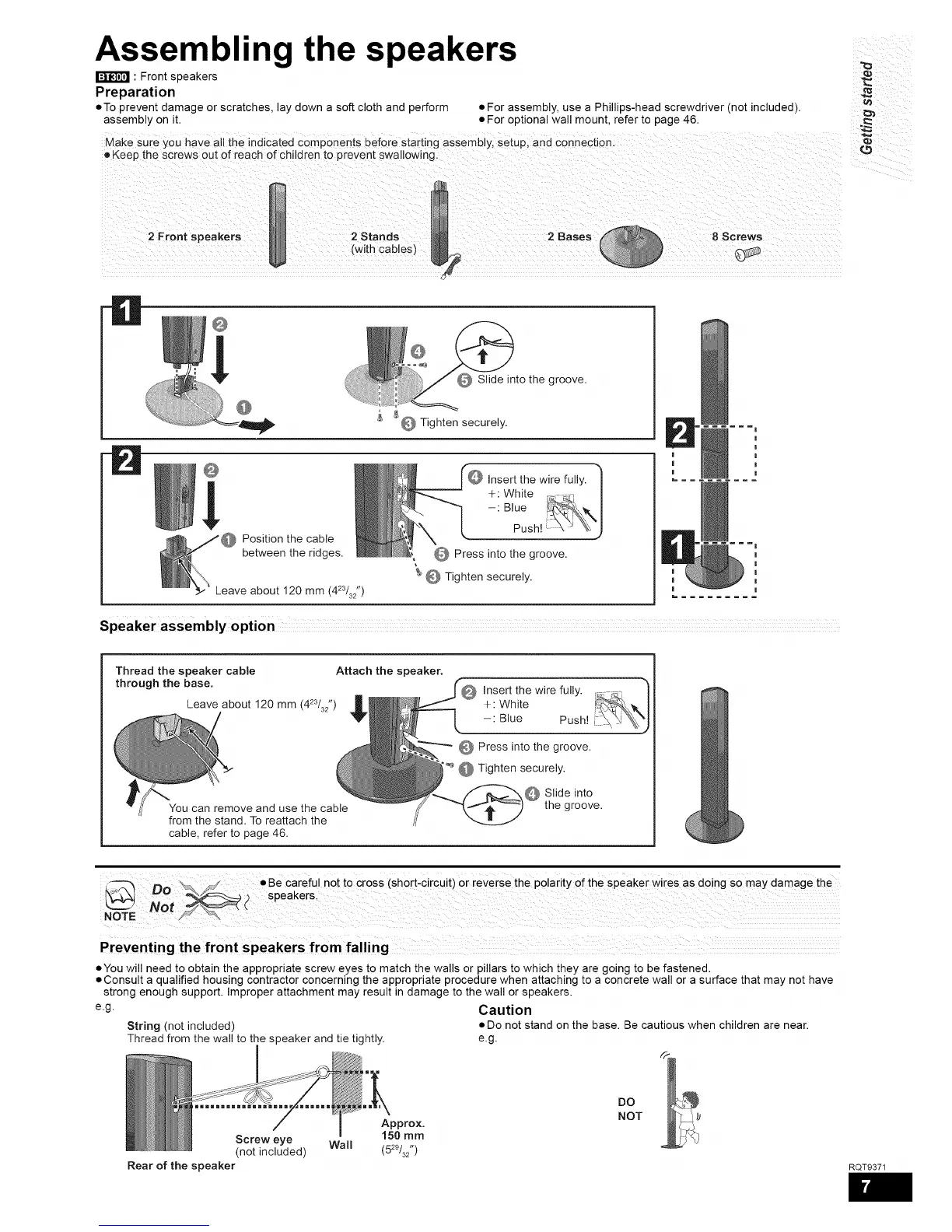

Assembling the speakers
: Front speakers
Preparation
• To prevent damage or scratches lay down a soft cloth and perform • For assembiy, use a Phillips-head screwdriver tnot included ).
assembly on t. • For optional wall mount, refer to page 46.
Make sure you have all the indicated components before starting assembly, setup, and connection
o Keep the screws out of reach of children to prevent swallowing.
2 Front speakers
2 Stands
(',withcables)
2 Bases 8 Screws
!
Q Slide into the groove.
&Q Tighten securely.
!
Position the cable
between the ridges.
i|@_ Insert the wire fully.
+: White ,_:,_:,,
-: Blue
Push!:\ "_ %
', _ Press into the groove.
I__ Tighten securely.
Leave about 120 mm (423/32")
Thread the speaker cable Attach the speaker.
through the base.
Leave about 120 mm (423/32")
You can remove and use the cable
from the stand. To reattach the
cable, refer to page 46.
Insert the wire fully.
+ : White
-: Blue Push!
Press into the groove.
'_ @ Tighten securely.
Slide into
the groove.
• You will need to obtain the appropriate screw eyes to match the walls or pillars to which they are going to be fastened.
• Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that may not have
strong enough support. Improper attachment may result in damage to the wall or speakers.
e.g. Caution
String (not included) •Do not stand on the base. Be cautious when children are near.
Thread from the wall to the speaker and tie tightly, e.g.
Screw eye
(not included)
Rear of the speaker
Wall
Approx.
150 mm
(529/32")
DO
NOT
RQT9371
To Next Page
