Panasonic SC-BTT196 - Main Unit Identification; Front Panel Controls and Display; Rear Panel Connections and Terminals

Getting started
9
VQT3X51
1 Standby/on switch [Í/I] (> 15)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Open or close the disc tray (> 17)
3 Adjust the volume of the main unit
4 Disc tray
5 SD card slot (> 17)
6USB port (> 17, 22)
7 Remote control signal sensor
Distance: Within approx. 7 m (23 ft.)
Angle: Approx. 20
o
up and down, 30o left and
right
8 Display
1 AC IN terminal (> 14)
2 Speaker terminals (> 12)
3 Cooling fan
4 LAN port (> 14)
5 USB port (> 14, 26)
6 HDMI AV OUT (ARC) terminal (> 12)
7 DIGITAL AUDIO IN terminal (> 12 , 13)
8 AUX terminal (> 12)
9 FM radio antenna terminal (> 13)

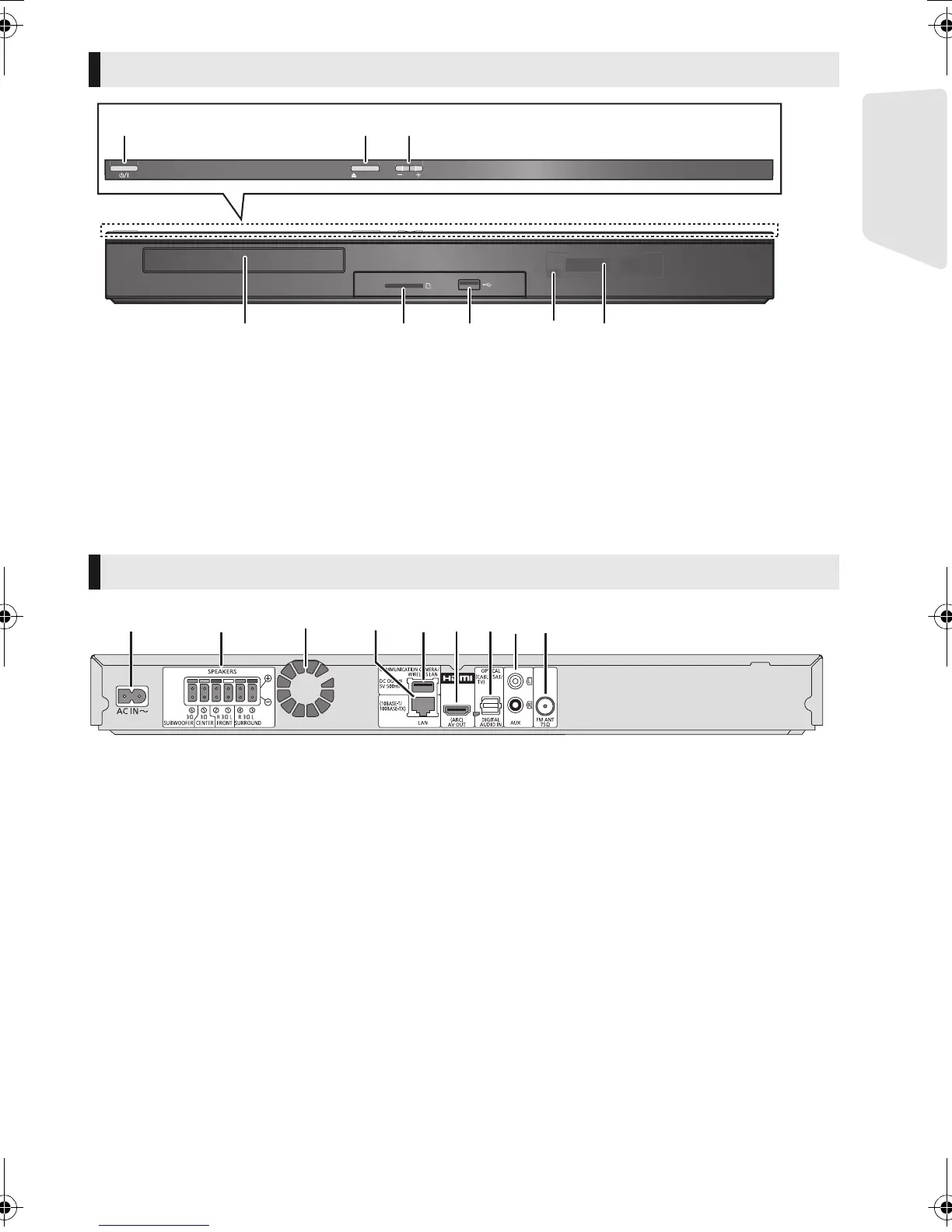

Main unit (Front)
VOL
OPEN/CLOSE
SD CARD
iPod
123
45 8
6 7
Main unit (Rear)
1 2 3 4 5 6 7 8 9
