Panasonic SC-BTX75

6
VQT2Q72

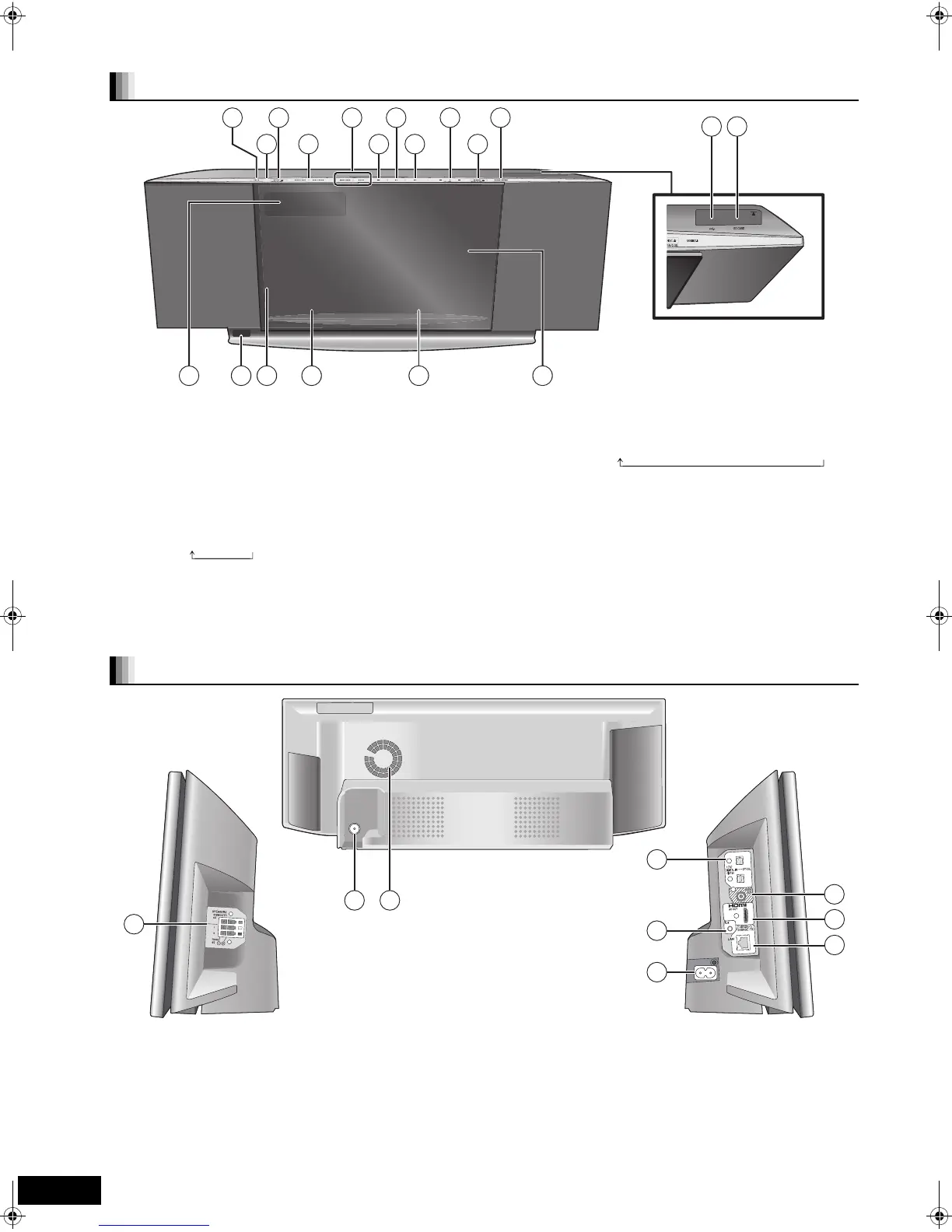

Control reference guide (main unit)
1 Standby/on switch (Í/I) (> 12)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Status indicator
This indicator lights up when the unit is turned on and goes
out in standby mode.
3 Open or close the iPod side sliding door (> 12)
4 Skip or slow-search play (> 17)/Select the radio stations
(> 24)
5 Select the source (> 14)
[BD/SD]: BD/DVD )SD
[iPod]: IPOD
“SD” on the unit’s display is not displayed when the SD card is
not in the SD card slot.
6 Stop (> 17)
7 Pause (> 17)
8 Start play (> 16)
9 Adjust the volume of the main unit (> 17)
: Open or close the disc side sliding door (> 12)
; Select the source (> 14)
[RADIO/EXT-IN]: FM )USB )AUX )D-IN 1 )D-IN 2
“ USB ” on the unit’s display is not displayed when a USB
device is not inserted into the USB port.
< Display
= Remote control signal sensor
> iPod
Docking switch lever (> 28)
? Connect iPod (> 28)
@ Disc tray
( > 12)
A Sliding door
B USB port (> 16)
C SD card slot (> 16)
1 SPEAKERS terminal (> 8)
2 FM Radio antenna terminal (> 10)
3 Cooling fan
4 OPTICAL DIGITAL IN terminals
Terminal 1(TV) is designated for connection with the TV. ( > 9)
Terminal 2(STB) can be used for connection with devices
other than the STB. (> 10)
5 AUX terminal (> 9)
This terminal can also be used for equipment other than the TV.
6 AC IN terminal (> 11)
7 VIDEO OUT terminal (> 9)
8 HDMI AV OUT terminal (> 9)
9 LAN port (> 11) [BTX77]
Front and top panel
2
1
1413 15 16 17
3
8
9 11
10
18 19
7
4
5
6
12
Side and rear panel terminals
FM ANT
75 Ω
FM
ANT
75
Ω
1
2
6
3
7
8
9
4
5
