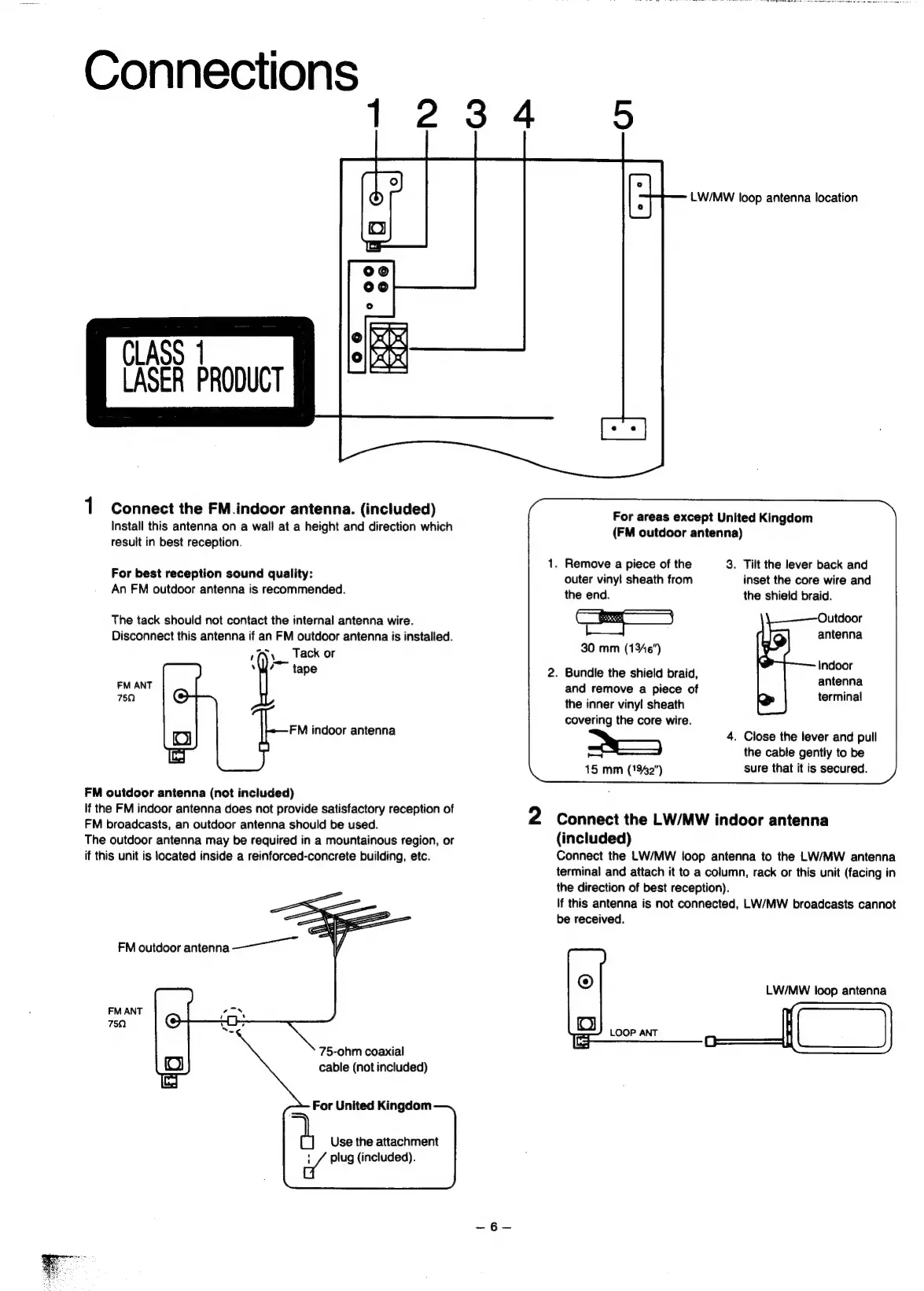

Panasonic SC-CH55 - Connections; Connect the FM indoor antenna. (included); FM outdoor antenna (not included); Connect the LW;MW indoor antenna (included)

Connections
123 4 rs)
CLASS 1
LASER PRODUCT
1 Connect the FM.indoor antenna. (included)
Install this antenna on a wall at a height and direction which
result in best reception.
For best reception sound quality:
An FM outdoor antenna is recommended.
The tack should not contact the internal antenna wire.
Disconnect this antenna if an FM outdoor antenna is installed.
+7\\__ Tack or
‘7 tape
FM indoor antenna
FM outdoor antenna (not included)
If the FM indoor antenna does not provide satisfactory reception of
FM broadcasts, an outdoor antenna should be used.
The outdoor antenna may be required in a mountainous region, or
if this unit is located inside a reinforced-concrete building, etc.
75-ohm coaxial
cable (not included)
For United Kingdom
tt Use the attachment
na plug (included).
LW/MW loop antenna location
For areas except United Kingdom
(FM outdoor antenna)
. Remove a piece of the 3. Tilt the lever back and
outer viny! sheath from inset the core wire and
the end. the shield braid.
Cae Outdoor
antenna
30 mm (1%6")
Indoor
antenna
terminal
. Bundle the shield braid,
and remove a piece of
the inner vinyl sheath
covering the core wire.
— 4. Close the lever and pull
— the cable gently to be
15 mm (19%42”) sure that it is secured.
2 Connect the LW/MW indoor antenna
(included)
Connect the LW/MW loop antenna to the LW/MW antenna
terminal and attach it to a column, rack or this unit (facing in
the direction of best reception).
If this antenna is not connected, LW/MW broadcasts cannot
be received.
LW/MW loop antenna
LOOP ANT
