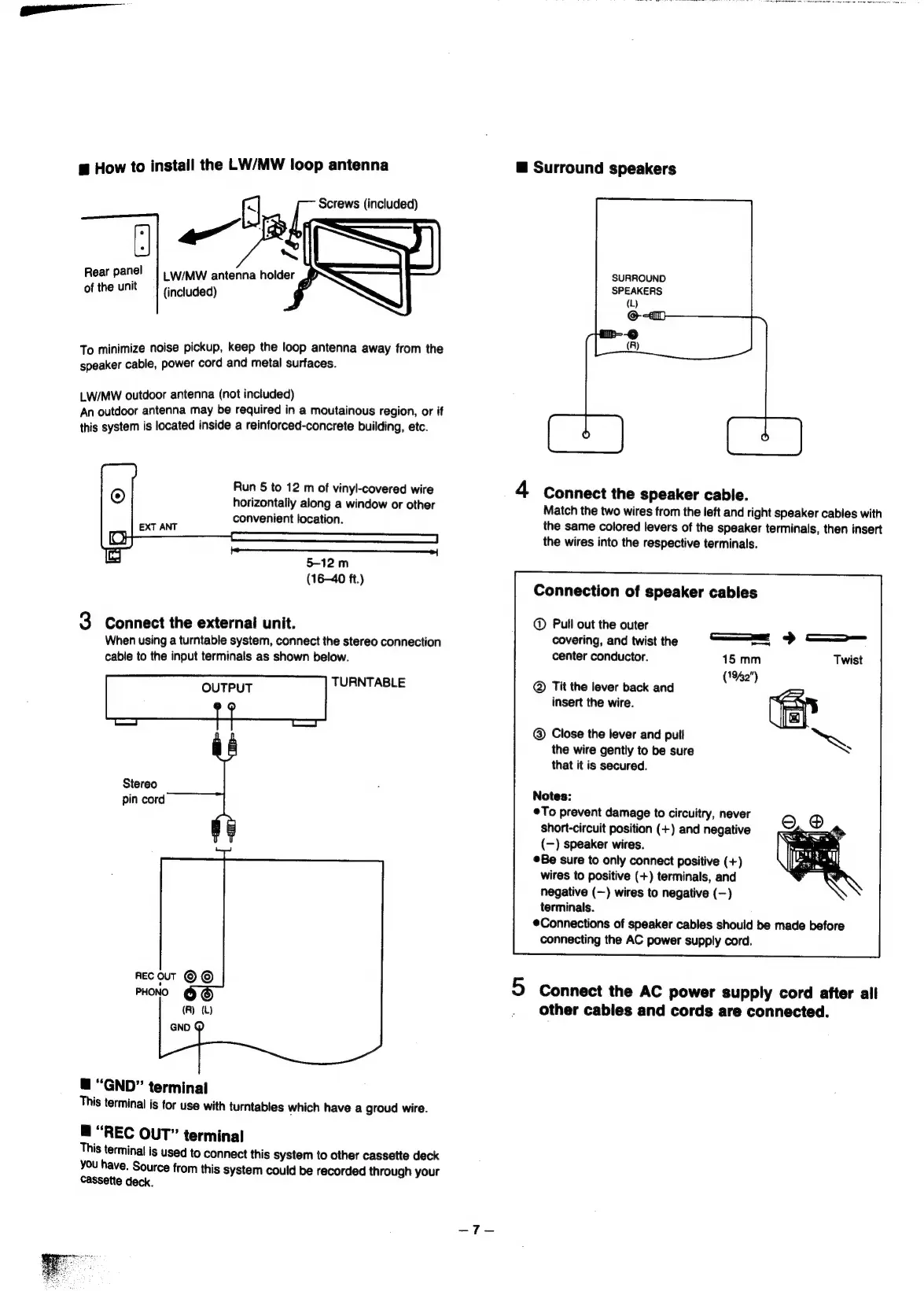

How
to
install
the
LW/MW
loop
antenna
Screws (included)
ww
Rear panel | | w/w antenna holder y
of the unit | (included) ;
To minimize noise pickup, keep the loop antenna away from the
speaker cable, power cord and metal surfaces.
LW/MW outdoor antenna (not included)
An outdoor antenna may be required in a moutainous region, or if
this system is located inside a reinforced-concrete building, etc.
Run 5 to 12 m of vinyl-covered wire
horizontally along a window or other
convenient location.
5-12 m
(16-40 ft.)
3 Connect the external unit.
When using a turntable system, connect the stereo connection
cable to the input terminals as shown below.
TURNTABLE
Stereo
pin cord
REC OUT © ©
PHONO
(R) (L)
@
“GND”
terminal
This
terminal
is
for
use
with
turntables
which
have
a
groud
wire.
@
“REC
OUT”
terminal
This
terminal
is
used
to
connect
this
system
to
other
cassette
deck
you
have.
Source
from
this
system
could
be
recorded
through
your
Cassette
deck.
@ Surround speakers
SURROUND
SPEAKERS
4 Connect the speaker cable.
Match
the
two
wires
from
the
left
and
right
speaker
cables
with
the
same
colored
levers
of
the
speaker
terminals,
then
insert
the wires into the respective terminals.
Connection of speaker cables
@® Pull out the outer
covering,
and
twist
the
-§
——==E_
9
center
conductor.
15
mm
(1%2")
@ Tit the lever back and
insert the wire.
@ Close the lever and pull
the wire gently to be sure
that it is secured.
Notes:
©To prevent damage to circuitry, never
short-circuit position (+) and negative
(—) speaker wires.
©Be sure to only connect positive (+)
wires to positive (+) terminals, and
negative (—) wires to negative (—)
terminals.
®Connections of speaker cables should be made before
connecting the AC power supply cord.
5 connect the AC power supply cord after all
other cables and cords are connected.
