1_FJFJ
(Left) (Right)
100 mm

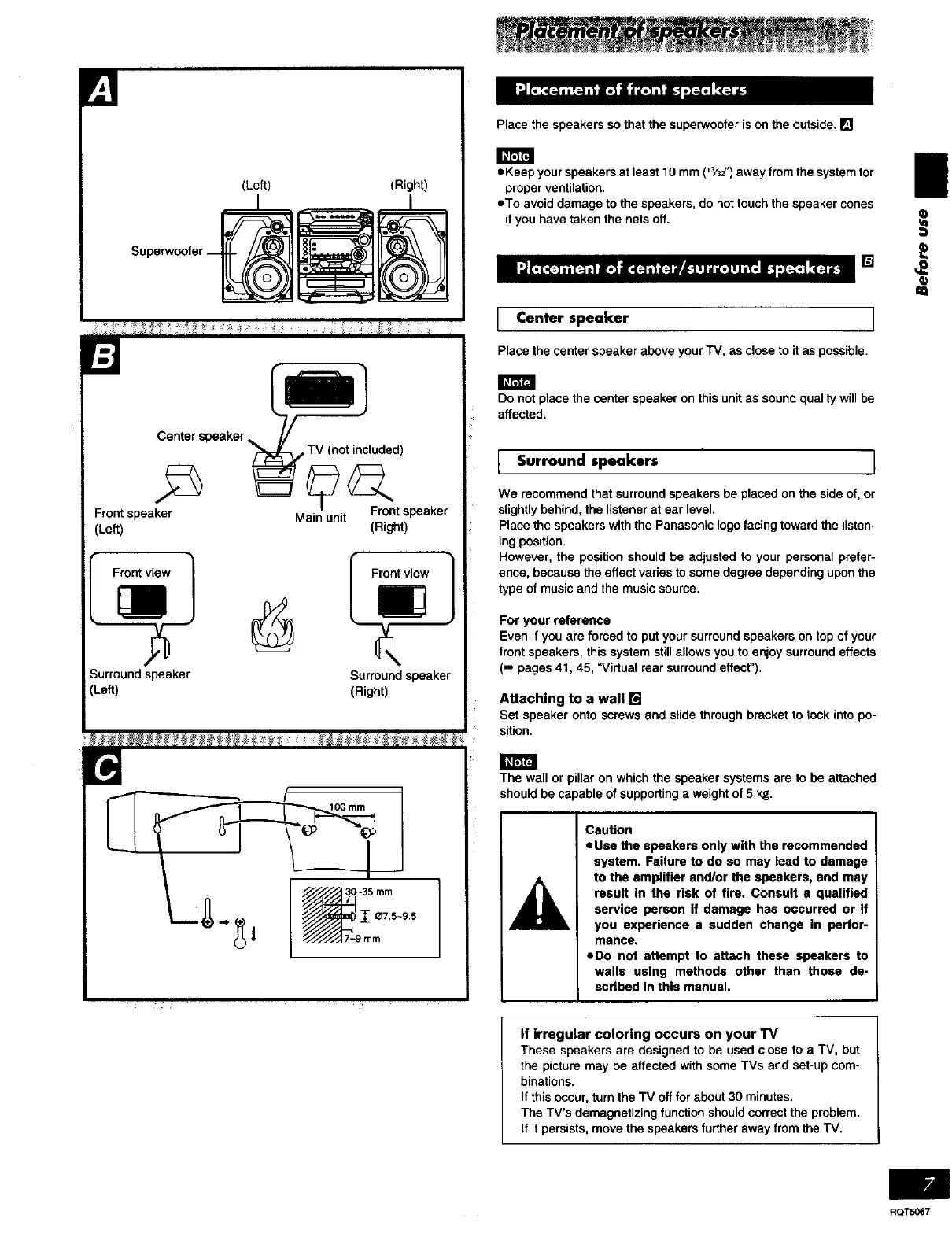

Place the speakers so that the superwoofer is on the outside. []
• Keep your speakers at least 10 mm (W3z')away from the system for
proper ventilation.
eTo avoid damage to the speakers, do not touch the speaker cones
if you have taken the nets off.
[]
Center speaker ]
Place thecenterspeakeraboveyour TV, as closeto itas possible.
Do not place the center speakeron this unit as soundquality will be
affected.
[ Surround speakers J
We recommend that surround speakers be placed on the side of, or
slightly behind, the listener at ear level.
Place the speakers with the Panasonic logo facing toward the listen-
ing position.
However, the position should be adjusted to your personal prefer-
ence, because the effect varies to some degree depending upon the
type of music and the music soume.
For your reference
Even if you are forced to put your surround speakers on top of your
front speakers, this system still allows you to enjoy surround effects
(1 pages 41,45, "Virtual rear surround effect").
Attaching to a wall []
Set speaker onto screws and slide through bracket to lock into po-
sition.
The wall or pillar on which the speaker systems are to be attached
should be capable of supporting a weight of 5 kg.
Caution
• Use the speakers only with the recommended
system. Failure to do so may lead to damage
to the amplifier and/or the speakers, and may
result in the risk of fire. Consult a qualified
service person if damage has occurred or If
you experience a sudden change in perfor-
mance.
• Do not attempt to attach these speakers to
wails using methods other than those de-
scribed in this manual.
If irregular coloring occurs on your TV
These speakers are designed to be used close to a TV, but
the picture may be affected with some TVs and set-up com-
binations.
If this occur, turn the TV off for about 30 minutes.
The TV's demagnetizing function should correct the problem.
If it persists, move the speakers further away from the TV.
¢j
==
RQTS067
