_Laser disc player (not included)
AUDIO
OUT
Rear panel
11o
' Aux
Video cassette recorder
(not included)
t
AUDIO AUOIO
OUT IN
Rearpanel
Record player (not included)
AUDIO
OUT
Rear panel
7
Rear panel

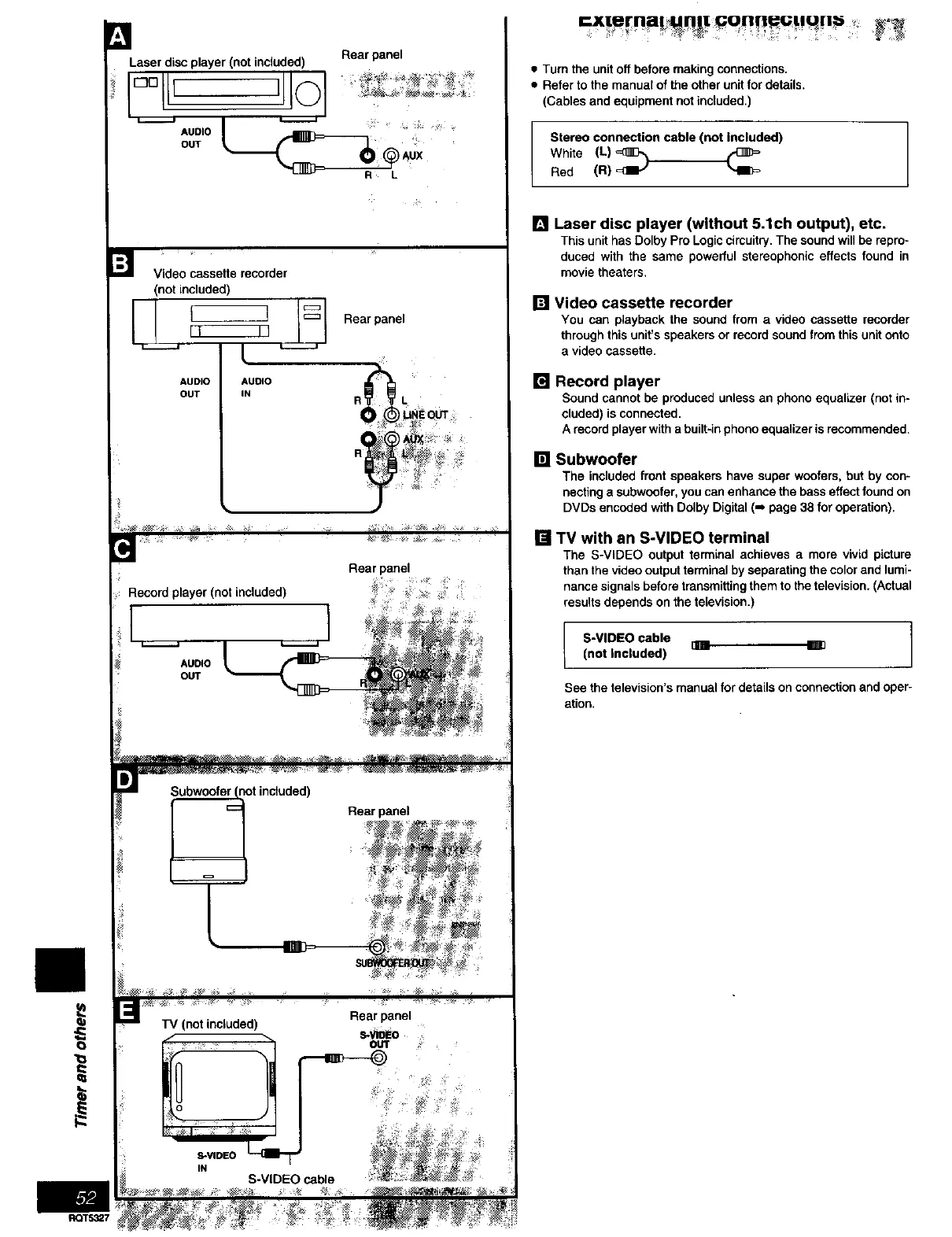

• Turn the unit off before making connections.
• Refer to the manual of the other unit for details.
(Cables and equipment not included.)
Stereo connection cable (not Included)
White (L)
Red (R) _
[] Laser disc player (without 5.1ch output), etc.
This unit has Dolby Pro Logic circuitP/. The sound will be repro-
duced with the same powerful stereophonic effects found in
movie theaters,
[] Video cassette recorder
You can playback the sound from a video cassette recorder
through this unit's speakers or record sound from this unit onto
a video cassette.
[] Record player
Soundcannotbe producedunlessan phonoequalizer(not in-
cluded)is connected.
A recordplayerwitha built-in phonoequalizeris recommended.
[] Subwoofer
The includedfrontspeakershave superwoofers,but by con-
nectinga subwoofer,youcanenhancethebasseffectfoundon
DVDs encodedwithDolbyDigital(=, page 38 foroperation),
[] TV with an S-VIDEO terminal
The S-ViDEO output terminal achieves a more vivid picture
than the video output terminal by separating the color and lumi-
nance signals before transmitting them to the television. (Actual
results depends on the television.)
S-VIDEO cable
:_
(not included)
See the television's manual for details on connection and oper-
ation.
