5. Install the safety holder.
4. Hang the unit on the wall.
Removing the unit from the wall
C
B
A
Remove safety holder screw and the safety holder.
Unmount the unit from the wall.
Unscrew fixing screw (2 pieces).
Hold down both the catches and then slide the wall bracket off
the unit (➡ right).
Reattach the stand to the bottom of the unit and secure it with
fixing screw (2 pieces).
Remove the mounting screw (2 pieces) from the wall.
Remove the fall-preventive wire before step if you are using it.•
C
Pen or a blunt object
Catches
Hook the unit securely onto the
mounting screws .
Connect the DAB antenna before hanging
the main unit on the wall (➡ page 4).
After hanging the unit, release your hand
carefully to confirm the unit sits securely on
the wall.
•
•
C
Slot both screws into this position firmly.
Wall
Wall bracket
Safety holder
Fixed to
the wall
Safety holder screw
C
Fix the safety holder onto the wall bracket.
Drive safety holder screw to secure the safety
holder onto the wall.
C
g Fall-preventive measure (Optional)
Metal fitting
Screw
Wire
Wire
Slot for
wire

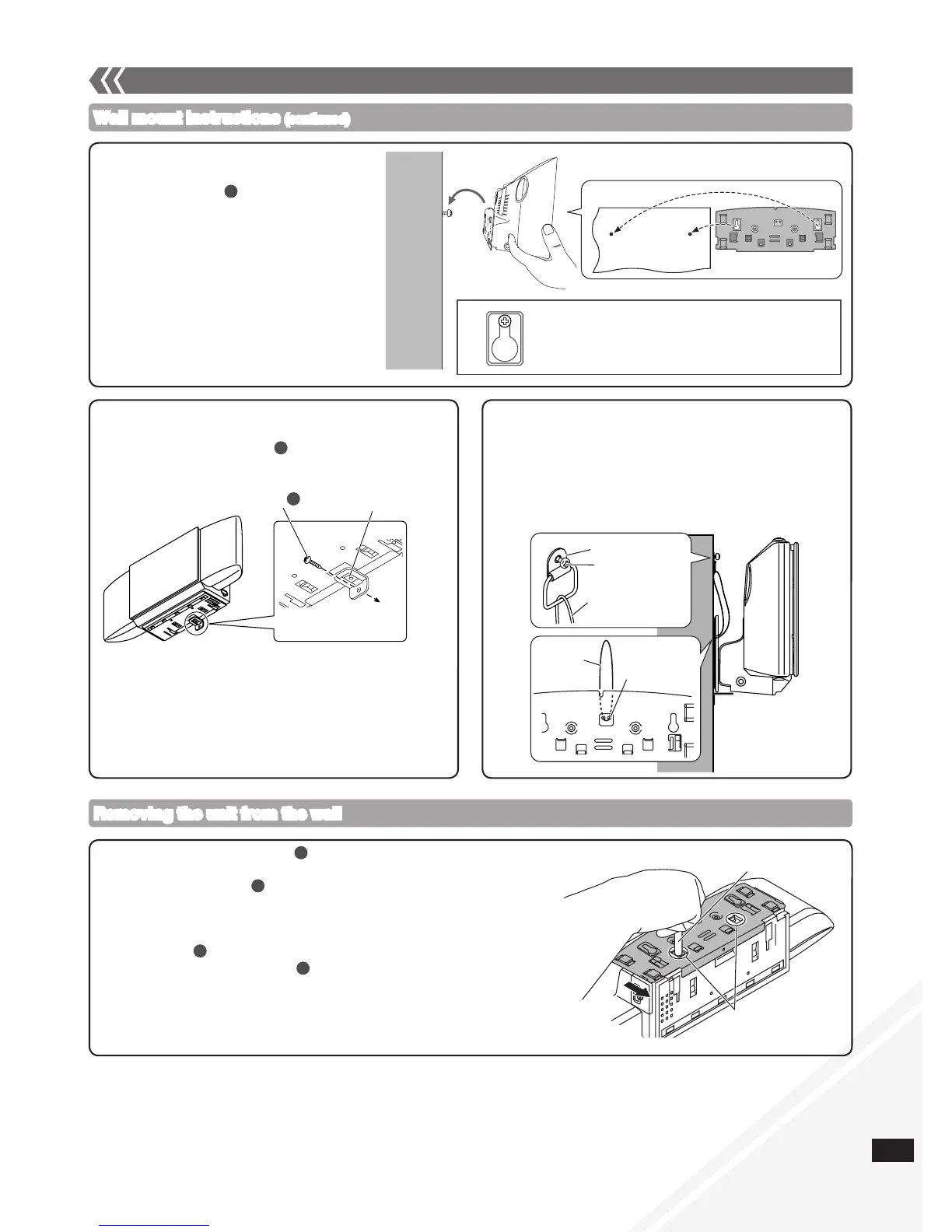

Wall mount instructions (continued)
Attaching the unit to a wall (Optional) (continued)
Thread a wire (commercially available) through the
slot on the wall bracket before step 4 (➡ above).
Fix the wire to the wall with a screw (commercially
available) after step 5 (➡ left).
Fix the screw to the wire so that a slack of no more than
5 cm is kept in the upper centre part of the main unit.
•
