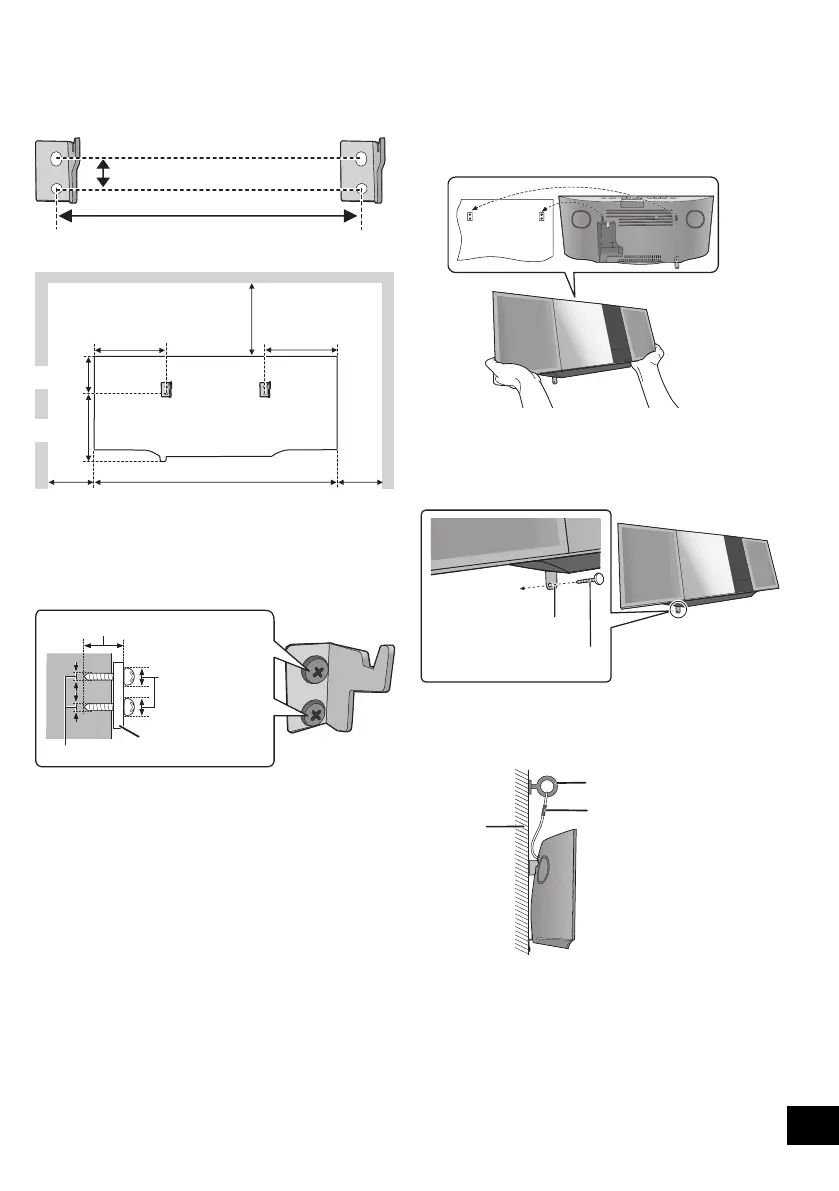

4 Measure and mark the position of both sides of the
wall mount brackets.
≥ Use figures below to identify the screwing positions.
The position to attach the wall mount brackets
Space required
5 Attach the wall mount bracket to both sides of the
wall with two screws (not supplied).
≥ Use a level to ensure both wall mount brackets are
level.
6 Hook the unit securely onto the wall mount
brackets with both hands.
≥ Connect the antenna(s) and the AC mains lead to the
unit before hanging the unit onto the wall. (l 5)
≥ After hanging the unit, release your hands carefully to
confirm the unit sits securely on the wall mount
brackets.
7 Drive the safety holder fixing screw (not supplied)
to secure the safety holder onto the wall.
≥ Refer to step 5 for requirements before screwing.
8 Attach the fall prevention cord (not supplied) to the
wall.
≥ Make sure that the slack of the cord is minimal.
204 mm
13 mm
500 mm
75 mm
142 mm 154 mm
100 mm
142 mm
300 mm
100 mm
At least 30 mm
‰7.5 mm to
‰9.4 mm
‰4 mm
Wall mount bracket
ュモャチモワヵバ
ョヮチモワヵ
ヘブ
Wall
Safety holder fixing screw
(not supplied)
Safety holder
Fix to the wall
Cord (not supplied)
Screw eye (not supplied)
Wall
SC-HC49DBGN&GN&GS~RQT9883-B.book 21 ページ ２０１４年２月２１日 金曜日 午前９時２６分

Panasonic SC-HC49DB Specifications

General

Type	Home audio micro system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Karaoke	-
Impedance	8 Ω
Speaker type	1-way
RMS rated power	40 W
Number of speakers	2
Mid-range driver diameter	65 mm
Total Harmonic Distortion (THD)	10 %
Supported radio bands	DAB, DAB+, FM
Disc types supported	CD, CD-R, CD-RW
Audio formats supported	MP3
Equalizer bands quantity	4
Power source	AC
Input voltage	220-240 V
Input frequency	50 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	37 W

Weight and Dimensions

Depth	92 mm
Width	500 mm
Height	205 mm
Weight	2500 g
