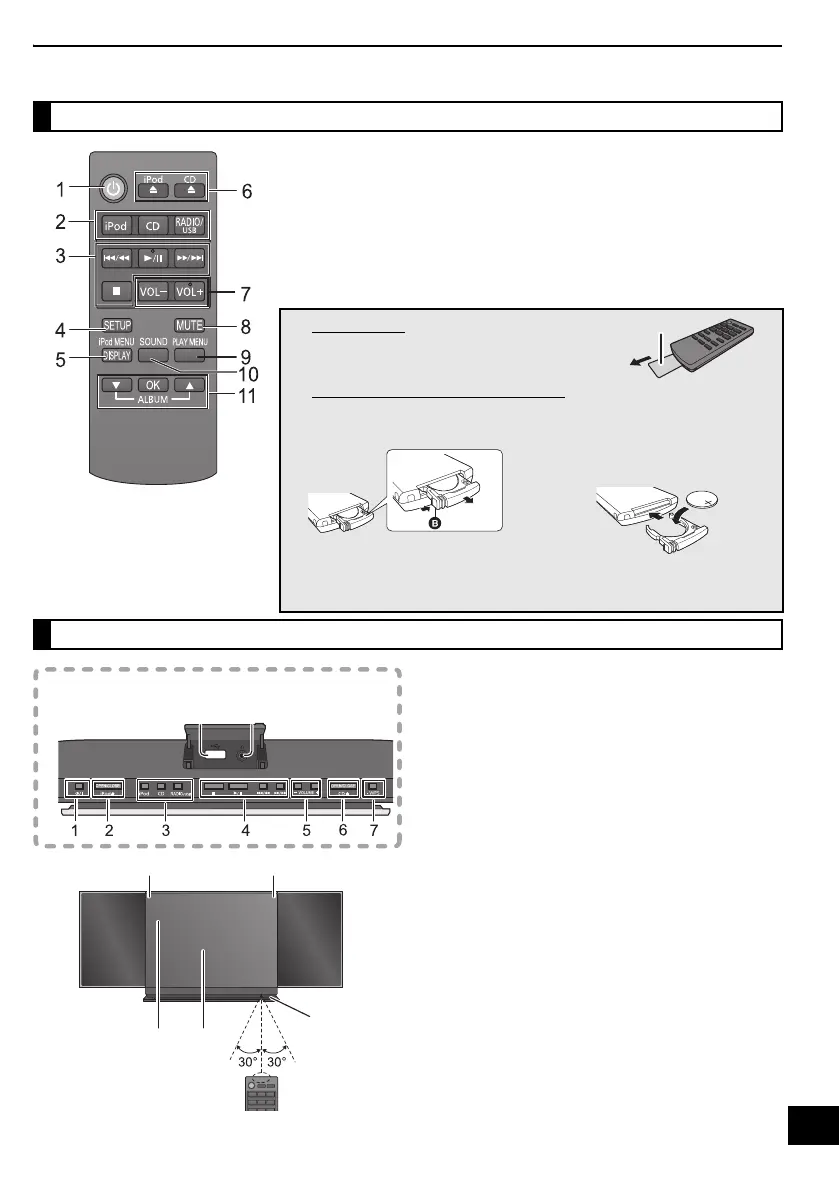

Control reference guide
Remote control
1 Turn this unit on or off
2 Select the audio source
3 Basic playback control buttons
4 Enter setup menu
5 Enter the iPod/iPhone menu /
Change displayed information
6 Open/close the sliding door
7 Adjust the volume
8 Mute the sound
Mutes the sound. Press again to
cancel. “MUTE” is also cancelled
when the volume is adjusted or the
unit is turned off.
9 Enter playback menu
10 Enter sound menu
11 Selection/OK
∫ Preparation
Remove the insulation sheet A before using.
∫ To replace a button-type battery
1 While pressing the stopper B,
pull out the battery holder.
2 Set the button-type battery with
its (i) mark facing upward and
then put the battery holder back
in place.
Keep the button-type battery out of
reach of children to prevent
swallowing.
Battery type: CR2025 (Lithium battery)
≥ The battery should normally last about 1 year, however this depends on how
frequently the unit is used.
Main unit
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small
amount of power.
2 Open/close the sliding door (for iPod/iPhone)
3 Select the audio source
4 Basic playback control buttons
5 Adjust the volume (0 (min) to 50 (max))
6 Open/close the sliding door (for discs)
7 WPS pairing button (> 11)
8 Headphone jack
Plug type: ‰3.5 mm stereo
Recommended plug type: Straight Plug
≥ Listening at full volume for long periods may damage
the user’s ears.
≥ Excessive sound pressure from earphones and
headphones can cause hearing loss.
9 USB port
10 Standby indicator
11 Wi-Fi
®
status indicator
12 Display
13 Sliding door
14 Remote control signal sensor
Distance:
Within approx. 7 m directly in front.
≥ To avoid interference, please do not put any objects in
front of signal sensor.
