14
TQBJ2019
Additionally required accessories (commercially available)
≥Fall prevention cord ..................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord)............................................................................. k 2
≥ Use commercially available screws that are capable of supporting over 24 kg.
≥ Use a cord that is capable of supporting over 24 kg (with a diameter of about 1.5 mm).

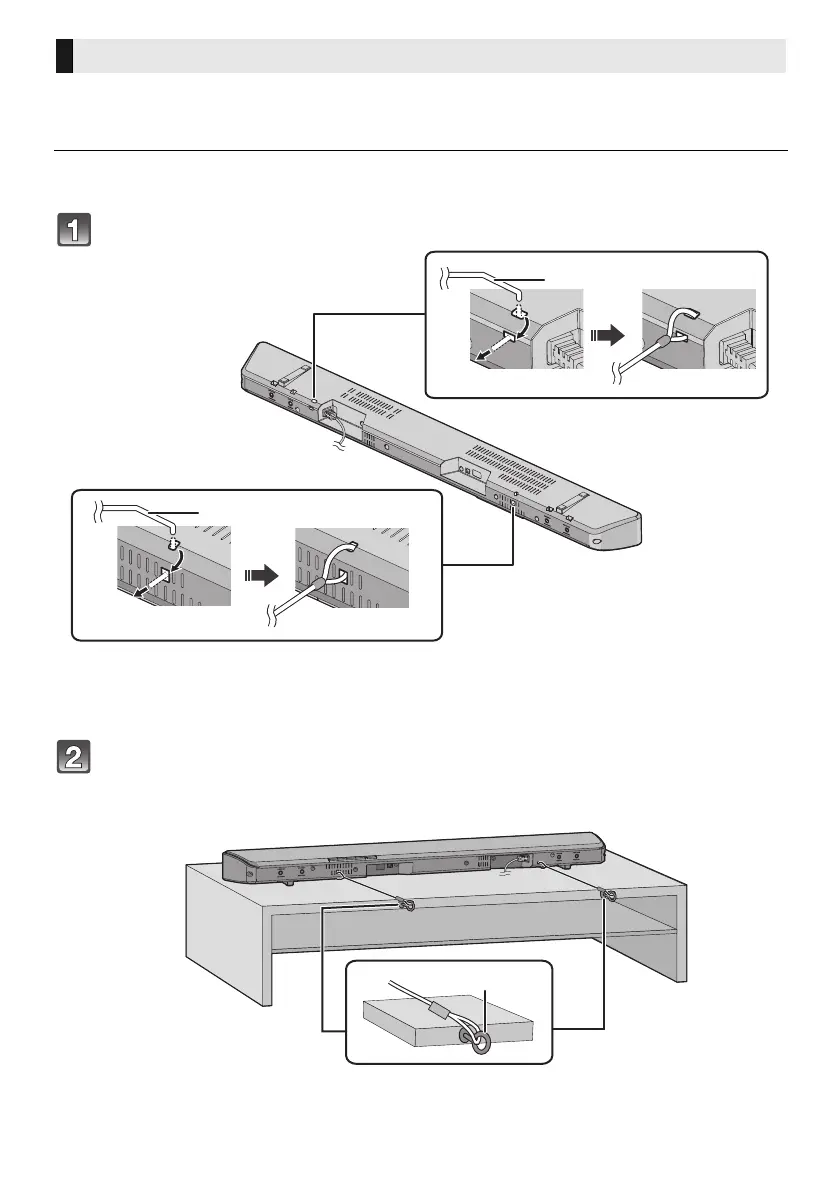

Attach the cord to the main unit.
A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord,
about 5 mm apart from the tip, at an angle of 45
o
(as
illustrated above).
Place the main unit in the desired position and attach each cord onto the
rack or table.
≥ Make sure that the slack of the cord is minimal.
≥ Do not lean the main unit against the TV or wall.
B Screw eye
≥ Attach at a position capable of supporting over 24 kg.
≥ Depending on the placement of the main unit, the screwing position of the screw eye may differ.
When placing the main unit in a rack or on a table
SC-HTB488_688_EGEBGN_TQBJ2019.book 14 ページ ２０１７年３月８日 水曜日 午後５時１７分
