Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of this system ( 19)
3 Select the input source ( 19)
“ HDMI (ARC) ” # “ OPTICAL ” # “ ” (Bluetooth
®
)
^---------------------------------------------------------------}
4 Select the Bluetooth
®
device as the source
( 19)
Bluetooth
®
pairing ( 18)
Disconnecting a Bluetooth
®
device ( 18)
5 Remote control signal sensor
6 Sound mode indicators
Lights when the corresponding sound mode is
selected
A STANDARD indicator
B MUSIC indicator
C CINEMA indicator
D NEWS indicator
E VOICE indicator
7 SURROUND indicator
Lights when the surround effect is activated
8 HDMI (ARC) indicator
Lights when the device connected to the
HDMI (ARC) terminal is the audio source
9 OPTICAL indicator
Lights when the device connected to the
OPTICAL DIGITAL AUDIO IN terminal is the
audio source
10 (Bluetooth
®
) indicator
Lights when the Bluetooth
®
device is the
audio source
11 WIRELESS LINK indicator ( 18)

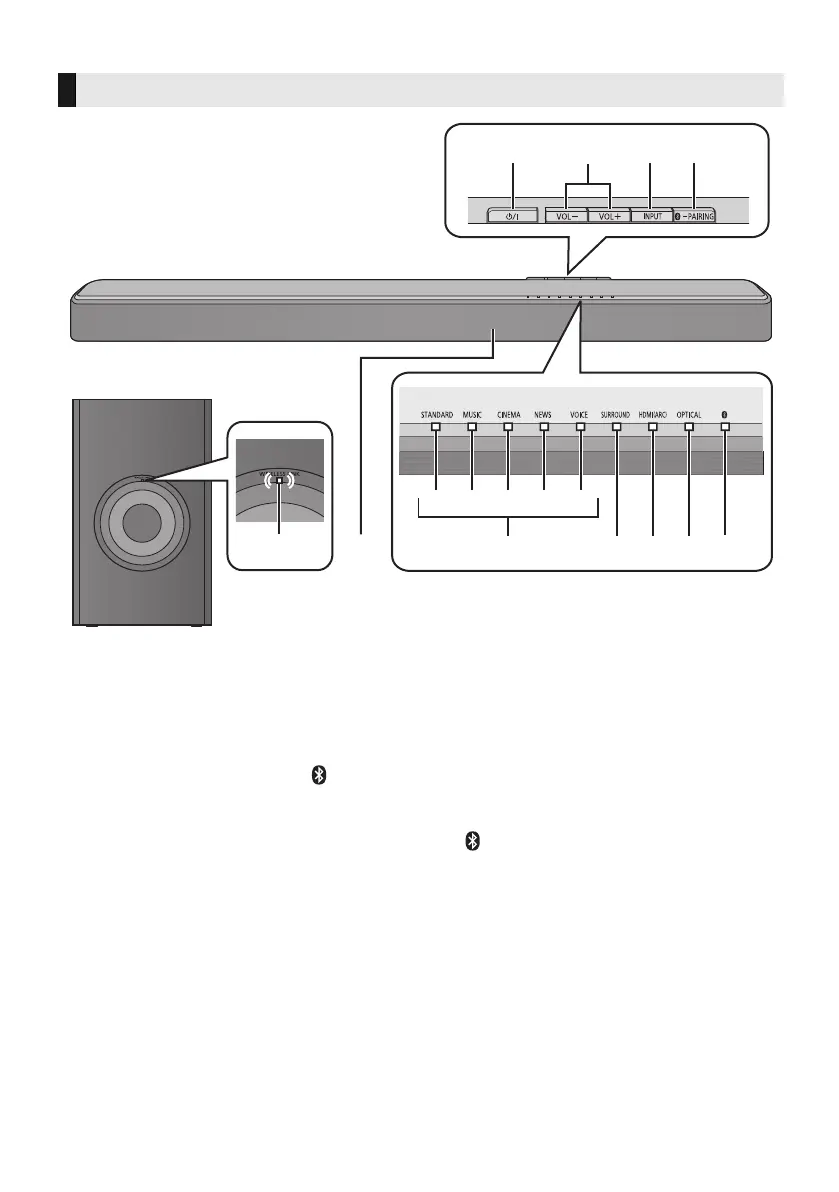

This system (Front)
2341
768910
ABCDE
11
5
Main unit
Active subwoofer
