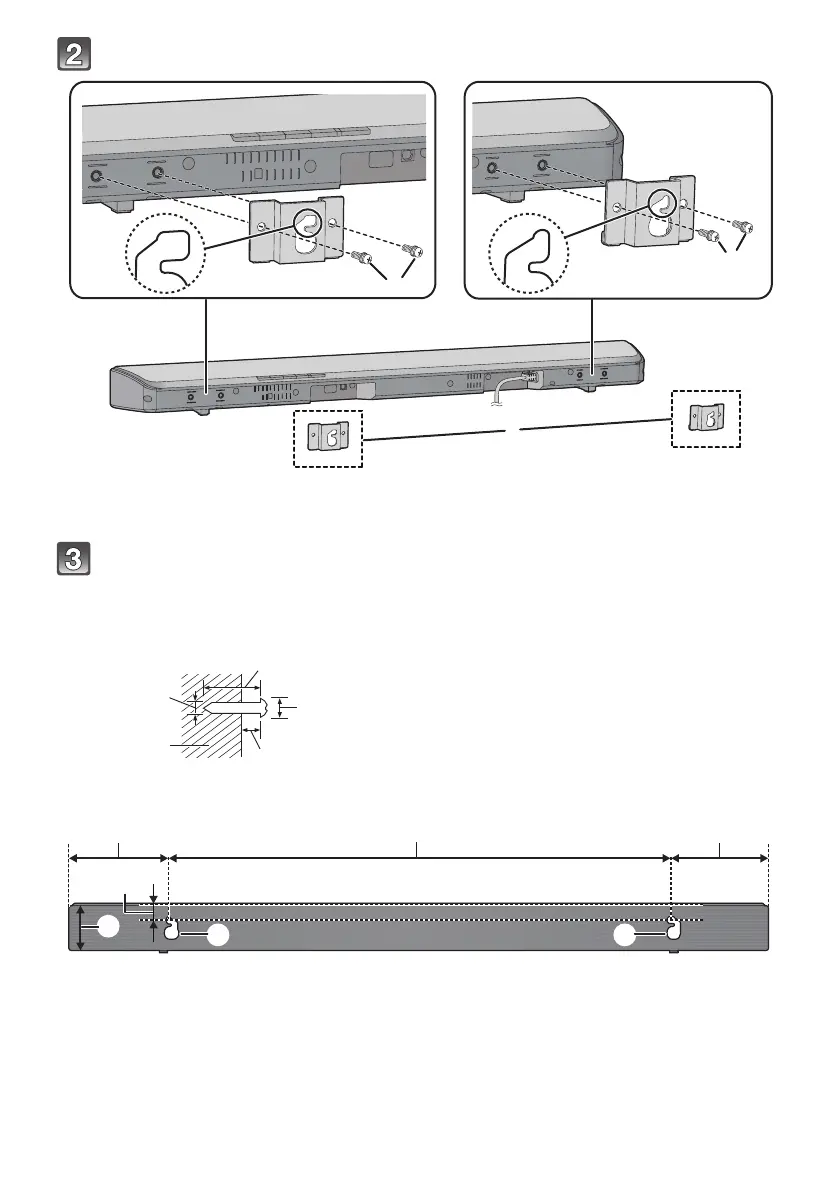

Attach the wall mount brackets to the main unit.
A Wall mount bracket (supplied)
B Screw (supplied)
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.
≥ Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
C At least 30 mm
D ‰4.0 mm
E ‰7.0 mm to ‰9.4 mm
F Wall or pillar
G 2.5 mm to 3.5 mm
H 616 mm I 118 mm J 118 mm
K 28 mm L 60.5 mm M Wall mounting hole

















