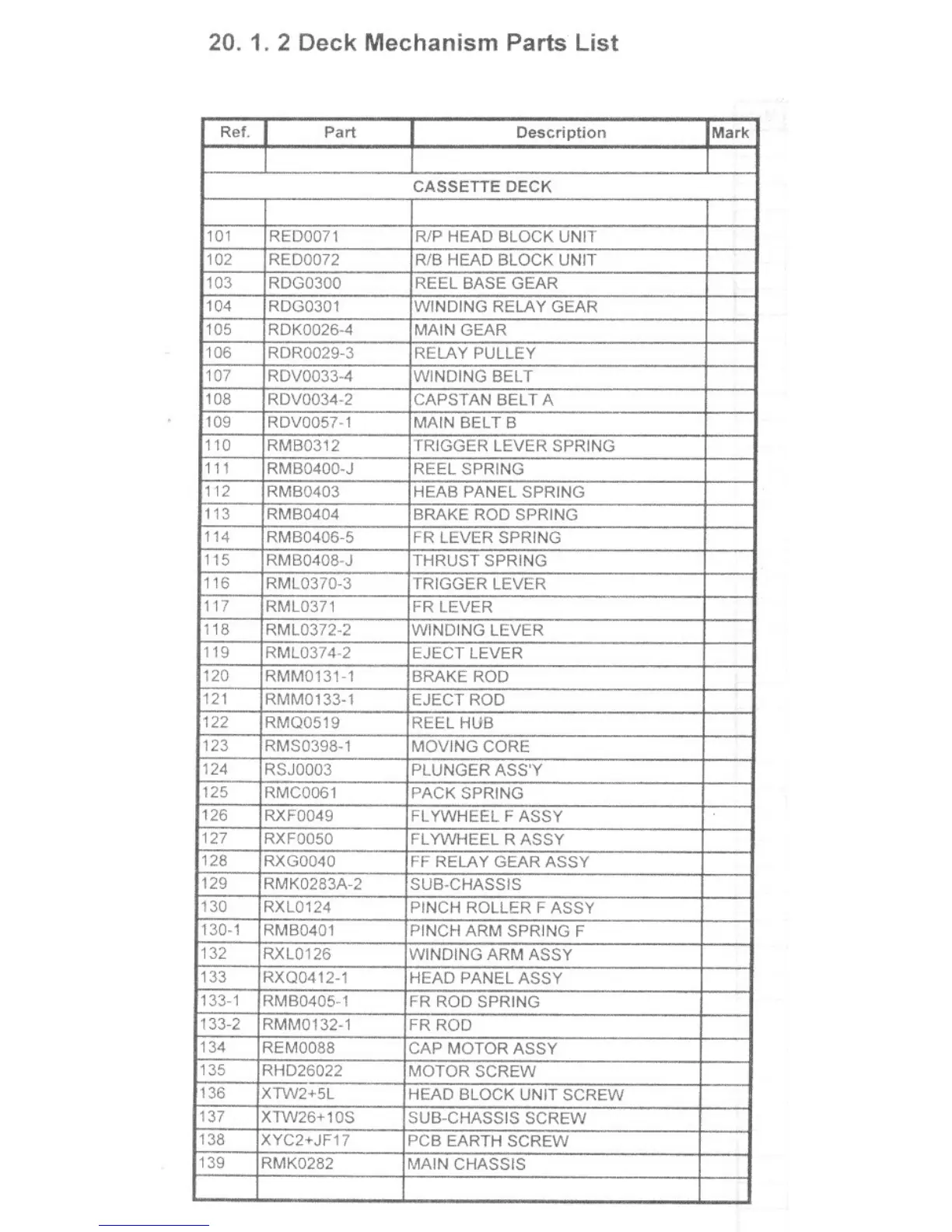

Panasonic SC-TM31 - DECK MECHANISM PARTS LIST; Cassette Deck Components

20. 1. 2 Deck Mechanism París List
Ret. I
Part
I
Description
Mark
CASSETTE DECK
101
REDO071 R/P HEAD BLOCK UNIT
102 REDOO72 R/B HEAD BLOCK UNIT
103
RDG0300 REEL BASE GEAR
104
RDG0301 WINDING RELAY GEAR
105 RDKO026-4
MAIN GEAR
106 RDRO029-3
RELAy PULLEY
107 RDVO033-4
WINDING BELT
108 RDVO034-2 CAPSTAN BELT A
109 RDVO057 -1 MAIN BELT B
110 RMB0312
TRIGGER LEVER SPRING
111
RMB0400-J
REEL SPRING
112 RMB0403
HEAB PANEL SPRING
113 RMB0404
BRAKE ROD SPRING
114 RMB0406-5
FR LEVER SPRING
115
RMB0408-J
THRUST SPRING
116
RML0370-3 TRIGGER LEVER
117
RML0371 FR LEVER
118
RML0372-2 WINDING LEVER
119
RML0374-2 EJECT LEVER
120 RMMO131-1
BRAKE ROD
121
RMMO133-1 EJECT ROD
122
RMQ0519 REEL HUB
123
RMS0398-1 MOVING CORE
124
RSJOO03
PLUNGER ASS'Y
125
RMCO061
PACK SPRING
126
RXFO049
FLYWHEEL F ASSY
127 RXFO050
FLYWHEEL R ASSY
128 RXGO040
FF RELAY GEAR ASSY
129
RMK0283A-2 SUB-CHASSIS
130
RXLO124
PINCH ROLLER F ASSY
130-1
RMB0401 PINCH ARM SPRING F
132
RXLO126 WINDING ARM ASSY
133
RXQ0412-1 HEAD PANEL ASSY
133-1
RMB0405-1 FR ROD SPRING
133-2 RMM0132-1
FR ROD
134
REMO088 CAP MOTOR ASSY
135
RHD26022
MOTOR SCREW
136
XTW2+5L
HEAD BLOCK UNIT SCREW
137
XTW26+10S
SUB-CHASSIS SCREW
138
XYC2+JF17
PCB EARTH SCREW
139
RMK0282
MAIN CHASSIS
