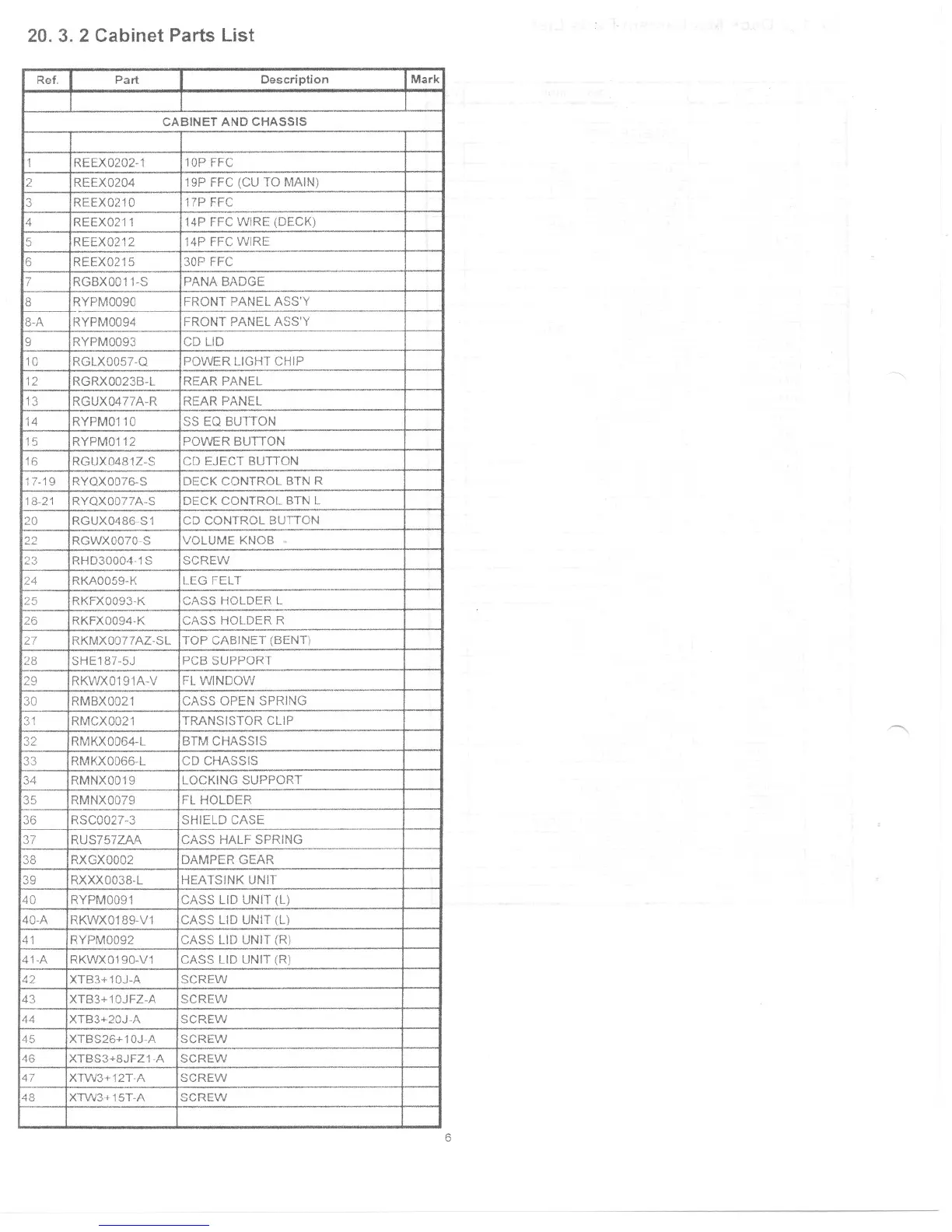

20. 3. 2 Cabinet París List
6
""
~
Ret. I
Part
I
Oescription
IMark
I I
I
CABINET ANO CHASSIS
1
REEXO202-1
10P FFC
2
REEXO204
19P FFC (CL!TO MAIN)
3 REEXO210 17P FFC
4
REEXO211
14P FFC WIRE (DECK)
5
REEX0212 14P FFC WIRE
6 REEX0215 30P FFC
7 RGBXQ011-S PANA BADGE
-
S
RYPMO090 FRONT PANEL ASS'Y
S-A
RYPMO094
FRONT PANEL ASS'Y
9 RYPMOO93 CD LID
10
RGLXOO57-Q
POWER LlGHT CHIP
12
RGRXOO23B-L REAR PANEL
13 RGL!XO477A-R
REAR PANEL
14
RYPMO110 SS EQ BUTTON
15 RYPMO112 POWER BUTTON
16 RGUX0481Z-S CD EJECT BUTTON
17-19 RYQXO076-S DECK CONTROL STN R
18-21
RYQXOO77A-S
DECK CONTROL BTN L
--
20
RGUX0486-S1
CD CONTROL BUTTON
22
RGWXO070-S
VOLUME KNOB
.
23
RHD30004-1S
SCREW
24
RKAOO59-K
LEG FEL T
..
25 RKFXOO93-K CASS HOLDER L
26 RKFXO094-K CASS HOLDER R
27 RKMXOO77 AZ-SL
TOP CABINET (BENT)
28 SHE187-5J PCB SUPPORT
29 RKWX0191A-V FL WINDOW
30 RMBXO021 CASS OrEN SPRING
31 RMCXOO21
TRANSISTOR CLIP
32
RMKXO064-L
BTM CHASSIS
33 RMKXO066L CD CHASSIS
34
RMNXOO19 LOCKING SUPPORT
35
RMNXOO79
FL HOLDER
-
36 RSCOO27-3 SHIELD CASE
--- -
37 RUS757ZAA CASS HALF SPRING
38 RXGXOOO2 DAMPER GEAR
39 RXXXOO38-L
HEATSINK UNIT
40
RYPMOO91
CASS LID UNIT (L)
40-A
RKWXO189-V1
CASS LID UNIT (L)
41 RYPMO092
CASS LID UNIT (R)
41-A RKWXO190-V1
CASS LID UNIT (R)
42
XTB3+1OJ-A
SCREW
43
XTB3+1OJFZ-A SCREW
44
XTB3+20J-A SCREW
45 XTBS26+10J-A SCREW
46 XTBS3+8JFZ1-A SCREW
-
47 XTW3+12T-A SCREW
48 XTW3+15T-A SCREW
-
