Panasonic SC-TM910DVD - Disc Playback Capabilities; Supported Disc Formats

Overall Frequency Response (+3, -6 dB) at DECK OUT
Normal 35 Hz to 14 kHz
S/N Ratio 50 dB (A weighted)
Wow and Flutter 0.18% (WRMS)
Fast Forward and Rewind Time Approx. 120 seconds with
C-60 cassette tape
n DISC SECTION
Disc played [8 cm or 12 cm]
(1) DVD (DVD-Video, DivX
#1,#2
)
(2) DVD-RAM (DVD-VR, JPEG
# 2,#3
, MP3
# 2,#4
, MPEG4
# 2,#5
, DivX
# 1,#2
)
(3) DVD-R (DVD-Video, DVD-VR, JPEG
# 2,#3
, MP3
# 2,#4
, MPEG4
# 2,#5
,
DivX
# 1,#2
)
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, JPEG
# 2,#3
, MP3
# 2,#4
, MPEG4
#
2,#5
, DivX
# 1,#2
)
(6) +R/ +RW (Video)
(7) +R DL (Video)
(8) CD,CD-R/RW [CD-DA, Video CD, SVCD
#6
, MP3
# 2,#4
, WMA
# 2,#7
,
JPEG
# 2,#3
, MPEG4
# 2,#5
, DivX
# 1,#2
, HighMAT Level 2 (Audio and
Image)]
#1
Plays all versions of DivX
®
video (including DivX
®
6) with standard
playback of DivX
®
media files. Certified to the DivX Home Theater
Profile. GMC (Global Motion Compensation) is not supported.
#2
The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.
#3
Exif Ver 2.1 JPEG Baseline files
Picture resolution: between 160 x 120 and 6144 x 4096 pixels
(Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and
narrow pictures may not be displayed.
#4
MPEG-1 Layer 3, MPEG-2 Layer 3
#5
MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders.
Conforming to SD VIDEO specifications (ASF standard) / MPEG4
(Simple Profile) video system / G.726 audio system
#6
Conforming to IEC62107
#7
Windows Media Audio Ver. 9.0 L3
Not compatible with Multiple Bit Rate (MBR)
Pick up
Wavelength (DVD/CD) 662 nm/785 nm
Laser power (DVD/CD) CLASS 1 / CLASS 1M
Audio output (Disc)
Number of channels (FL,FR,C,SL,SR,SW),5.1ch
Audio performance (measurement at: Rec out terminal)
Frequency response (CD-Audio) 4Hzto20kHz
n VIDEO SECTION
Video system
Signal system PAL625/50, PAL525/60, NTSC
(For GC, GS & GCT only)
NTSC, PAL525/60, PAL625/50
(For GCS only)
Composite video output
Output level 1 Vp-p (75 Ω)
Terminal Pinjack(1system)
S-video output
Y output level 1 Vp-p (75 Ω)
C output level 0.3Vp-p(75Ω) (PAL)
0.286 Vp-p (75 Ω)(NTSC)
Terminal S terminal (1 system)
Component video output
[NTSC : 480p / 480i, PAL: 576p / 576i]
Y output level 1Vp-p(75Ω)
P
B
output level 0.7 Vp-p (75 Ω)
P
R
output level 0.7 Vp-p (75 Ω)
Terminal
Pin jack (Y: green, P
B
:blue,P
R
:red)(1system)
n GENERAL
Power supply
For GC only AC 220 to 240 V, 50/60Hz
For GCS/GS/GCT only AC 110 to 127V/220 to 240 V,
50/60Hz
Power consumption 360 W
Power consumption in standby mode:
0.5 W (approximate)
Dimensions (W x H x D) 250 x 330 x 334.6 mm
Mass 5.5 kg
Operating temperature range +5to+35°C
Operating humidity range 5% to 90% RH (no condensation)

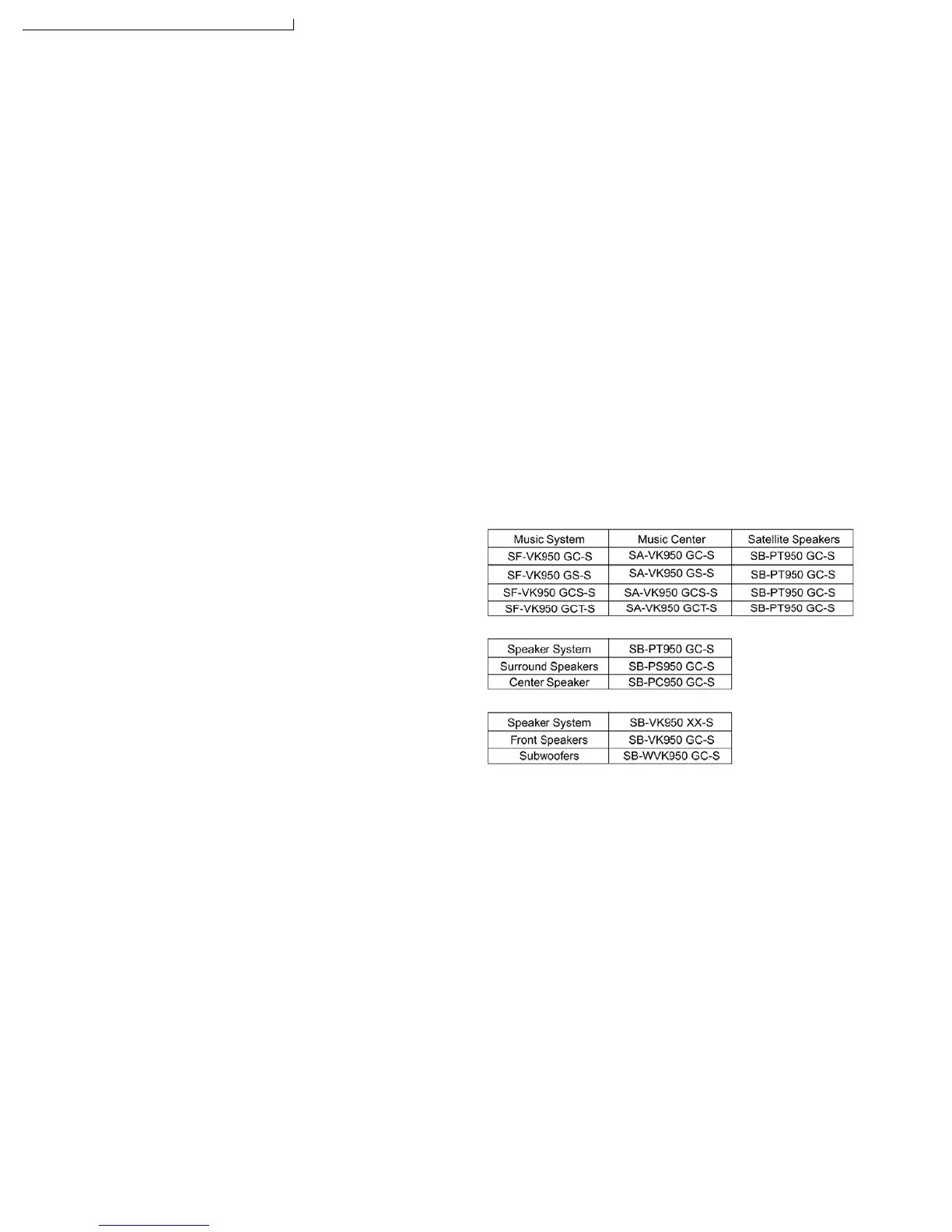

n SYSTEM
For information on speaker system, please refer to the original
Service Manual (Order No. MD0605195C3) for SB-VK950GC-S,
(Order No. MD0605194C3) for SB-PC950GC-S, (Order No.
MD0605199C3) for SB-PS950GC-S & (Order No. MD0605200C3) for
SB-WVK950GC-S..
