Panasonic SC-TM910DVD - Rear Panel Removal

• Disassembly of Mecha Chassis

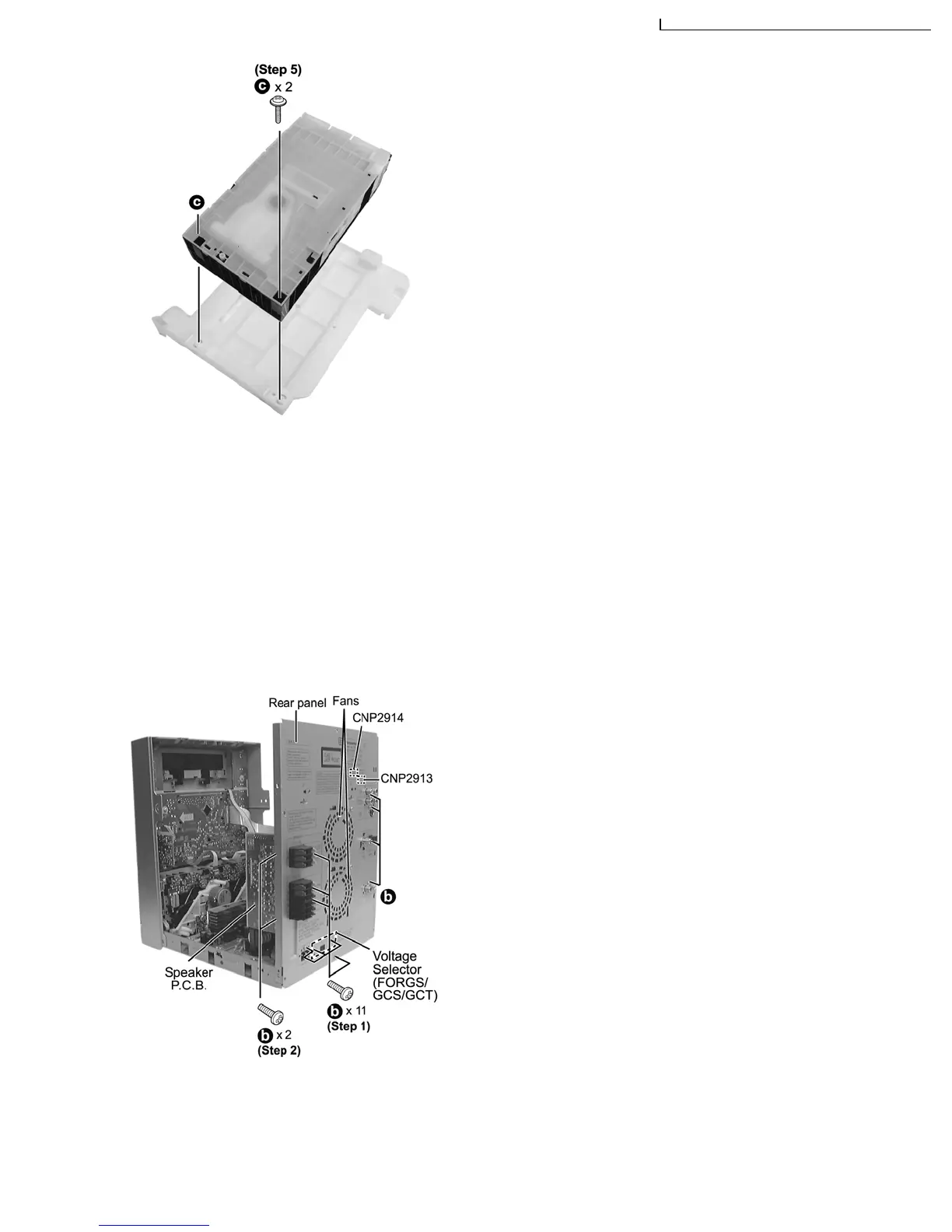

Step 1 Remove 11 screws (For GS/GCS/GCT).
Remove 9 screws (For GC).
* The differentiate the screws for the GC with GS/GCS/GCT,
just because of the Voltage Selector.
Step 2 Remove 2 screws at Speaker P.C.B..
Step 3 Detach the fan wires CNP2913 & CNP2914 from Main
P.C.B..
Step 4 Remove rear panel.
Step 5 Remove 2 screws.
Step 6 Remove the Mecha Chassis.
Note:
For disassembly & assembly of traverse unit, please refer to
section 11.16 of this service manual. Please refer to original
Service Manual for the Disassembly and Assembly of the
CD/DVD Changer Unit (CRS1D), section 5.
11.6. Disassembly of Rear Panel
• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
• Follow the (Step 1) - (Step 4) of Item 11.5 - Disassembly of CD/DVD Changer Unit
